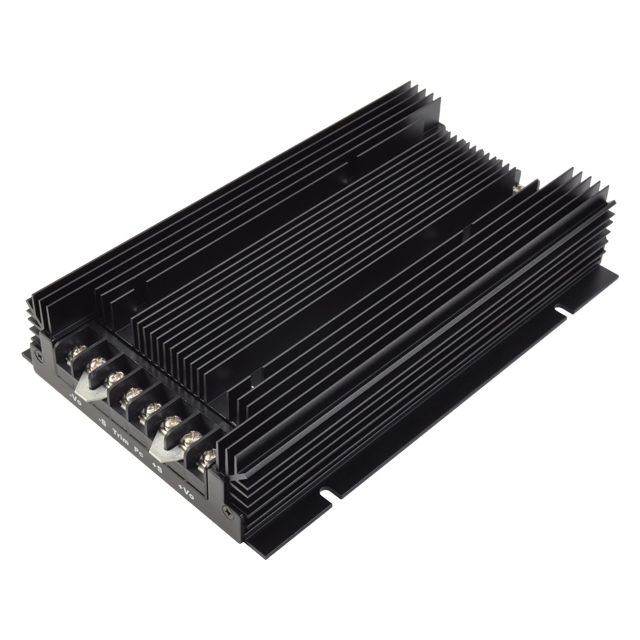

VFK600 Series

Manufacturer: CUI Inc.

Catalog

DC/DC CONVERTER 48V 600W

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Type	Current - Output (Max) [Max]	Voltage - Output 1	Efficiency	DC Voltage - Input (Min) [Min]	Approval Agency	Input Type	DC Voltage - Input (Max) [Max]
CUI Inc. VFK600-D48-S48	Chassis Mount	-40 C	100 °C	4.99 in	126.8 mm	7.84 in	39.1 mm	199.1 mm	1.54 in	36 V	600 W	75 V	1	Enclosed	12.5 A	48 V	92 %

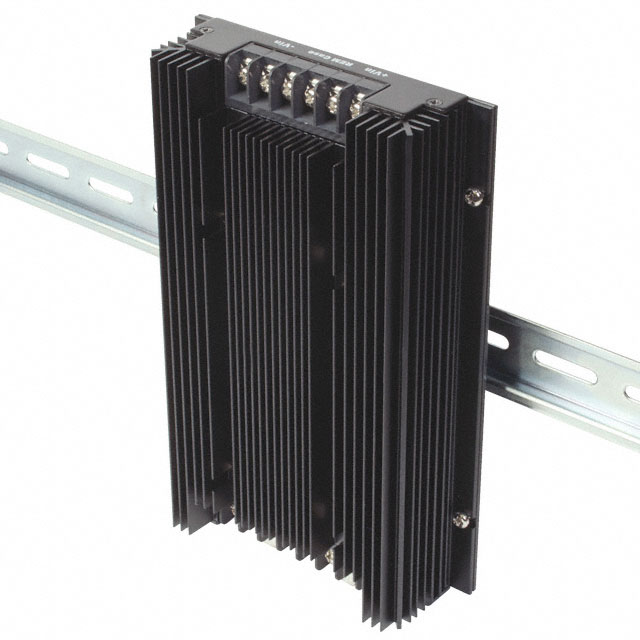

CUI Inc. VFK600-D24-S32-DIN		-40 C	85 °C	5 in	5 in	7.83 in	53.6 mm	198.9 mm	2.11 in		608 W		1		19 A	32 V	91 %	18 V	CE	DC	36 V
CUI Inc. VFK600-D48-S48-DIN		-40 C	85 °C	5 in	5 in	7.83 in	53.6 mm	198.9 mm	2.11 in		600 W		1		12.5 A	48 V	92 %	36 V	CE	DC	75 V
CUI Inc. VFK600-D48-S12	Chassis Mount	-40 C	100 °C	4.99 in	126.8 mm	7.84 in	39.1 mm	199.1 mm	1.54 in	36 V	600 W	75 V	1	Enclosed	50 A	12 V	90 %
CUI Inc. VFK600-D24-S28	Chassis Mount	-40 C	100 °C	4.99 in	126.8 mm	7.84 in	39.1 mm	199.1 mm	1.54 in	18 V	600 W	36 V	1	Enclosed	21.5 A	28 V	90 %
CUI Inc. VFK600-D24-S12-DIN		-40 C	85 °C	5 in	5 in	7.83 in	53.6 mm	198.9 mm	2.11 in		600 W		1		50 A	12 V	89 %	18 V	CE	DC	36 V
CUI Inc. VFK600-D48-S28-DIN		-40 C	85 °C	5 in	5 in	7.83 in	53.6 mm	198.9 mm	2.11 in		700 W		1		25 A	28 V	91 %	36 V	CE	DC	75 V
CUI Inc. VFK600-D48-S28	Chassis Mount	-40 C	100 °C	4.99 in	126.8 mm	7.84 in	39.1 mm	199.1 mm	1.54 in	36 V	700 W	75 V	1	Enclosed	25 A	28 V	91 %
CUI Inc. VFK600-D48-S32-DIN		-40 C	85 °C	5 in	5 in	7.83 in	53.6 mm	198.9 mm	2.11 in		608 W		1		19 A	32 V	92 %	36 V	CE	DC	75 V
CUI Inc. VFK600-D48-S24	Chassis Mount	-40 C	100 °C	4.99 in	126.8 mm	7.84 in	39.1 mm	199.1 mm	1.54 in	36 V	600 W	75 V	1	Enclosed	25 A	24 V	91 %
