M50100 Series

Catalog

BRIDGE RECT 3P 1.2KV 100A MODULE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Technology	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max)	Diode Type	Package / Case	Supplier Device Package	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Voltage - Off State	Structure	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]

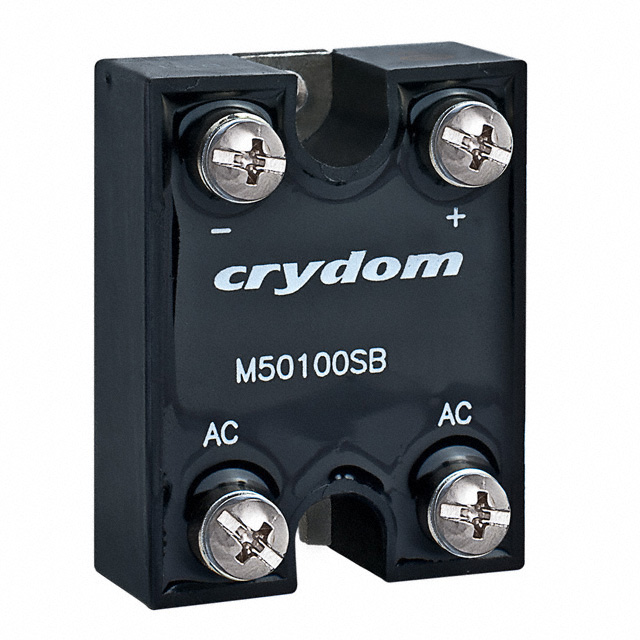

Sensata-Crydom M50100TB1200	-40 C	125 °C	100 A	Standard	1.2 V	1.2 kV	Three Phase	Module	Module	Chassis Mount

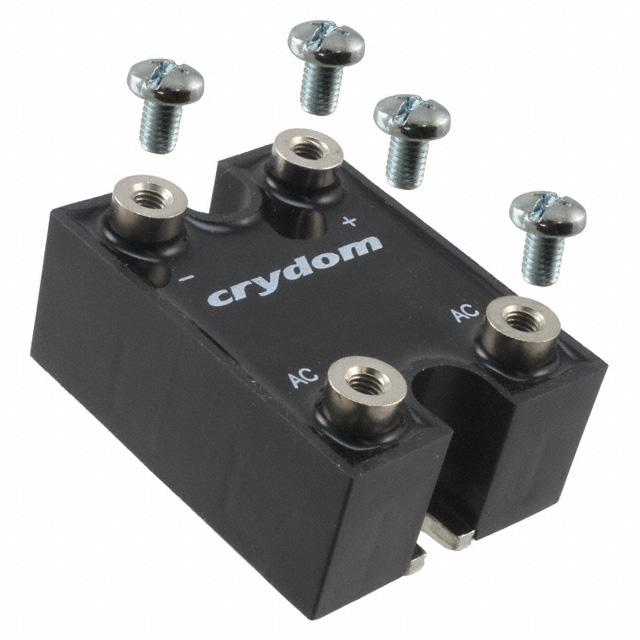

Sensata-Crydom M50100SB600	-40 C	125 °C	100 A	Standard	1.2 V		Single Phase	Module	Module	Chassis Mount	600 V
Sensata-Crydom M50100SB1600	-40 C	125 °C	100 A	Standard	1.2 V	1.6 kV	Single Phase	Module	Module	Chassis Mount
Sensata-Crydom M50100SB1200	-40 C	125 °C	100 A	Standard	1.2 V	1.2 kV	Single Phase	Module	Module	Chassis Mount

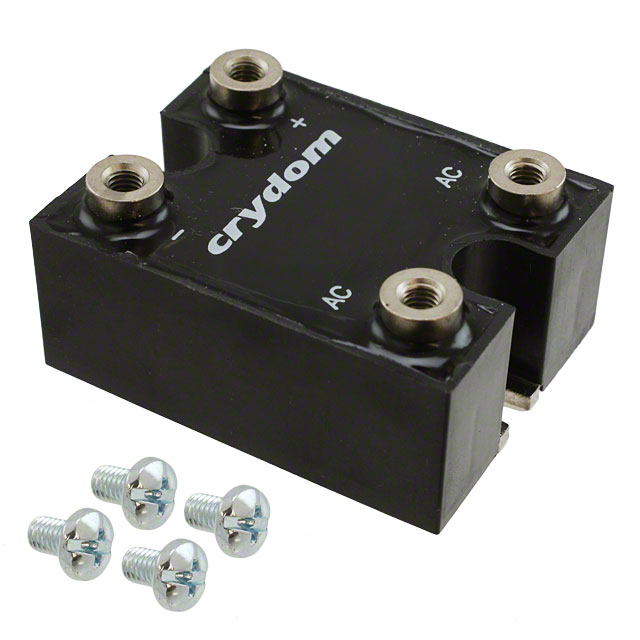

Sensata-Crydom M50100SB400	-40 C	125 °C	100 A	Standard	1.2 V		Single Phase	Module	Module	Chassis Mount	400 V
Sensata-Crydom M50100TB600	-40 C	125 °C	100 A	Standard	1.2 V		Three Phase	Module	Module	Chassis Mount	600 V	2	2	600 V	Bridge Single Phase - SCRs/Diodes (Layout 2)	1500 A	150 mA	50 A
Sensata-Crydom M50100SB800	-40 C	125 °C	100 A	Standard	1.2 V	800 V	Single Phase	Module	Module	Chassis Mount
Sensata-Crydom M50100TB1000	-40 C	125 °C	100 A	Standard	1.2 V		Three Phase	Module	Module	Chassis Mount	1 kV
Sensata-Crydom M50100TB400	-40 C	125 °C	100 A	Standard	1.2 V		Three Phase	Module	Module	Chassis Mount	400 V
Sensata-Crydom M50100TB800	-40 C	125 °C	100 A	Standard	1.2 V	800 V	Three Phase	Module	Module	Chassis Mount
