1274563 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

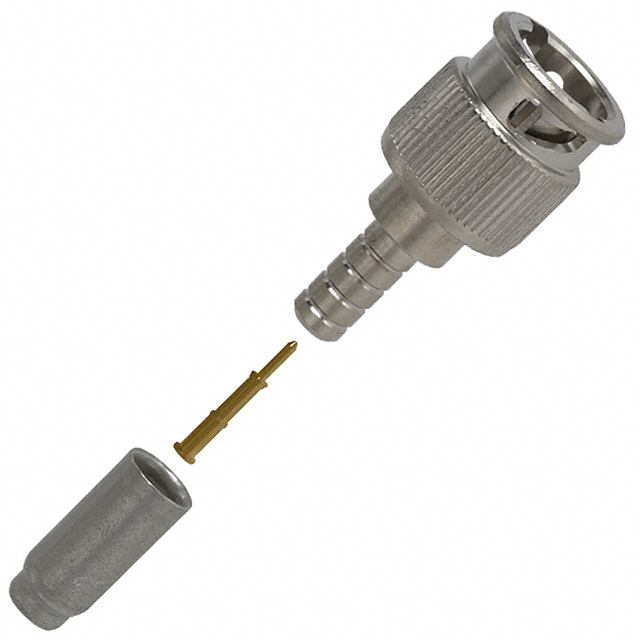

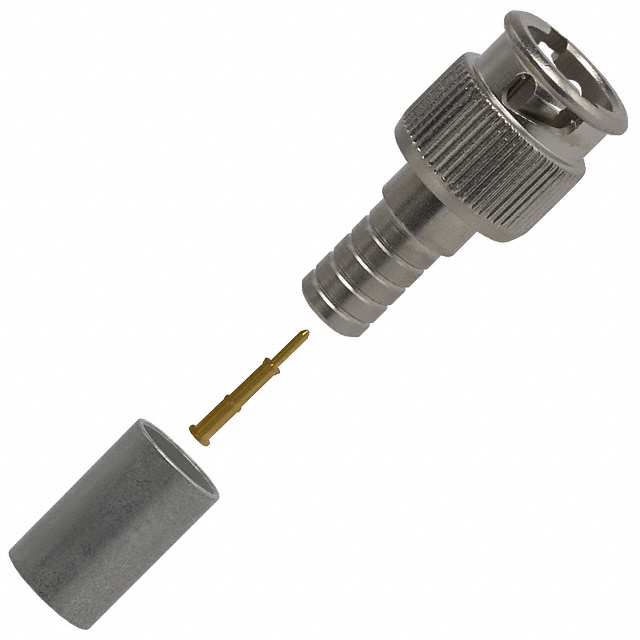

CONN MINI BNC PLG STR 75 OHM
| Part | Center Contact Plating | Dielectric Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Body Material | Voltage Rating | Body Finish | Mounting Type | Frequency - Max [Max] | Connector Style | Cable Group | Fastening Type | Impedance | Connector Type | Contact Termination | Shield Termination | Center Contact Material | Housing Color | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Polytetrafluoroethylene (PTFE) | 500 | 85 °C | -40 C | 1 Connector 1 Contact 1 Ferrule | Brass | 300 VDC | Nickel | Free Hanging (In-Line) | 2 GHz | BNC Mini | AT&T 734A | Bayonet Lock | 75 Ohms | Plug Male Pin | Crimp | Crimp | Brass | Silver | 1 |
 TE Connectivity AMP Connectors | Gold | Polytetrafluoroethylene (PTFE) | 500 | 85 °C | -40 C | 1 Connector 1 Contact 1 Ferrule | Brass | 300 VDC | Nickel | Free Hanging (In-Line) | 2 GHz | BNC Mini | AT&T 735A | Bayonet Lock | 75 Ohms | Plug Male Pin | Crimp | Crimp | Brass | Silver | 1 |
