CS11024 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Contact Rating @ Voltage	Switch Function	Actuator Type	Actuator Height off PCB, Vertical [z]	Termination Style	Circuit	Outline [x]	Outline [y]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Mounting Type	Illumination	Operating Force

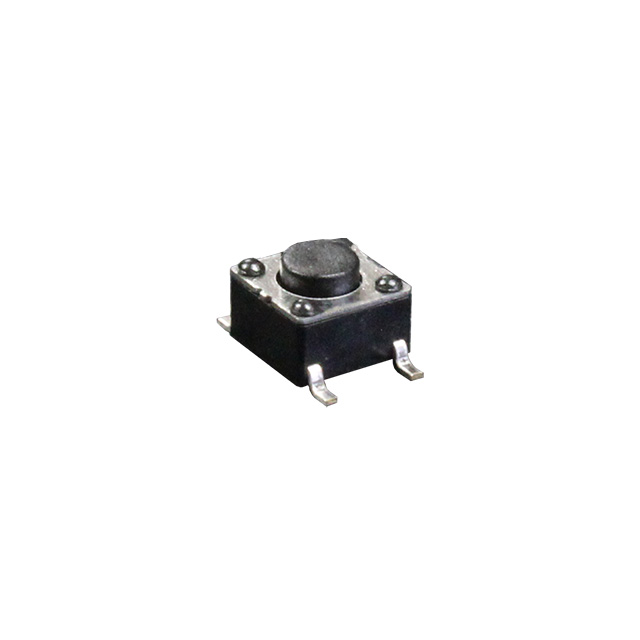

CIT Relay and Switch CS11024.3F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	0.05 A 50 VDC	Off-Mom	Standard	4.3 mm	Gull Wing	SPST-NO	6 mm	6 mm	85 °C	-40 C	Top Actuated	Surface Mount	Non-Illuminated	260 gf

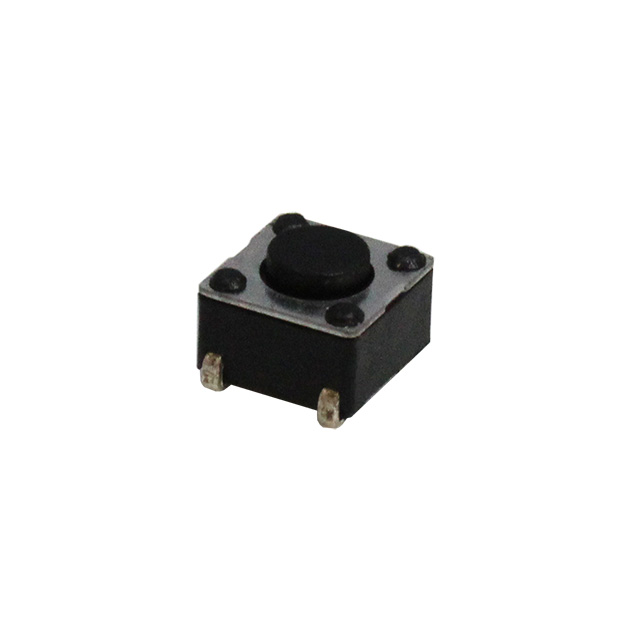

CIT Relay and Switch CS11024.3F100J	Polyamide (PA46) Nylon 4/6	0.25 mm	0.05 A 50 VDC	Off-Mom	Plunger for Cap	4.3 mm	J Lead	SPST-NO	6 mm	6 mm	85 °C	-40 C	Top Actuated	Surface Mount	Non-Illuminated	100 gf
CIT Relay and Switch CS11024.3F260J	Polyamide (PA46) Nylon 4/6	0.25 mm	0.05 A 50 VDC	Off-Mom	Plunger for Cap	4.3 mm	J Lead	SPST-NO	6 mm	6 mm	85 °C	-40 C	Top Actuated	Surface Mount	Non-Illuminated	260 gf

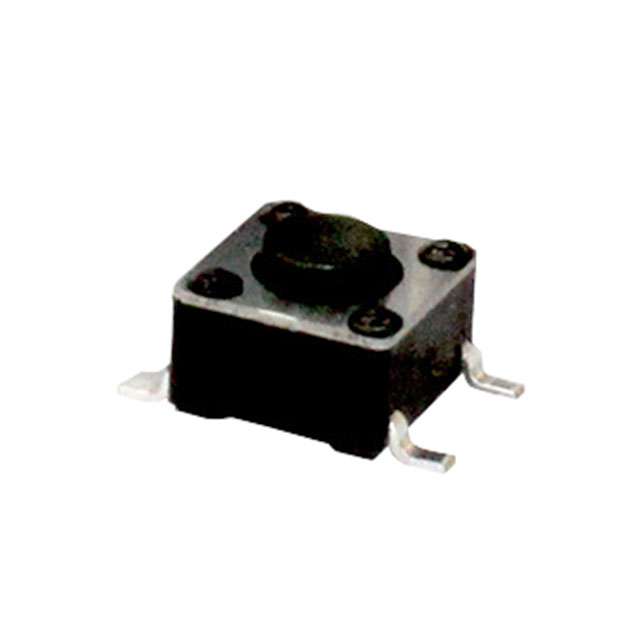

CIT Relay and Switch CS11024.3F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	0.05 A 50 VDC	Off-Mom	Standard	4.3 mm	Gull Wing	SPST-NO	6 mm	6 mm	85 °C	-40 C	Top Actuated	Surface Mount	Non-Illuminated	160 gf
CIT Relay and Switch CS11024.3F160J	Polyamide (PA46) Nylon 4/6	0.25 mm	0.05 A 50 VDC	Off-Mom	Plunger for Cap	4.3 mm	J Lead	SPST-NO	6 mm	6 mm	85 °C	-40 C	Top Actuated	Surface Mount	Non-Illuminated	160 gf
CIT Relay and Switch CS11024.3F100	Polyamide (PA46) Nylon 4/6	0.25 mm	0.05 A 50 VDC	Off-Mom	Plunger for Cap	4.3 mm	Gull Wing	SPST-NO	6 mm	6 mm	85 °C	-40 C	Top Actuated	Surface Mount	Non-Illuminated	100 gf
