45098 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

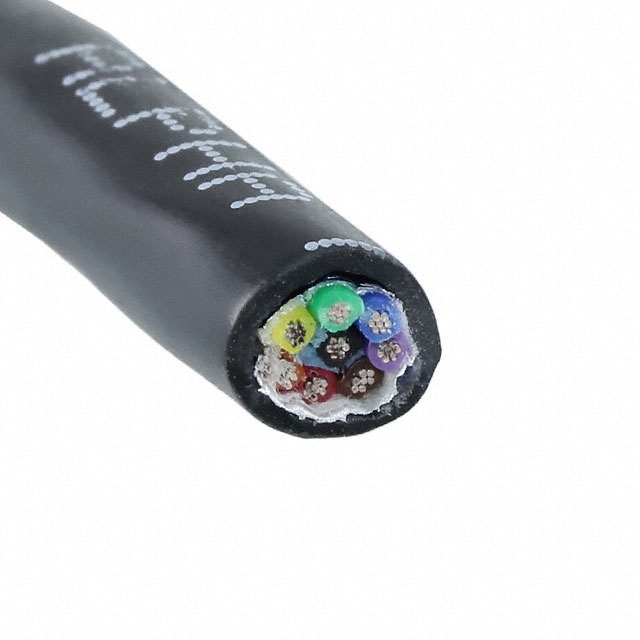

CABLE 8COND 24AWG BLK SHLD 1000'
| Part | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Shield Coverage | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Shield Type | Ratings | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Shield Material | Conductor Insulation | Jacket Color | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 24 AWG | 32 AWG | 7 | Multi-Conductor | 100 % | Thermoplastic Elastomer (TPE) | 1.067 mm | 0.042 in | 1000 ft | 304.8 m | Foil | ISO 10993 | Biological Compatibility Drain Wire Rip Cord | -50 °C | 125 °C | 8 | Aluminum | Thermoplastic Elastomer (TPE) | Black | Copper Tinned | 7.09 mm | 0.279 " | 300 V |
