200501 Series

Manufacturer: Molex

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 32 POS 2MM/3.2MM/4MM/5.2MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Part	Shrouding	Contact Shape	Features	Mounting Type	Current Rating (Amps)	Contact Type	Insulation Color	Number of Positions Loaded	Fastening Type	Insulation Material	Termination	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Material	Contact Finish - Post	Voltage Rating	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Applications

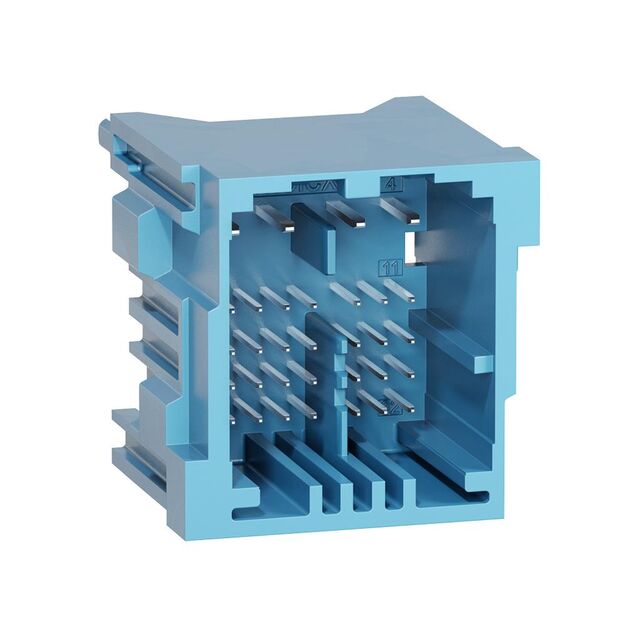

Molex 2005010322	Shrouded - 4 Wall	Rectangular	Board Guide	Through Hole	Varies by Wire Gauge	Male Blade Male Pin	Blue	All	Push-Pull	Glass Filled Syndiotactic Polystyrene (SPS)	Solder	5	2.6 mm	0.102 in	0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin

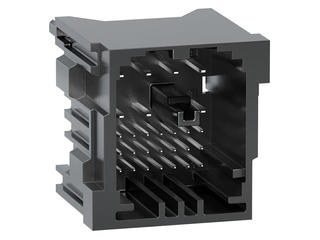

Molex 2005010284	Shrouded - 4 Wall	Square		Through Hole		Male Pin	Black	All	Push-Pull	Syndiotactic Polystyrene (SPS)	Solder	5	2.6 mm	0.102 in	0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin	500 V	28	UL94 V-0	5 A

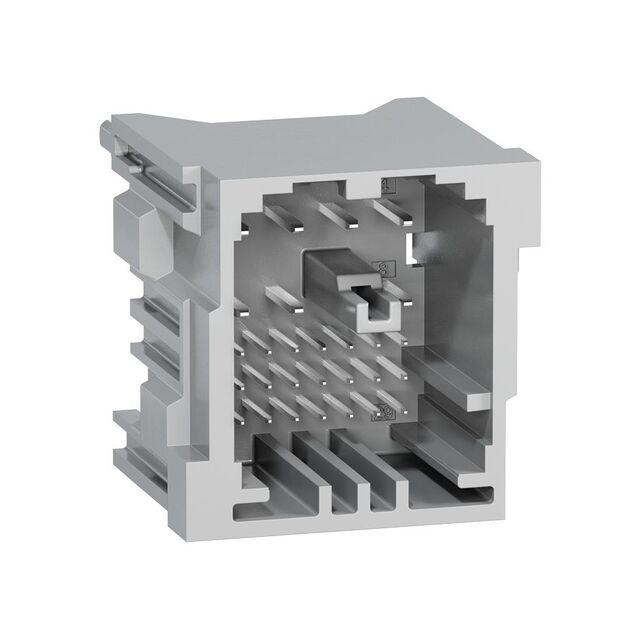

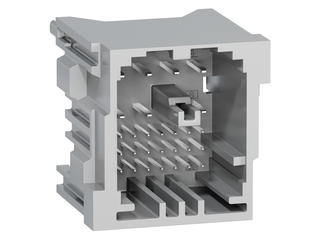

Molex 2005010283	Shrouded - 4 Wall	Square		Through Hole		Male Pin	Gray	All	Push-Pull	Syndiotactic Polystyrene (SPS)	Solder	5	2.6 mm	0.102 in	0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin	500 V	28	UL94 V-0	5 A

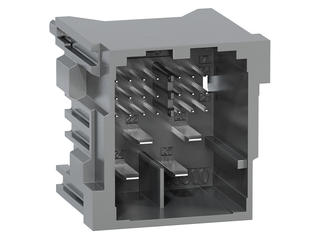

Molex 2005010254	Shrouded - 4 Wall	Square		Through Hole		Male Pin	Gray	All	Push-Pull	Syndiotactic Polystyrene (SPS)	Solder	5	2.6 mm	0.102 in	0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin	500 V	25	UL94 V-0	5 A
Molex 2005010271	Shrouded - 4 Wall	Square		Through Hole		Male Pin	Black	All	Push-Pull	Syndiotactic Polystyrene (SPS)	Solder	5	2.6 mm	0.102 in	0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin	500 V	27	UL94 V-0	5 A

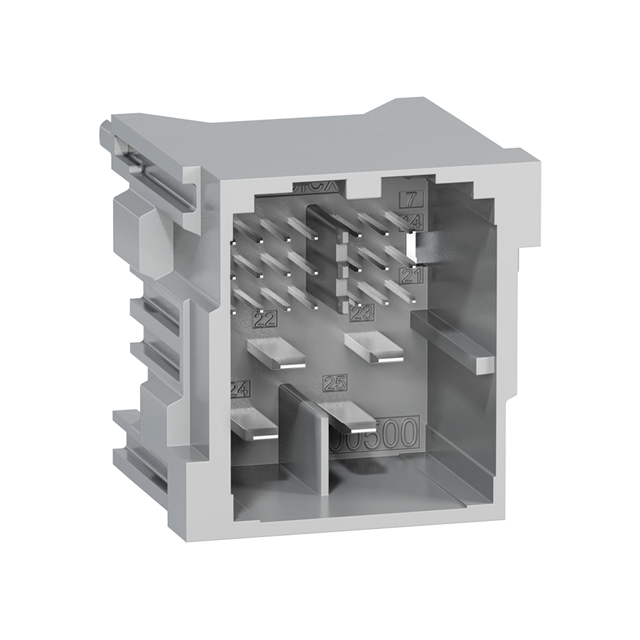

Molex 2005010252	Shrouded - 4 Wall	Rectangular	Board Guide	Through Hole		Male Blade	Gray	All		Glass Filled Syndiotactic Polystyrene (SPS)	Solder	5	2.6 mm	0.102 in	0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin		25		3 A 23 A	Automotive

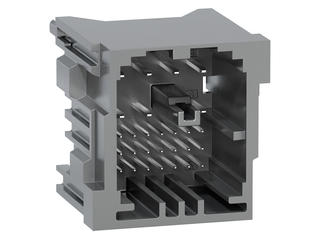

Molex 2005010281
Molex 2005010121	Shrouded - 4 Wall	Rectangular	Board Guide	Through Hole	Varies by Wire Gauge	Male Blade	Black	All	Push-Pull	Glass Filled Syndiotactic Polystyrene (SPS)	Solder				0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin		12

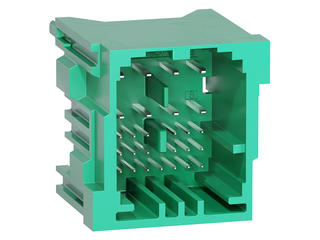

Molex 2005010272	Shrouded - 4 Wall	Square		Through Hole		Male Pin	Green	All	Push-Pull	Syndiotactic Polystyrene (SPS)	Solder	5	2.6 mm	0.102 in	0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin	500 V	27	UL94 V-0	5 A

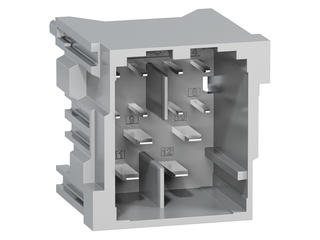

Molex 2005010124	Shrouded - 4 Wall	Rectangular	Board Guide	Through Hole	Varies by Wire Gauge	Male Blade Male Pin	Gray	All	Push-Pull	Glass Filled Syndiotactic Polystyrene (SPS)	Solder		2.6 mm	0.102 in	0.949 in	24.1 mm	Board to Cable/Wire	85 °C	-40 C	Header	Copper Alloy	Tin		12
