st2 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH: TOGGLE; POS: 2; DPDT; ON-ON; 15A/277VAC; ST2; 0÷85°C; UL94V-0
| Part | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Bushing Thread | Switch Function | Illumination | Circuit | Current Rating (Amps) | Termination Style | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Actuator Type | Electrical Life | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 125 V | 0 °C | 85 °C | Panel Mount | M12 x 1 | On-On | Non-Illuminated | DPDT | 20 A | Solder Lug | 17.5 mm | 12 mm | Standard Round | ||

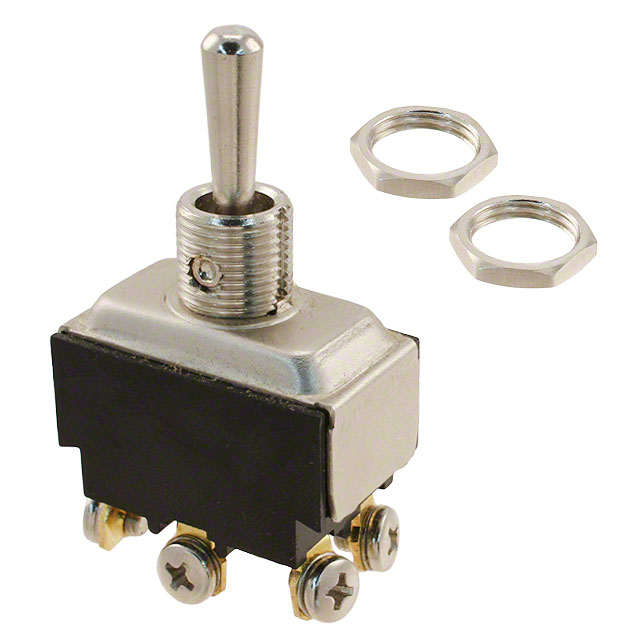

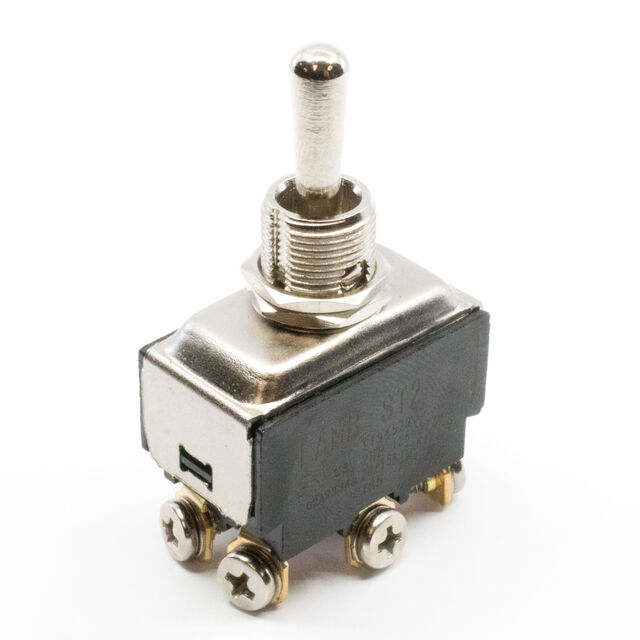

 E-Switch | 125 V | 0 °C | 85 °C | Panel Mount | 15/32-32 | On-Off-On | Non-Illuminated | DPDT | 20 A | Screw Terminal | 16.6 mm | 12 mm | Standard Round | 6000 Cycles | Brass Nickel Plated |
 E-Switch | 125 V | 0 °C | 85 °C | Panel Mount | M12 x 1 | On-Off | Non-Illuminated | DPST | 20 A | Screw Terminal | 17.5 mm | 12 mm | Standard Round |
