845-140 Series
Manufacturer: EDAC Inc.
Beta
⌘K

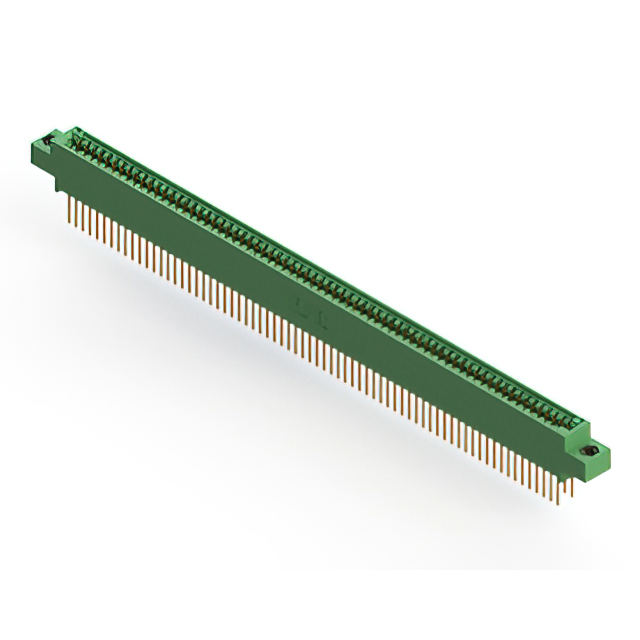

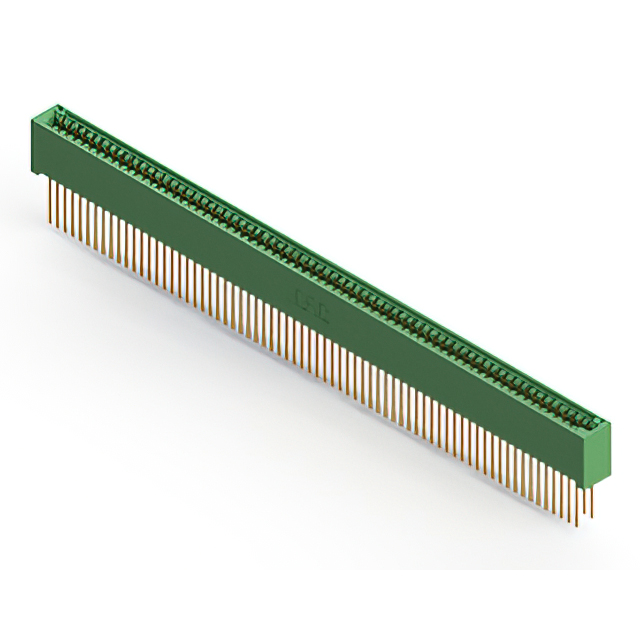

CONN EDGE DUAL FML 140POS 0.100
| Part | Card Type | Pitch | Pitch | Contact Finish | Mounting Type | Gender | Read Out | Flange Feature | Termination Rows [custom] | Material - Insulation | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Material | Number of Rows [custom] | Termination | Contact Type | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Right Angle Through Hole | Female | Dual | 4-40 Threaded Insert Top Mount Opening | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Solder | Cantilever | 70 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Board Edge Straddle Mount | Female | Dual | Flush Mount M3 Threaded Insert Top Opening | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Solder | Cantilever | 70 | 0.25 Ám | 10 Áin | Card Extender | ||
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Through Hole | Female | Dual | Floating Bobbin Top Mount Opening | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Wire Wrap | Cantilever | 70 | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | |
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Right Angle Through Hole | Female | Dual | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Solder | Cantilever | 70 | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Through Hole | Female | Dual | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Wire Wrap | Cantilever | 70 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Through Hole | Female | Dual | M3 Threaded Insert Top Mount Opening | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Solder | Cantilever | 70 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Through Hole | Female | Dual | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Solder | Cantilever | 70 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Right Angle Through Hole | Female | Dual | Flush Mount Top Opening Unthreaded | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Solder | Cantilever | 70 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | |
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Through Hole | Female | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Wire Wrap | Cantilever | 70 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Gold | Through Hole | Female | Dual | Flush Mount M3 Threaded Insert Top Opening | 2 | Diallyl Phthalate (DAP) | 140 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | 2 | Wire Wrap | Cantilever | 70 | 0.25 Ám | 10 Áin |
