EPL.0S Series

Manufacturer: LEMO

Catalog

CONN TRIAX RCPT R/A 50 OHM PCB

Part	Dielectric Material	Body Finish	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Mating Cycles	Shield Termination	Center Contact Material	Contact Termination	Mounting Type	Connector Style	Housing Color	Impedance	Ingress Protection	Fastening Type	Cable Group	Number of Ports	Connector Type	Contact Material	Shielding	Shell Finish	Shell Size - Insert	Current Rating (Amps)	Insert Material	Termination	Contact Finish - Mating	Orientation	Number of Positions	Features	Primary Material	Shell Material	Material Flammability Rating
LEMO EPL.0S.650.NTD	Polytetrafluoroethylene (PTFE)	Nickel	Brass	-55 C	250 °C	Gold	1000	Solder	Brass	Solder	Right Angle Through Hole	Triaxial	Silver	50 Ohms	IP50 - Dust Protected	Push-Pull	RG-174 RG-178	1	Receptacle Male Pin
LEMO EPL.0S.116.DTL				-55 C	250 °C						Right Angle Through Hole				IP50 - Dust Protected	Push-Pull			Receptacle Female Sockets	Bronze	Shielded	Gold	116	12 Amps	Polytetrafluoroethylene (PTFE)	Solder	Gold	Keyed	1	Ground	Metal	Brass
LEMO EPL.0S.250.CTN	Polytetrafluoroethylene (PTFE)	Chrome	Brass	-55 C	250 °C	Gold	1000	Solder	Beryllium Copper	Solder	Right Angle Through Hole	Coaxial	Silver	50 Ohms	IP50 - Dust Protected	Push-Pull	174 174A 178B 188A 196A 316B RG-122	1	Receptacle Female Socket

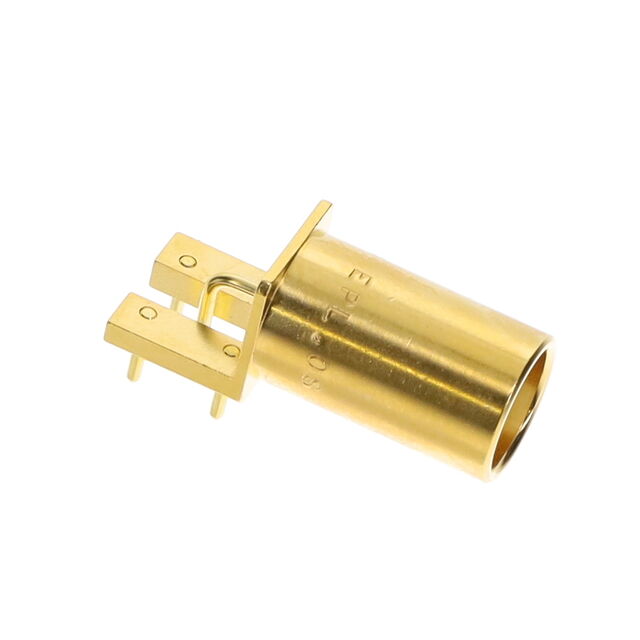

LEMO EPL.0S.250.DTN	Polytetrafluoroethylene (PTFE)	Gold	Brass	-55 C	250 °C	Gold	1000	Solder	Beryllium Copper	Solder	Right Angle Through Hole	Coaxial	Gold	50 Ohms	IP50 - Dust Protected	Push-Pull	174 174A 178B 188A 196A 316B RG-122	1	Receptacle Female Socket

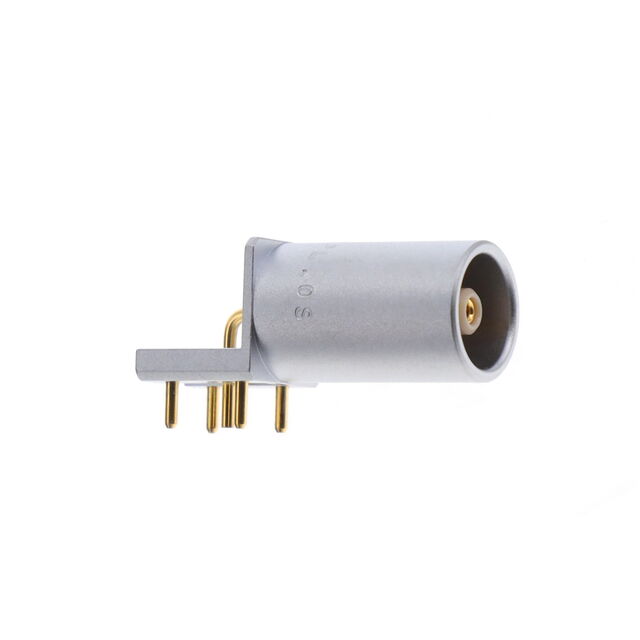

LEMO EPL.0S.250.CLN	Polyetheretherketone (PEEK)	Chrome	Brass	-55 C	250 °C	Gold	1000	Solder	Beryllium Copper	Solder	Right Angle Through Hole	Coaxial	Silver	50 Ohms	IP50 - Dust Protected	Push-Pull	174 174A 178B 188A 196A 316B RG-122	1	Receptacle Female Socket

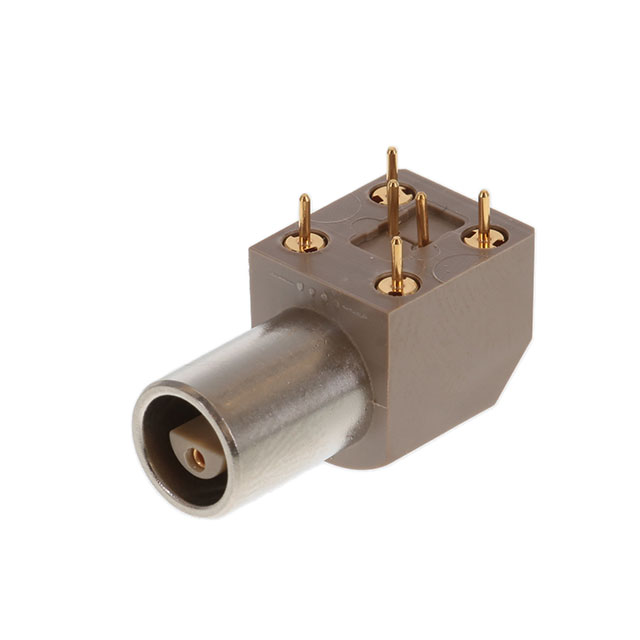

LEMO EPL.0S.302.HLN				-55 C	250 °C						Right Angle Through Hole				IP50 - Dust Protected	Push-Pull			Receptacle Female Sockets and Male Pins	Brass Bronze	Shielded	Nickel	302	4.5 A	Polyetheretherketone (PEEK)	Solder	Gold	Keyed	2	Ground	Metal	Brass and Polyphenylene Sulfide (PPS)	UL94 V-0

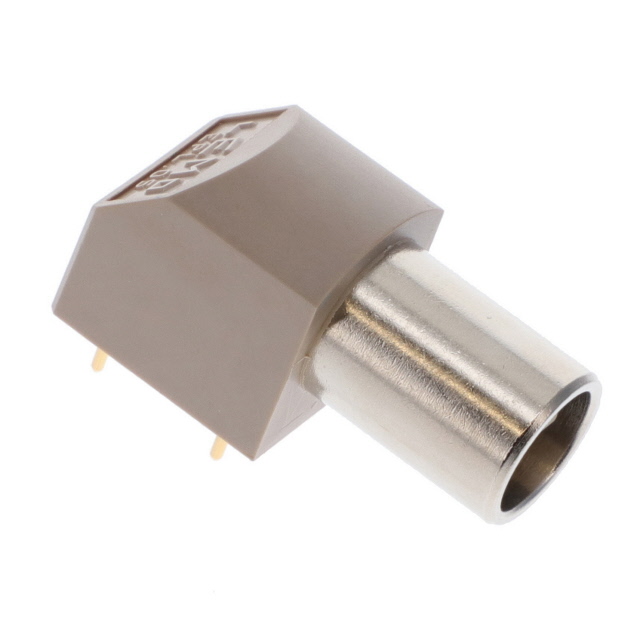

LEMO EPL.0S.304.HLN				-55 C	250 °C						Right Angle Through Hole				IP50 - Dust Protected	Push-Pull			Receptacle Female Sockets and Male Pins	Brass Bronze	Shielded	Nickel	304	4.5 A	Polyetheretherketone (PEEK)	Solder	Gold	Keyed	4	Ground	Metal	Brass and Polyphenylene Sulfide (PPS)	UL94 V-0
LEMO EPL.0S.650.NTN	Polytetrafluoroethylene (PTFE)	Nickel	Brass	-55 C	250 °C	Gold	1000	Solder	Brass	Solder	Right Angle Through Hole	Triaxial	Silver	50 Ohms	IP50 - Dust Protected	Push-Pull	RG-174 RG-178	1	Receptacle Female Socket
