AC4490 Series

Catalog

RF TXRX MOD ISM<1GHZ MMCX CHAS

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Mounting Type	Current - Transmitting	Sensitivity	Package / Case	RF Family/Standard	Serial Interfaces	Modulation	Frequency	Data Rate	Voltage - Supply	Frequency [Min]	Frequency [Max]

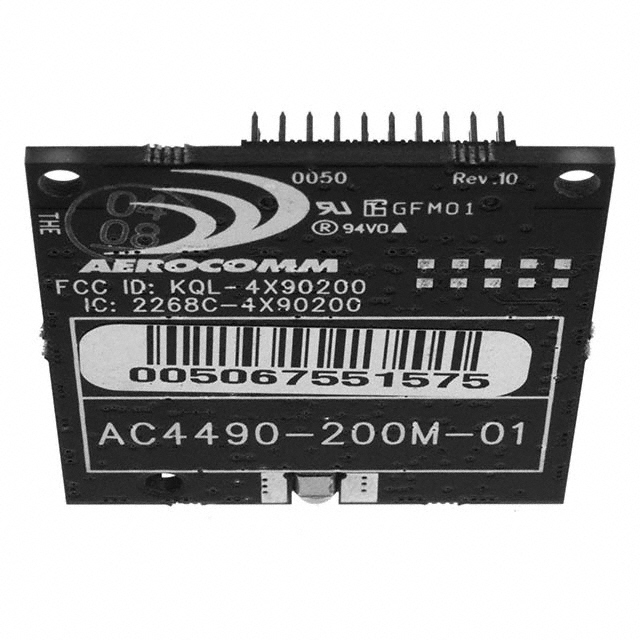

Ezurio LLC AC4490-200M	5.5 V	3.3 V	23 dBm	Antenna Not Included MMCX	80 °C	-40 C	68 mA	Chassis Mount	68 mA	-110 dBm	Module	General ISM < 1GHz	UART	FHSS FSK	900 MHz	115.2 kbps
Ezurio LLC AC4490-200M	5.5 V	3.3 V	23 dBm	Antenna Not Included MMCX	80 °C	-40 C	68 mA	Chassis Mount	68 mA	-110 dBm	Module	General ISM < 1GHz	UART	FHSS FSK	900 MHz	115.2 kbps
Ezurio LLC AC4490-1X1			10 dBm	Antenna Not Included Castellation	85 °C	-40 C		Surface Mount		-99 dBm	28-SMD Module			FHSS FSK			3.3 V	902 MHz	928 MHz

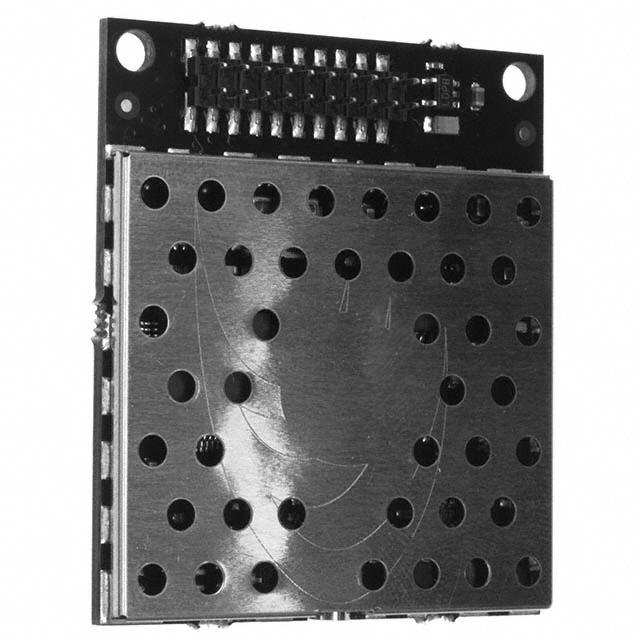

Ezurio LLC AC4490-1000M	5.5 V	3.3 V	30 dBm	Antenna Not Included MMCX	80 °C	-40 C	650 mA	Chassis Mount	650 mA	-110 dBm	Module	General ISM < 1GHz	UART	FHSS FSK	900 MHz	115.2 kbps
Ezurio LLC AC4490-1X1			10 dBm	Antenna Not Included Castellation	85 °C	-40 C		Surface Mount		-99 dBm	28-SMD Module			FHSS FSK			3.3 V	902 MHz	928 MHz
Ezurio LLC AC4490-1000M	5.5 V	3.3 V	30 dBm	Antenna Not Included MMCX	80 °C	-40 C	650 mA	Chassis Mount	650 mA	-110 dBm	Module	General ISM < 1GHz	UART	FHSS FSK	900 MHz	115.2 kbps
