PL080 Series

Catalog

TEM 40X40X3.33MM

Part	Features	Voltage - Max [Max]	Resistance	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Current - Max [Max]	Qmax @ Th	Delta Tmax @ Th	Number of Stages	Type
Marlow Industries, Inc. PL080-8.5-40-02	Lead Wires	14.7 V	1.45 Ohms	40 mm	40 mm	4.17 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
Marlow Industries, Inc. PL080-8.5-40-01L	Lapped Lead Wires	14.7 V	1.45 Ohms	40 mm	40 mm	3.33 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
Marlow Industries, Inc. PL080-8.5-40-01	Lead Wires	14.7 V	1.45 Ohms	40 mm	40 mm	3.48 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
Marlow Industries, Inc. PL080-8.5-40-02L	Lapped Lead Wires	14.7 V	1.45 Ohms	40 mm	40 mm	3.94 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)

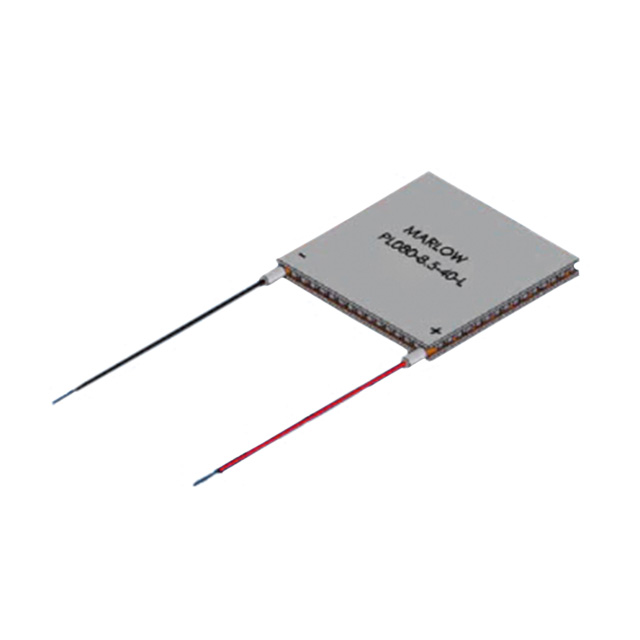

Marlow Industries, Inc. PL080-8.5-40-01LS	Lapped Lead Wires Sealed	14.7 V	1.45 Ohms	40 mm	40 mm	3.33 mm	8.5 A	78 W	66 °C	1	TEC (Thermoelectric Cooler)
