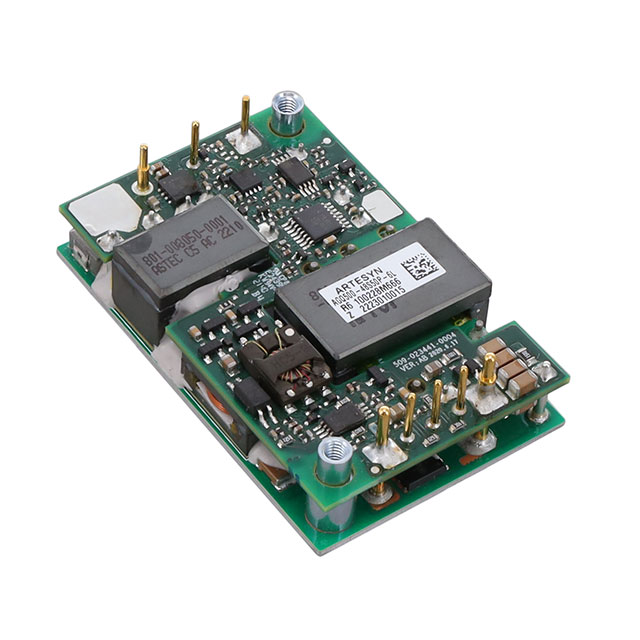

AGQ500 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 500W, 36 - 75VIN, SINGLE, 50VA.10A, 95% EFF, 1/4 BRICK ALUMINUM SUBSTRATE, POSITIVE LOGIC/PIN LENGTH:3.8MM
| Part | Current - Output (Max) [Max] | Features | Power (Watts) | Control Features | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Output 1 | Package / Case | Applications | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Input (Min) [Min] | Approval Agency | Voltage - Isolation | Mounting Type | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 10 A | Baseplate Remote On/Off | 500 W | Active High Enable | 85 °C | -40 C | Quarter Brick | 50 V | Quarter Brick | ITE (Commercial) | 75 V | 1 | 36 V | CE TUV UL | 2250 VDC | Through Hole | 95 % | 57.9 mm | 1.45 in | 0.5 in | 2.28 " | 12.7 mm | 36.8 mm | Isolated Module |
 ARTESYN / Advanced Energy | 10 A | Baseplate Remote On/Off | 500 W | Active Low Enable | 85 °C | -40 C | Quarter Brick | 50 V | Quarter Brick | ITE (Commercial) | 75 V | 1 | 36 V | CE TUV UL | 2250 VDC | Through Hole | 95 % | 57.9 mm | 1.45 in | 0.5 in | 2.28 " | 12.7 mm | 36.8 mm | Isolated Module |
