216000 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

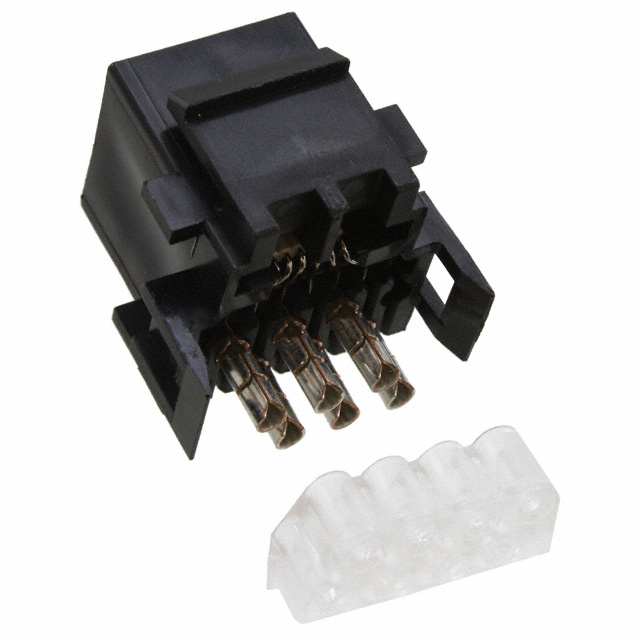

MODULAR CONNECTOR, RJ11/RJ14/RJ25, RJ11 / RJ14 / RJ25 JACK, 1 X 1 (PORT), 6P6C, CAT3, PANEL MOUNT
| Part | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Orientation | Contact Material | Termination | Number of Ports | Mounting Type | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] | Connector Type | Contact Finish | Tab Direction | Number of Rows | Shielding | Features | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.25 µm | 49.3 µin | 70 °C | -40 C | Polybutylene Terephthalate (PBT) | Straight | Phosphor Bronze | Barrel Terminals | 1 | Panel Mount | 6 | 6 | Jack | Gold | User Selectable | 1 | Unshielded | Panel Lock Toolless | Does Not Contain LED |
