SM02B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

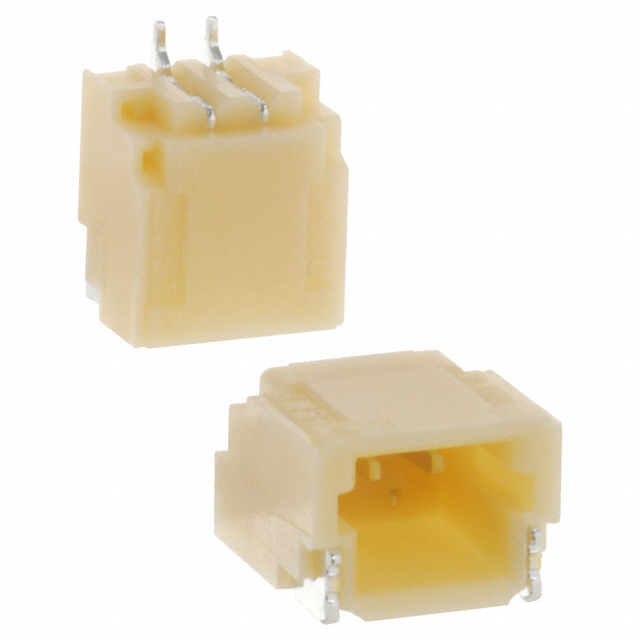

CONN HEADER SMD R/A 2POS 1MM
| Part | Insulation Material | Features | Contact Type | Contact Shape | Fastening Type | Contact Finish - Post | Number of Rows | Insulation Color | Voltage Rating | Number of Positions | Insulation Height | Insulation Height | Number of Positions Loaded | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material | Material Flammability Rating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Style | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Nylon Polyamide (PA) | Solder Retention | Male Pin | Square | Push-Pull | Tin | 1 | Natural | 50 V | 2 | 0.114 in | 2.9 mm | All | Solder | Right Angle Surface Mount | 1 mm | 0.039 in | Copper Alloy | UL94 V-0 | Header | 85 °C | -25 °C | Board to Cable/Wire | Shrouded - 4 Wall |
