25006 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

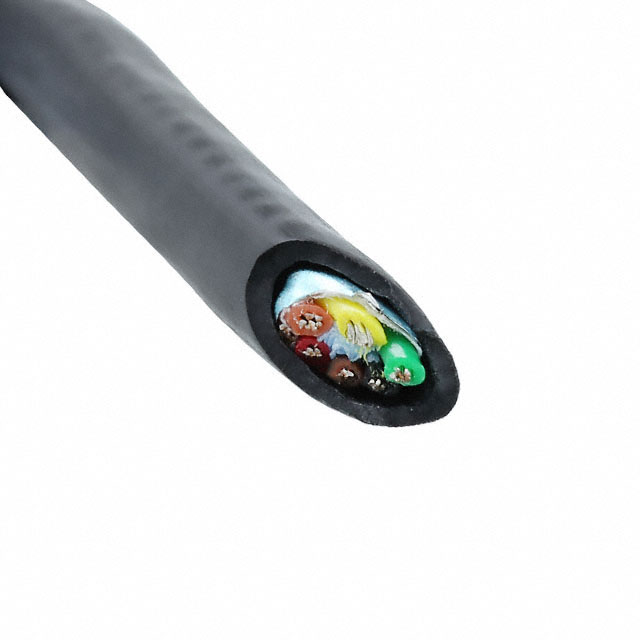

CABLE 6COND 22AWG SLATE 1000'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Number of Conductors | Ratings | Cable Type | Conductor Material | Conductor Insulation | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Length [x] | Length [x] | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.219 " | 5.56 mm | Slate | 6 | ISO 10993 UL Style 20668 | Multi-Conductor | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | 0.813 mm | 0.032 in | 300 VDC | -30 ░C | 90 °C | 304.8 m | 1000 ft | Biological Compatibility Rip Cord | 30 AWG | 7 | Polyurethane (PU) | |||||
 ALPHA WIRE | 0.219 " | 5.56 mm | Black | 6 | ISO 10993 UL Style 20668 | Multi-Conductor | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | 0.813 mm | 0.032 in | 300 VDC | -30 ░C | 90 °C | Biological Compatibility Rip Cord | 30 AWG | 7 | Polyurethane (PU) | 100 ft | 30.5 m | |||||
 ALPHA WIRE | 0.219 " | 5.56 mm | Black | 6 | ISO 10993 UL Style 20668 | Multi-Conductor | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | 0.813 mm | 0.032 in | 300 VDC | -30 ░C | 90 °C | Biological Compatibility Rip Cord | 30 AWG | 7 | Polyurethane (PU) | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity |
