1514 Series

Catalog

CONN RING CIRC 22AWG #4 CRIMP

Part	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Material - Insulation	Color	Thickness	Thickness	Mounting Type	Wire Gauge	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Features	Termination	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Contact Finish	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]
TE Connectivity Raychem Cable Protection 151438	Copper	7.14 mm	0.281 in	Insulated	Nylon Polyamide (PA)	Black	0.031 in	0.79 mm	Free Hanging (In-Line)	22 AWG	0.89 mm	0.1 in	2.54 mm	0.035 in	Serrated Termination	Crimp	4 Stud	19.96 mm	0.786 in	Tin	Circular

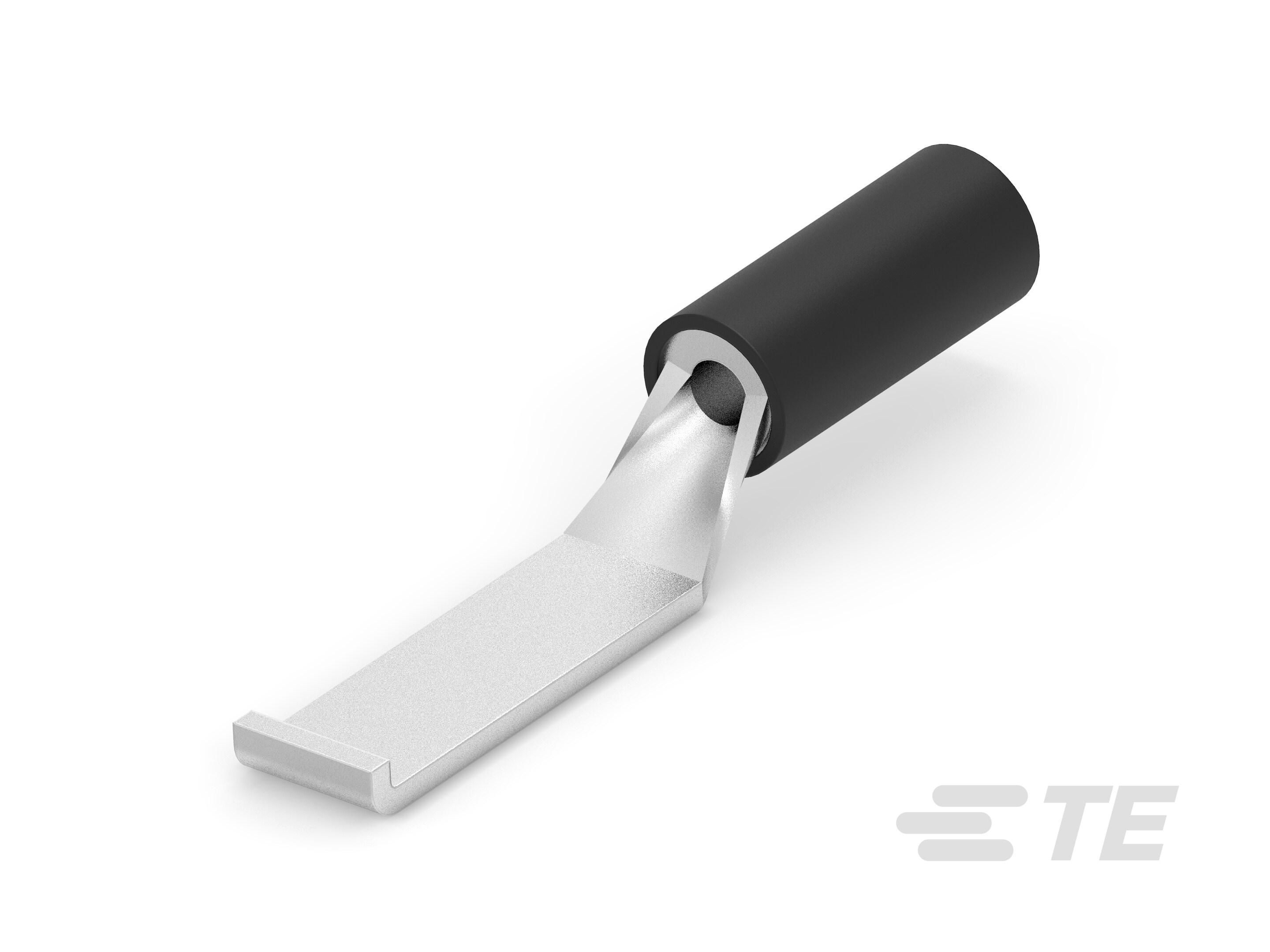

TE Connectivity Raychem Cable Protection 151467	Brass			Insulated	Poly-Vinyl Chloride (PVC)	Black												27.41 mm	1.079 in			22 AWG	16 AWG

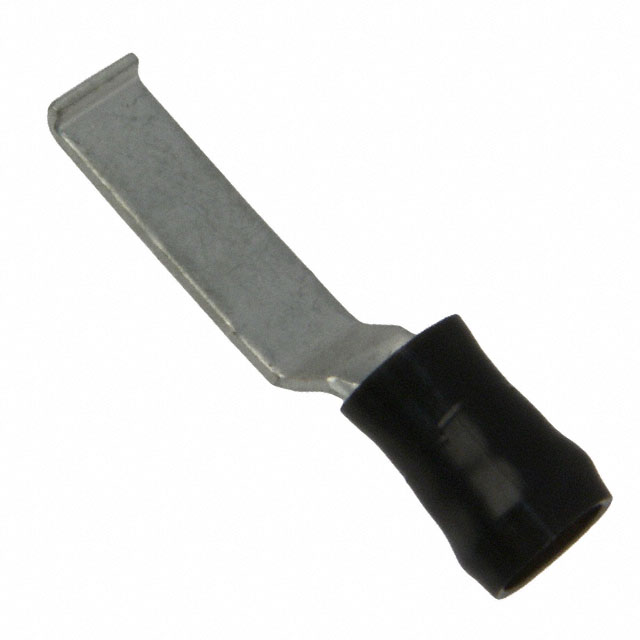

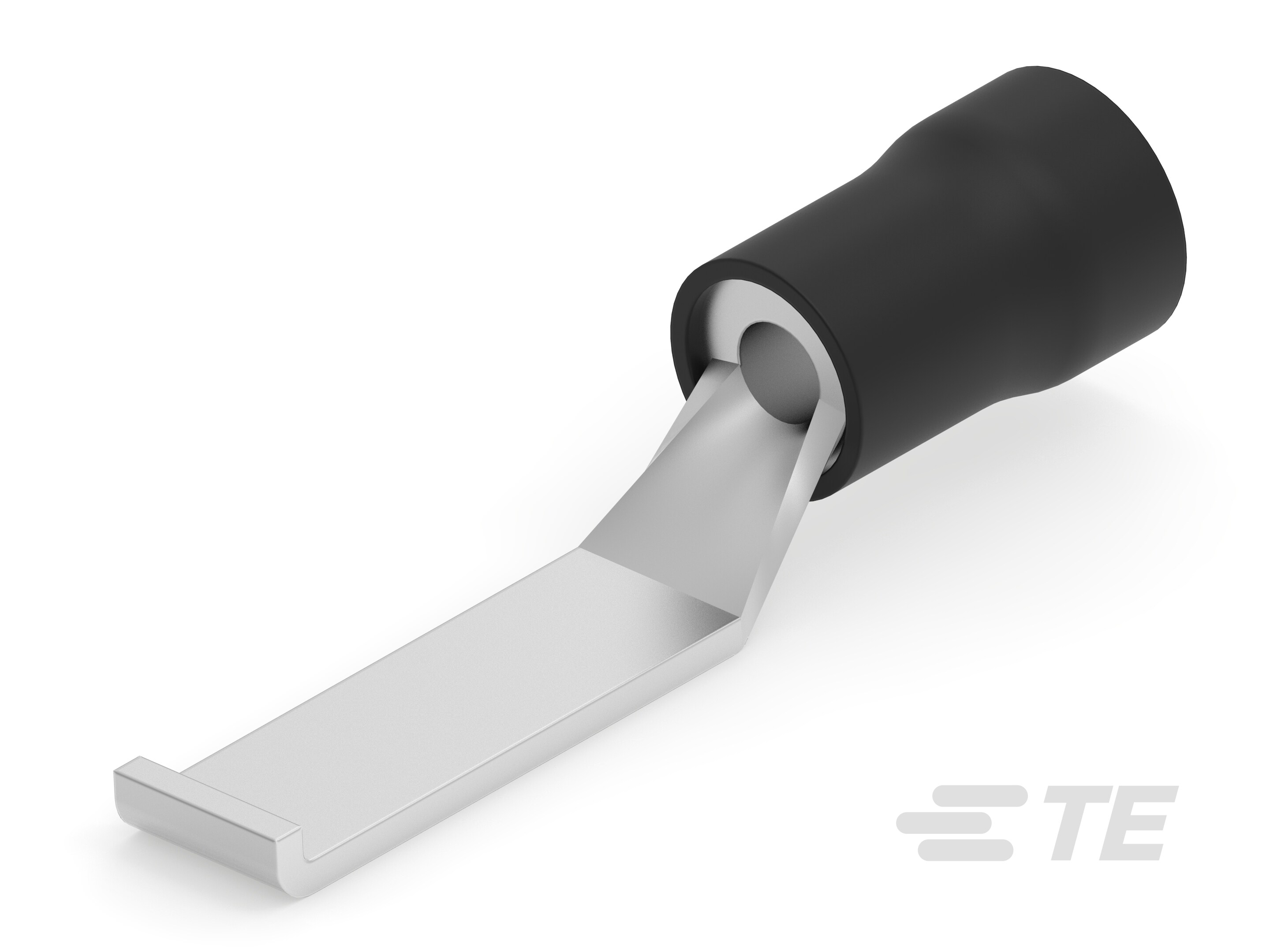

TE Connectivity Raychem Cable Protection 151469	Copper			Insulated	Nylon Polyamide (PA)	Black												27.41 mm	1.079 in	Tin				0.115 in 2.92 mm	0.17 " 4.32 mm
