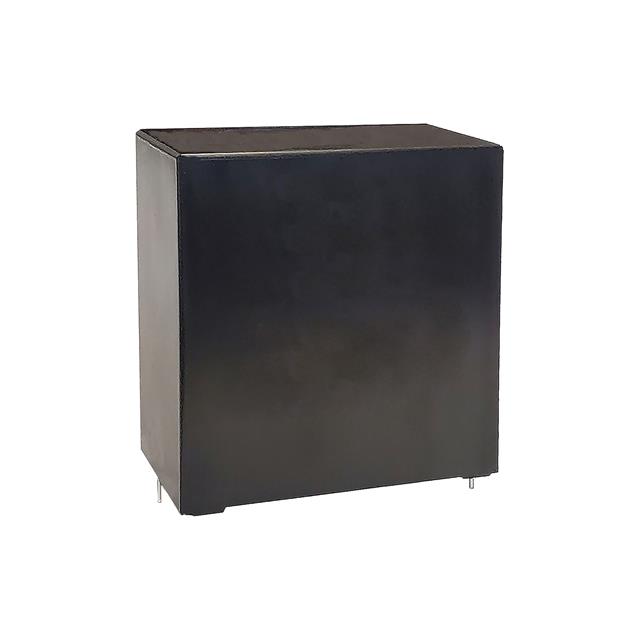

MYH Series

Catalog

CAP FILM 4700PF 10% 1.5KVDC RAD

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Capacitance	Dielectric Material	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Voltage Rating - AC	Mounting Type	Termination	Package / Case	Tolerance	Applications	Features	Height - Seated (Max) [Max]
Cornell Dubilier Knowles MYH472K300D10	13 mm	0.512 "	5 mm	0.197 "	0.0047 µF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C	11.5 mm	0.453 in	1.5 kV	1.5 kV	0.394 in	10 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB
Cornell Dubilier Knowles MYH104K300H11	32 mm	1.26 in	9 mm	0.354 in	100000 pF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C			1.5 kV	1.5 kV	1.083 in	27.5 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB
Cornell Dubilier Knowles MYH154K300H11	32 mm	1.26 in	9 mm	0.354 in	0.15 ÁF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C			1.5 kV	1.5 kV	1.083 in	27.5 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB
Cornell Dubilier Knowles MYH824K300H30	32 mm	1.26 in	22 mm	0.866 in	0.82 µF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C	37.8 mm	1.488 in	1.5 kV	1.5 kV	1.083 in	27.5 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB
Cornell Dubilier Knowles MYH105K300H30	32 mm	1.26 in	22 mm	0.866 in	1 µF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C	37.8 mm	1.488 in	1.5 kV	1.5 kV	1.083 in	27.5 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB
Cornell Dubilier Knowles MYH222K300D16	13 mm	0.512 "	4 mm	0.157 "	2200 pF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C		9.5 mm	1.5 kV	1.5 kV	0.394 in	10 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB	0.374 "
Cornell Dubilier Knowles MYH224K300G22	26 mm	1.024 in	12 mm	0.472 "	0.22 µF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C		22.5 mm	1.5 kV	1.5 kV	0.886 in	22.5 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB	0.886 in
Cornell Dubilier Knowles MYH684K300N24					0.68 µF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C		28.8 mm	1.5 kV	1.5 kV	1.476 in	37.5 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB	1.134 in
Cornell Dubilier Knowles MYH274K300H21	32 mm	1.26 in	13 mm	0.512 "	0.27 µF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C		22.8 mm	1.5 kV	1.5 kV	1.083 in	27.5 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB	0.898 in
Cornell Dubilier Knowles MYH152K300D16	13 mm	0.512 "	4 mm	0.157 "	1500 pF	Polypropylene (PP) Metallized	AEC-Q200 Y2	-40 C	110 °C		9.5 mm	1.5 kV	1.5 kV	0.394 in	10 mm	300 V	Through Hole	PC Pins	Radial	10 %	Automotive EMI RFI Suppression	85C/85% Humidity Long Life Low ESL Low ESR THB	0.374 "
