D2D Series

Catalog

SWITCH SNAP ACTION SPDT 16A 250V

Part	Actuator Type	Operating Force	Termination Style	Overtravel [custom]	Overtravel [custom]	Switch Function	Operating Position	Operating Position	Mechanical Life	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Ingress Protection	Electrical Life	Mounting Type	Features

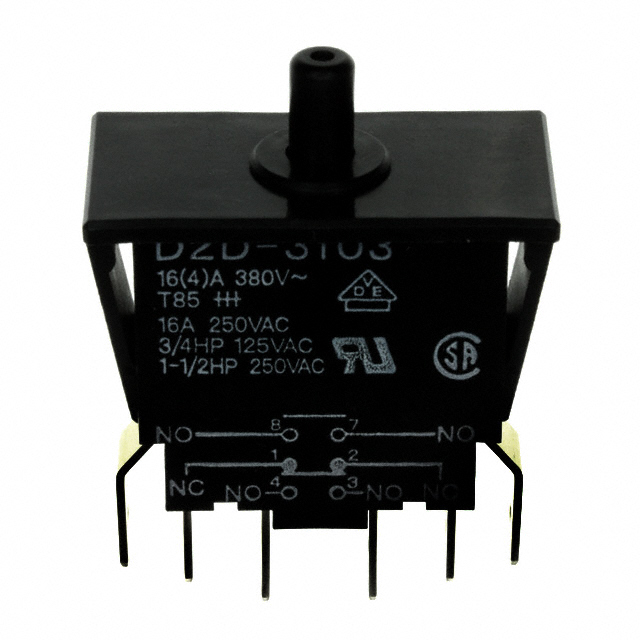

Omron Electronics Inc-EMC Div D2D-3103	Round (Pin Plunger)	300 gf	Quick Connect - 0.250" (6.3mm)	2.3 mm	0.09 "	Off-Mom On-Mom	0.468 in	11.9 mm	10000000 Cycles	16 A	250 V	85 °C	-25 °C	SPDT SPST-NO	IP40	100000 Cycles	Panel Mount Snap-In

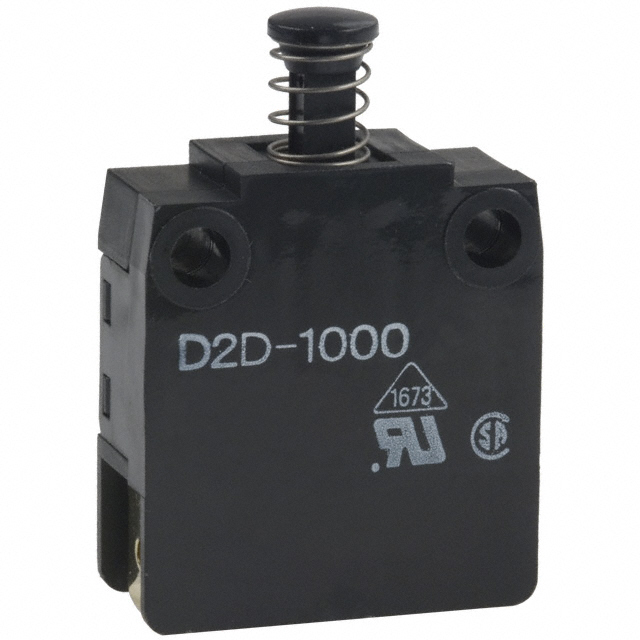

Omron Electronics Inc-EMC Div D2D-1000	Round (Pin Plunger)	300 gf	Quick Connect - 0.250" (6.3mm)	2.3 mm	0.09 "	On-Mom	0.625 in	15.9 mm	10000000 Cycles	16 A	250 V	85 °C	-25 °C	SPDT (DB/DM)	IP40	100000 Cycles	Chassis Mount

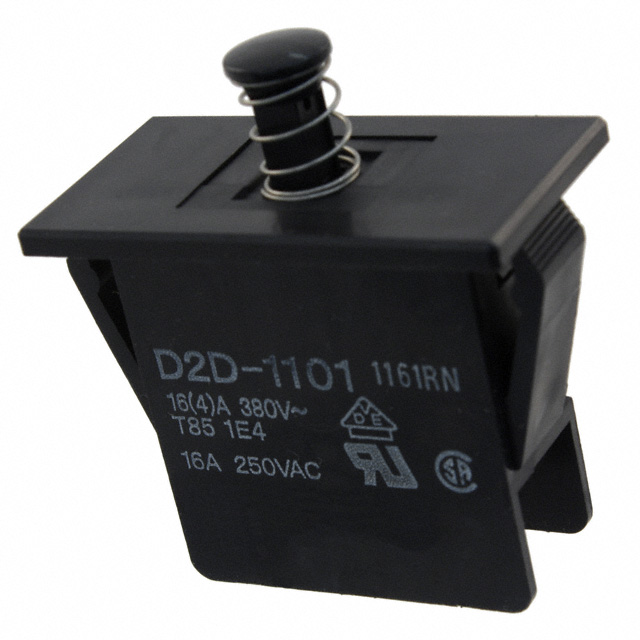

Omron Electronics Inc-EMC Div D2D-1101	Round (Pin Plunger)	600 gf	Quick Connect - 0.250" (6.3mm)	2.3 mm	0.09 "	Off-Mom	0.343 in	8.7 mm	10000000 Cycles	16 A	250 V	85 °C	-25 °C	SPST-NO (DM)	IP40	100000 Cycles	Panel Mount Snap-In

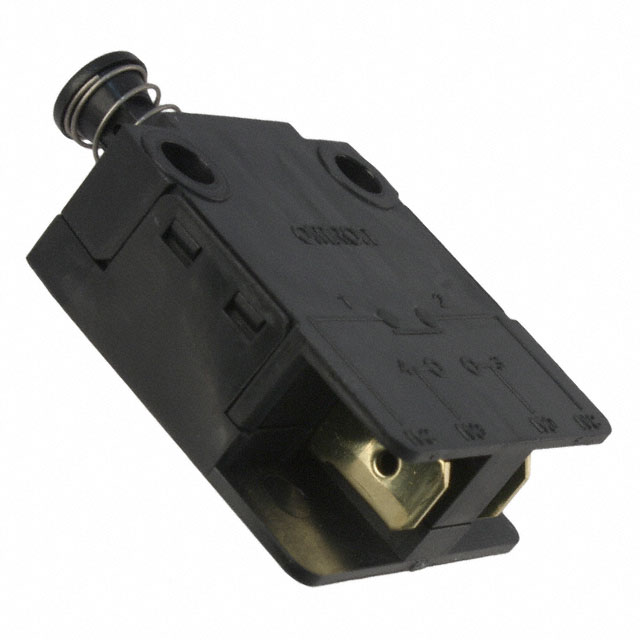

Omron Electronics Inc-EMC Div D2D-1001	Round (Pin Plunger)	600 gf	Quick Connect - 0.250" (6.3mm)	2.3 mm	0.09 "	Off-Mom	0.5 in	12.7 mm	10000000 Cycles	16 A	250 V	85 °C	-25 °C	SPST-NO (DM)	IP40	100000 Cycles	Chassis Mount

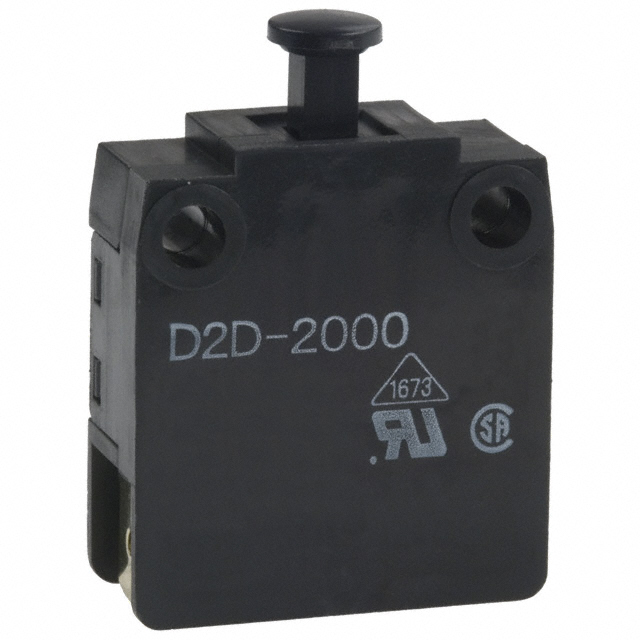

Omron Electronics Inc-EMC Div D2D-2000	Round (Pin Plunger)	300 gf	Quick Connect - 0.250" (6.3mm)	4.5 mm	0.175 "	On-Mom	0.5 in	12.7 mm	10000000 Cycles	10 A	250 V	85 °C	-25 °C	SPDT (DB/DM)	IP40	100000 Cycles	Chassis Mount	Pull On Lock
