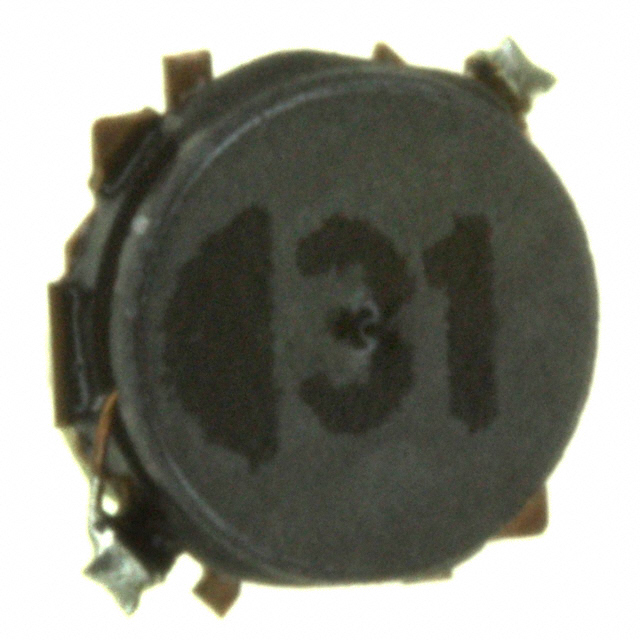

ELL-4FG Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 3.3UH 1.22A 110MOHM SM
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Package / Case | Current Rating (Amps) | DC Resistance (DCR) | Shielding | Tolerance | Inductance Frequency - Test | Inductance | Current - Saturation (Isat) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 1.2 mm | 0.047 in | Surface Mount | Nonstandard | 1.22 A | 110 mOhm | Shielded | 30 % | 100 kHz | 3.3 µH | 1.1 A | Wirewound |
Panasonic Industrial Automation Sales | 1.2 mm | 0.047 in | Surface Mount | Nonstandard | 1 A | 160 mOhm | Shielded | 30 % | 100 kHz | 4.7 ÁH | 1 A | Wirewound |
Panasonic Industrial Automation Sales | 1.2 mm | 0.047 in | Surface Mount | Nonstandard | 0.5 A | Shielded | 20 % | 100 kHz | 22 µH | 420 mA | Wirewound |
