3218 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

RING TONGUE TERMINAL (4/0)AWG COPPER 55.32MM TIN LOOSE

Part	Thickness	Thickness	Contact Finish	Features	Terminal Type	Mounting Type	Termination	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge	Contact Material	Insulation	Length - Overall	Length - Overall [x]	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Length - Overall [x]	Type	Shielding

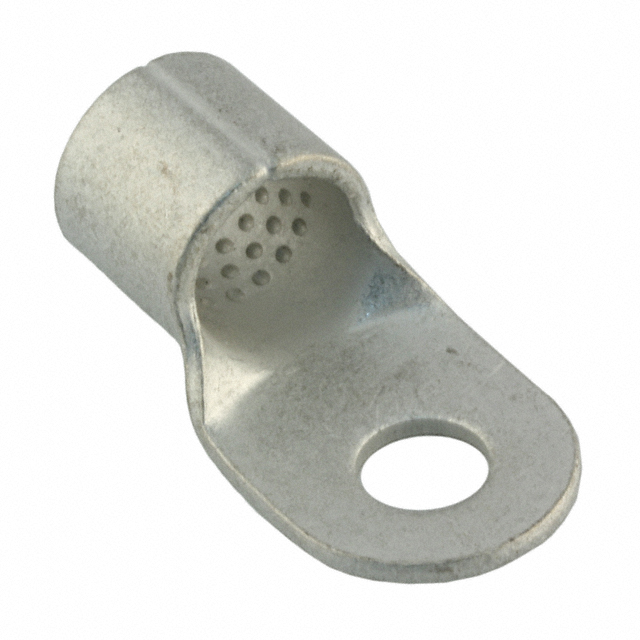

TE Connectivity Raychem Cable Protection 321879	2.59 mm	0.102 in	Tin	Brazed Seam	Circular	Free Hanging (In-Line)	Crimp	7/16 Stud	1.087 in	27.61 mm	4 aught AWG	Copper	Non-Insulated	55.32 mm	2.178 in
TE Connectivity Raychem Cable Protection 321887	0.79 mm	0.031 in		High Temperature Serrated Termination	Circular	Free Hanging (In-Line)	Crimp					Nickel	Non-Insulated	15.85 mm		4 Stud	22 AWG	16 AWG	5.54 mm	0.218 in	0.624 in	0.14 in	0.105 in	3.56 mm	2.67 mm

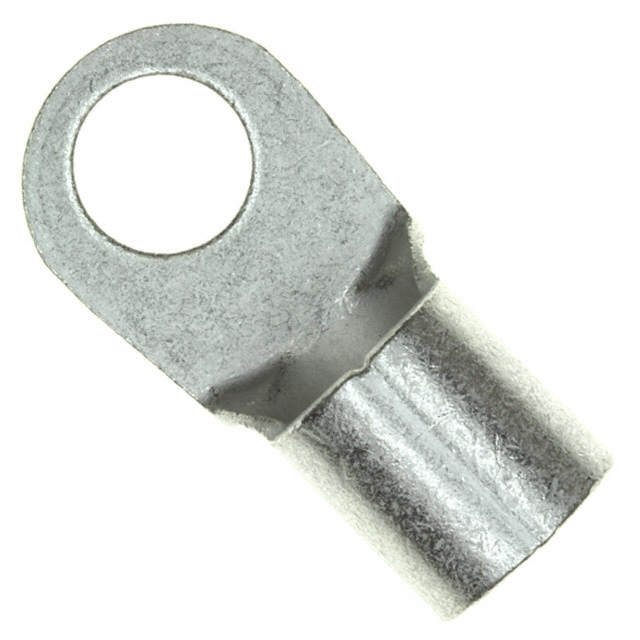

TE Connectivity Raychem Cable Protection 321873	2.03 mm	0.08 "	Tin	Brazed Seam Serrated Termination	Circular	Free Hanging (In-Line)	Crimp	1/2 Stud				Copper	Non-Insulated		1.93 in				23.52 mm	0.926 in						49.02 mm

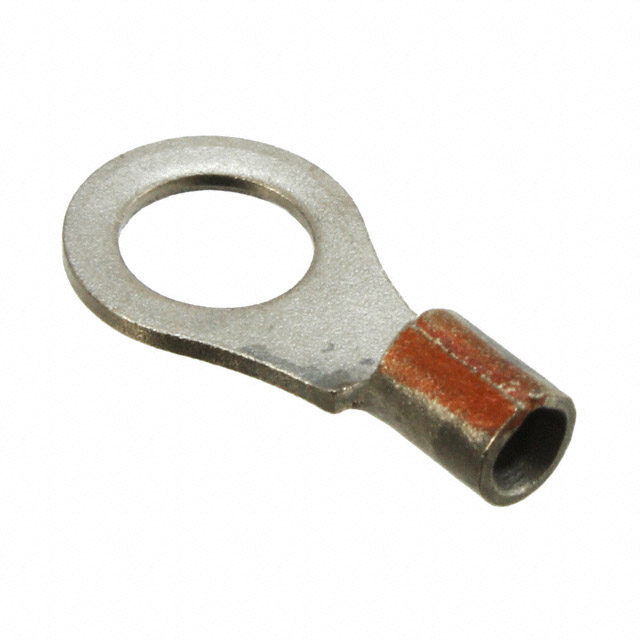

TE Connectivity Raychem Cable Protection 321896	0.76 mm	0.03 in		Brazed Seam High Temperature Serrated Termination	Circular	Free Hanging (In-Line)	Crimp		0.312 in	7.92 mm		Nickel	Non-Insulated	15.77 mm	0.621 in	10 Stud	22 AWG	16 AWG

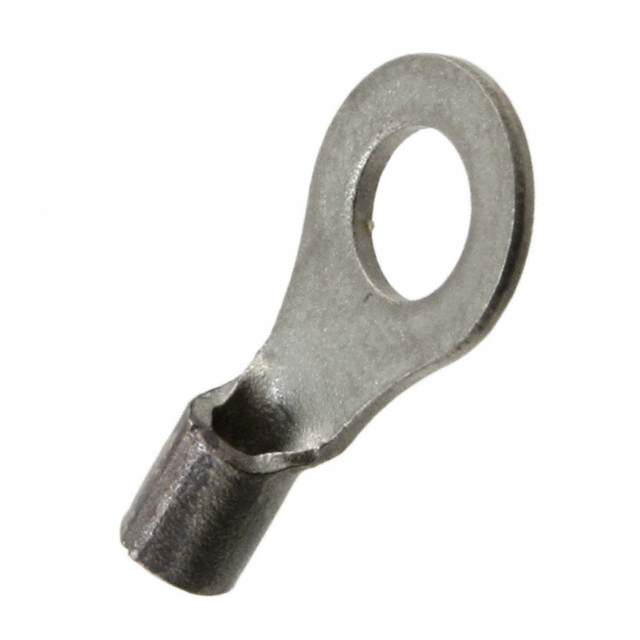

TE Connectivity Raychem Cable Protection 321895	0.76 mm	0.03 in		Brazed Seam High Temperature Serrated Termination	Circular	Free Hanging (In-Line)	Crimp	8 Stud	0.312 in	7.92 mm		Nickel	Non-Insulated	15.77 mm	0.621 in		22 AWG	16 AWG
TE Connectivity Raychem Cable Protection 3218-01-340010-CS2324																											Backshell Heat Shrink Adapter	Shielded
TE Connectivity Raychem Cable Protection 321884	0.76 mm	0.03 in		Brazed Seam High Temperature Serrated Termination	Circular	Free Hanging (In-Line)	Crimp					Nickel	Non-Insulated		0.449 "	4 Stud	22 AWG	16 AWG	5.54 mm	0.218 in						11.4 mm

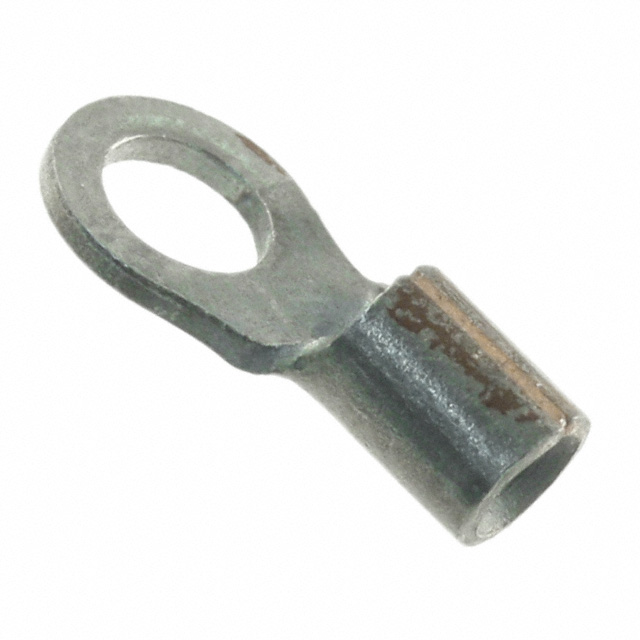

TE Connectivity Raychem Cable Protection 321885	0.76 mm	0.03 in		Brazed Seam High Temperature Serrated Termination	Circular	Free Hanging (In-Line)	Crimp	5 Stud				Nickel	Non-Insulated		0.449 "		22 AWG	16 AWG	5.54 mm	0.218 in						11.4 mm

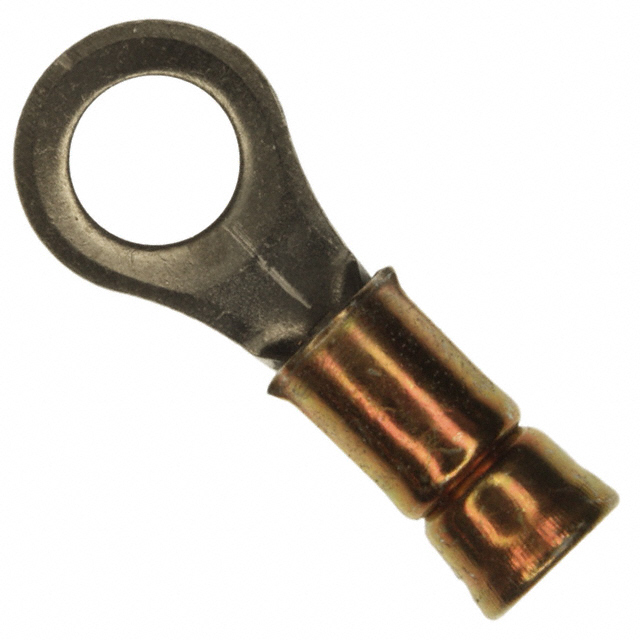

TE Connectivity Raychem Cable Protection 321893	0.79 mm	0.031 in		High Temperature Serrated Termination	Circular	Free Hanging (In-Line)	Crimp	8 Stud	0.281 in	7.14 mm		Nickel	Non-Insulated		0.749 in		22 AWG	16 AWG				0.14 in	0.105 in	3.56 mm	2.67 mm	19.02 mm

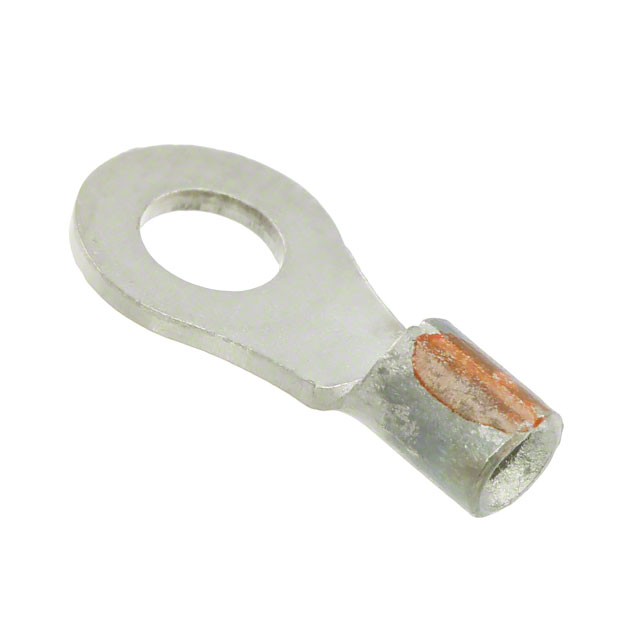

TE Connectivity Raychem Cable Protection 321889	0.76 mm	0.03 in		Brazed Seam High Temperature Serrated Termination	Circular	Free Hanging (In-Line)	Crimp		0.281 in	7.14 mm		Nickel	Non-Insulated	14.58 mm	0.574 in	6 Stud	22 AWG	16 AWG
