ATS-11F Series
Manufacturer: Advanced Thermal Solutions Inc.
Catalog

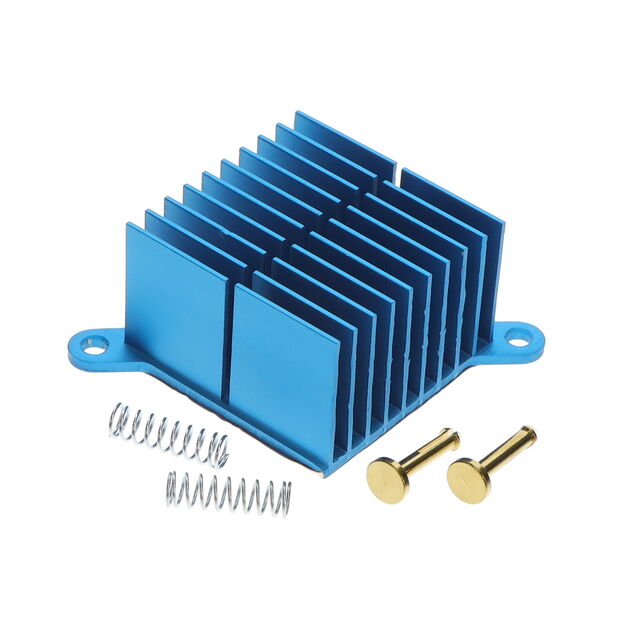

HEATSINK 35X35X30MM R-TAB
...
| Part | Package Cooled | Type | Shape | Attachment Method | Width [x] | Width | Material | Length [x] | Length [x] | Fin Height [z] | Fin Height [z] | Thermal Resistance @ Forced Air Flow | Material Finish | Fin Height | Fin Height | Width [x] | Width | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 1.378 in | 35 mm | Aluminum | 1.378 in | 35 mm | 1.181 in | 30 mm | 7.91 °C/W 100 LFM | Blue Anodized | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 1.575 in | Aluminum | Blue Anodized | 0.984 in | 25 mm | 40 mm | |||||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 2.126 " | Aluminum | 2.126 " | 54 mm | 0.394 in | 10 mm | 8.92 °C/W | Blue Anodized | 54 mm | ||||||
Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 1.378 in | 35 mm | Aluminum | 1.378 in | 35 mm | 6.36 °C/W | Blue Anodized | 1.378 in | 35 mm | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 2.362 in | Aluminum | 2.362 in | 60 mm | 0.472 in | 12 mm | 6.37 °C/W | Blue Anodized | 60 mm | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Rectangular Fins | Push Pin | 57.6 mm | Aluminum | 0.9 in | 22.86 mm | 6.4 °C/W | Blue Anodized | 2.267 in | 1.45 in | 36.83 mm | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 0.984 in | 25 mm | Aluminum | Blue Anodized | 0.59 " | 15 mm | 0.984 in | 25 mm | |||||||
Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 30 mm | Aluminum | 1.181 in | 30 mm | 19.22 °C/W | Blue Anodized | 0.59 " | 15 mm | 1.181 in | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 1.772 in | 45 mm | Aluminum | 1.772 " | 3.7 °C/W | Blue Anodized | 0.984 in | 25 mm | 45 mm | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Top Mount | Fins Square | Push Pin | 30 mm | Aluminum | 1.181 in | 30 mm | 0.394 in | 10 mm | 26.36 °C/W | Blue Anodized | 1.181 in |
