3856A Series
Manufacturer: Bourns Inc.
Beta
⌘K
ROTARY POTENTIOMETER, CERMET, 1 KOHM, 3.75 TURNS, LINEAR, 2 W, ± 10%, 3856 SERIES
| Part | Power (Watts) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Termination Style | Tolerance | Size - Body [diameter] | Size - Body [diameter] | Bushing Thread | Number of Gangs | Resistance (Ohms) | Actuator Type | Resistive Material | Temperature Coefficient | Adjustment Type | Built in Switch | Rotation | Mounting Type | Taper | Actuator Length [x] | Actuator Length [x] | Number of Turns | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

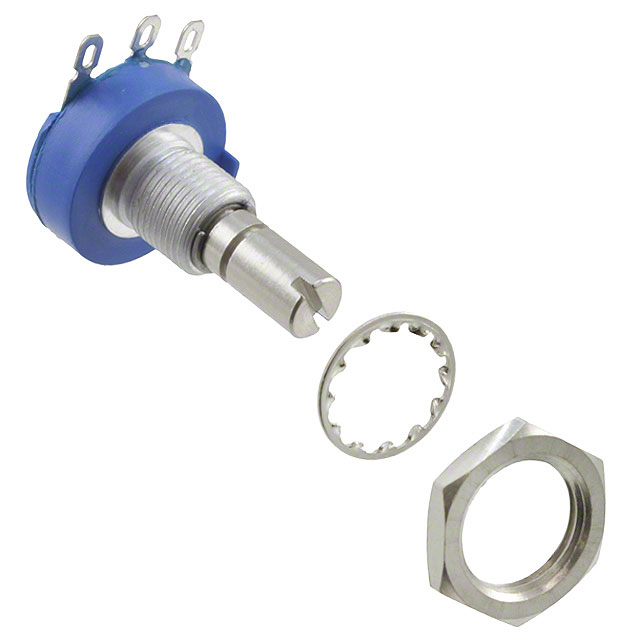

 Bourns Inc. | 2 W | 6.35 mm | 0.25 in | Solder Lug | 10 % | 19.05 mm | 0.75 " | 3/8-32 | 1 | 1k | Slotted | Cermet | 150 ppm/°C | User Defined | None | 1350 ° | Panel Mount | Linear | 0.875 in | 22.23 mm | 3.75 | ||

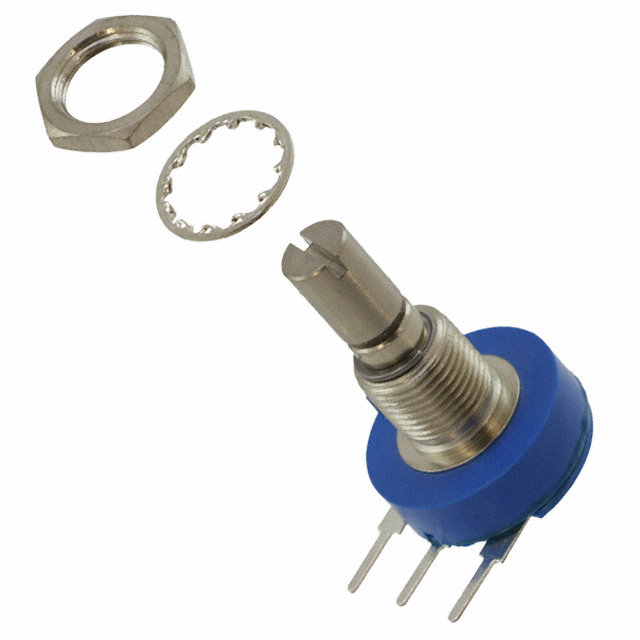

 Bourns Inc. | 2 W | 6.35 mm | 0.25 in | PC Pins | 10 % | 19.05 mm | 0.75 " | 3/8-32 | 1 | 10k | Slotted | Cermet | 150 ppm/°C | Side Adjustment | None | 1350 ° | Panel Mount | Linear | 0.875 in | 22.23 mm | 3.75 | ||
 Bourns Inc. | 2 W | 6.35 mm | 0.25 in | Solder Lug | 10 % | 19.05 mm | 0.75 " | 3/8-32 | 1 | Slotted | Cermet | 150 ppm/°C | User Defined | None | 1350 ° | Panel Mount | Linear | 0.875 in | 22.23 mm | 3.75 | 50 kOhms | ||
Bourns Inc. | 2 W | 6.35 mm | 0.25 in | Solder Lug | 10 % | 19.05 mm | 0.75 " | 3/8-32 | 1 | 10k | Slotted | Cermet | 150 ppm/°C | User Defined | None | 1350 ° | Panel Mount | Linear | 0.875 in | 22.23 mm | 3.75 | ||
Bourns Inc. | 2 W | 6.35 mm | 0.25 in | Solder Lug | 10 % | 19.05 mm | 0.75 " | 3/8-32 | 1 | Slotted | Cermet | 150 ppm/°C | User Defined | None | 1350 ° | Panel Mount | Linear | 0.875 in | 22.23 mm | 3.75 | 5 kOhms |
