2115 Series

Manufacturer: Oupiin

Catalog

PIN HEADER, DOUBLE ROW, 40 PINS,

Part	Contact Finish Thickness - Post	Material Flammability Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Height	Insulation Height	Contact Type	Contact Finish Thickness - Mating	Insulation Material	Fastening Type	Termination	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Finish - Post	Number of Positions Loaded	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Color	Features	Number of Rows [custom]	Number of Rows
Oupiin 2115-2X20G00DN/4U	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	2 A	Header Header Cuttable	0.079 "	2 mm	40	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square	2 mm	0.079 in	Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black	Board Guide	2
Oupiin 2115-1X40G00DA/4U	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	2 A 3 A	Header Header Cuttable	0.079 "	2 mm	40	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square			Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black			1
Oupiin 2115-1X04G00DB/4/2.8U	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	2 A 3 A	Header Header Cuttable	0.079 "	2 mm	4	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square			Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black			1
Oupiin 2115-1X04G00DB/4/2.8B	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	3 A	Header Header Cuttable	0.079 "	2 mm	4	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square			Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black			1
Oupiin 2115-2X22G00DN-4B	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	2 A	Header Header Cuttable	0.079 "	2 mm	44	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square	2 mm	0.079 in	Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black	Board Guide	2
Oupiin 2115-1X06G00DA-4U	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	2 A 3 A	Header Header Cuttable	0.079 "	2 mm	6	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square			Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black			1

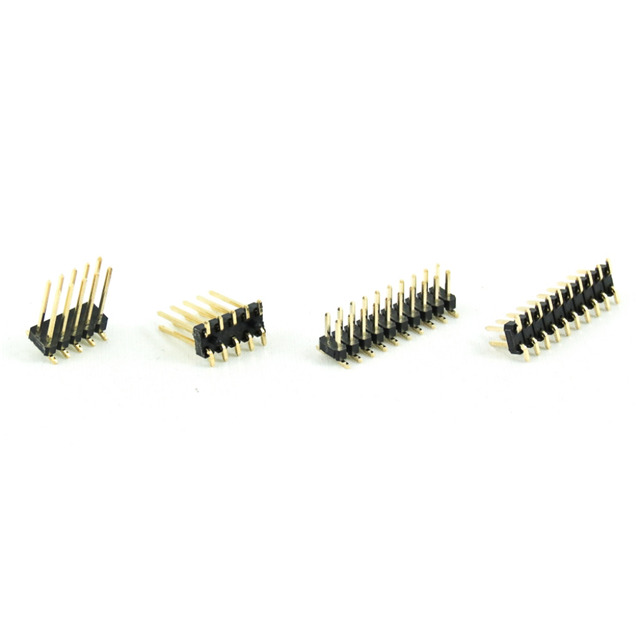

Oupiin 2115-2X04G00DN/4B	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	2 A	Header	0.079 "	2 mm	8	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square	2 mm	0.079 in	Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black	Board Guide	2
Oupiin 2115-1X04G00DA/4/2.8B	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	3 A	Header Header Cuttable	0.079 "	2 mm	4	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square			Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black			1
Oupiin 2115-1X04G00DA/4/2.8U	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	2 A 3 A	Header Header Cuttable	0.079 "	2 mm	4	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square			Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black			1
Oupiin 2115-2X12G00DN/4.0B	Flash	UL94 V-0	Brass	-40 C	105 ░C	Gold	2 A	Header Header Cuttable	0.079 "	2 mm	24	0.059 in	1.5 mm	Male Pin	Flash	Nylon 6T Polyamide (PA6T)	Push-Pull	Solder	Square	2 mm	0.079 in	Surface Mount	Gold	All	Unshrouded	4 mm	0.157 in	Black	Board Guide	2
