K10LCC-P Series
Manufacturer: ODU
Beta
⌘K

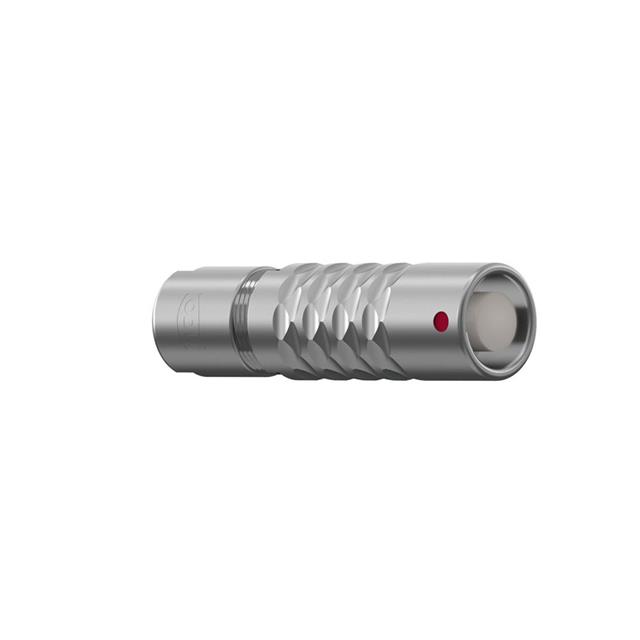

ODU MINI-SNAP RCEPT, INLINE, STY
| Part | Ingress Protection | Shell Size - Insert [custom] | Features | Orientation | Shell Material | Mounting Type | Color | Connector Type | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Insert Material | Primary Material | Backshell Material, Plating | Contact Material | Current Rating (Amps) | Shielding | Contact Finish - Mating | Fastening Type | Applications | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP50 - Dust Protected | 0 | Backshell | C | Brass | Free Hanging (In-Line) | Silver | Receptacle Female Sockets | Chrome over Nickel | 120 °C | -40 C | 400 V | Polyetheretherketone (PEEK) | Metal | Brass Chrome over Nickel | Brass | 7.5 A | Unshielded | Gold | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | ||
IP50 - Dust Protected | 0 | Backshell | C | Brass | Free Hanging (In-Line) | Silver | Receptacle Female Sockets | Chrome over Nickel | 120 °C | -40 C | 400 V | Polyetheretherketone (PEEK) | Metal | Brass Chrome over Nickel | Brass | 7.5 A | Unshielded | Gold | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | ||
IP50 - Dust Protected | 0 | Backshell | C | Brass | Free Hanging (In-Line) | Silver | Receptacle Female Sockets | Chrome over Nickel | 120 °C | -40 C | 200 V | Polyetheretherketone (PEEK) | Metal | Brass Chrome over Nickel | Brass | 4 A | Unshielded | Gold | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 9 |
