5072C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

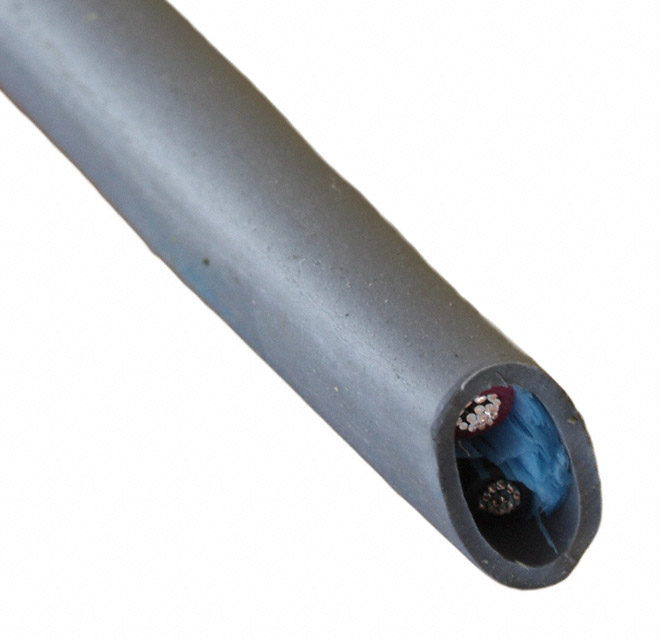

CABLE 2COND 16AWG SLATE 500'
| Part | Number of Conductors | Jacket (Insulation) Material | Length | Length | Jacket Color | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Voltage | Wire Gauge | Ratings | Conductor Strand [custom] | Conductor Strand [diameter] | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 2 | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Slate | Copper Tinned | 0.813 mm | 0.032 in | Biological Compatibility Rip Cord | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 16 AWG | ISO 10993 UL Style 2464 | 19 | 0.0117 in | Communication Control | 0.25 " | 6.35 mm | Multi-Conductor |
ALPHA WIRE | 2 | Poly-Vinyl Chloride (PVC) | Slate | Copper Tinned | 0.813 mm | 0.032 in | Biological Compatibility Rip Cord | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 16 AWG | ISO 10993 UL Style 2464 | 19 | 0.0117 in | Communication Control | 0.25 " | 6.35 mm | Multi-Conductor |
