0900-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

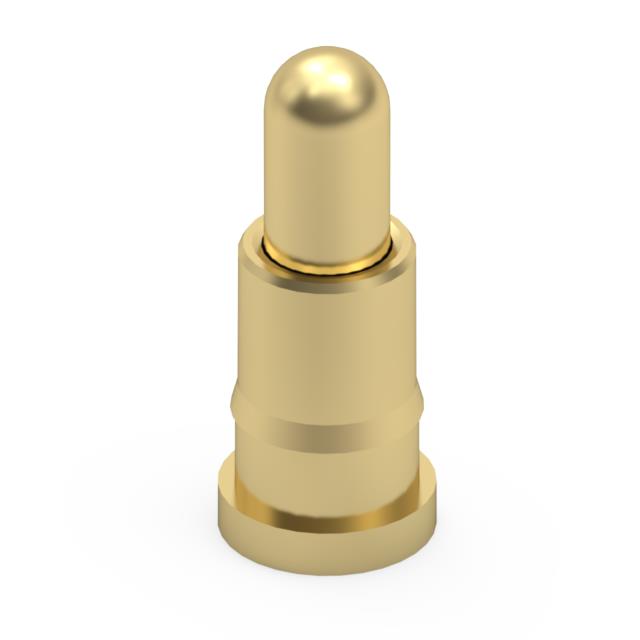

SURFACE MOUNT SPRING-LOADED PIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Minimum Working Height | Minimum Working Height | Contact Finish | Contact Material | Recommended Working Height | Recommended Working Height | Mounting Type | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Initial | Mating Cycles | Pad Layout Dimension | Pad Layout Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.177 in | 4.5 mm | 5.2 A | 3.1 mm | 0.122 in | Gold | Brass Alloy | 0.15 in | 3.8 mm | Surface Mount | 60 gf | 0.042 in | 1.07 mm | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 10 gf | 1000000 | 0.072 in | 1.83 mm |
