NGCMA Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION DPST 6A 120V

Part	Differential Travel	Differential Travel	Switch Function	Overtravel	Overtravel	Pretravel	Pretravel	Operating Position	Operating Position	Voltage Rating - AC	Ingress Protection	Mechanical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Release Force	Operating Force	Voltage Rating - DC	Mounting Type	Electrical Life	Circuit	Current Rating (Amps)	Features

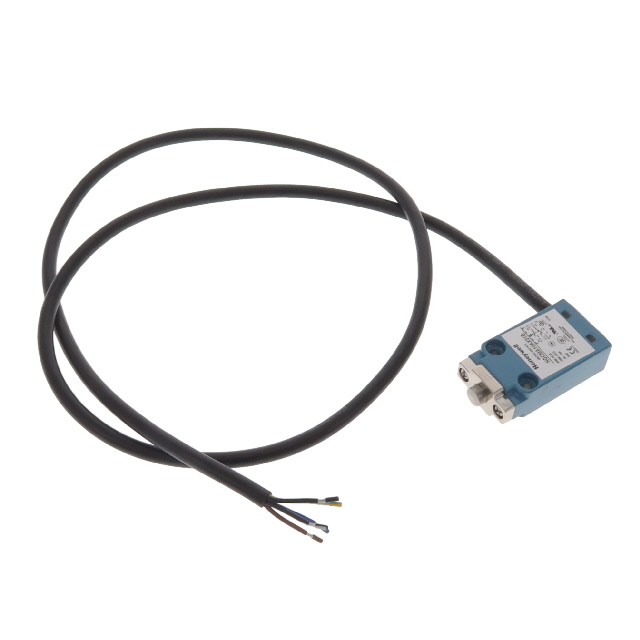

Honeywell Sensing and Productivity Solutions NGCMA10AX01B	0.047 in	1.2 mm	Off-Mom On-Mom	0.193 in	4.9 mm	2.1 mm	0.083 in	0.083 in	2.1 mm	120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Cable Leads	-25 °C	75 ░C	Round (Pin Plunger)	306 gf	1122 gf	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA
Honeywell Sensing and Productivity Solutions NGCMA50AX01C	0.047 in	1.2 mm	Off-Mom On-Mom	0.193 in	4.9 mm	2.1 mm	0.083 in	0.083 in	2.1 mm	120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Cable Leads	-25 °C	75 ░C	Roller Plunger	306 gf	1122 gf	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA
Honeywell Sensing and Productivity Solutions NGCMA10AX01L	0.047 in	1.2 mm	Off-Mom On-Mom	0.193 in	4.9 mm	2.1 mm	0.083 in	0.083 in	2.1 mm	120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Cable Leads	-25 °C	75 ░C	Cross Roller Plunger	306 gf	1122 gf	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA

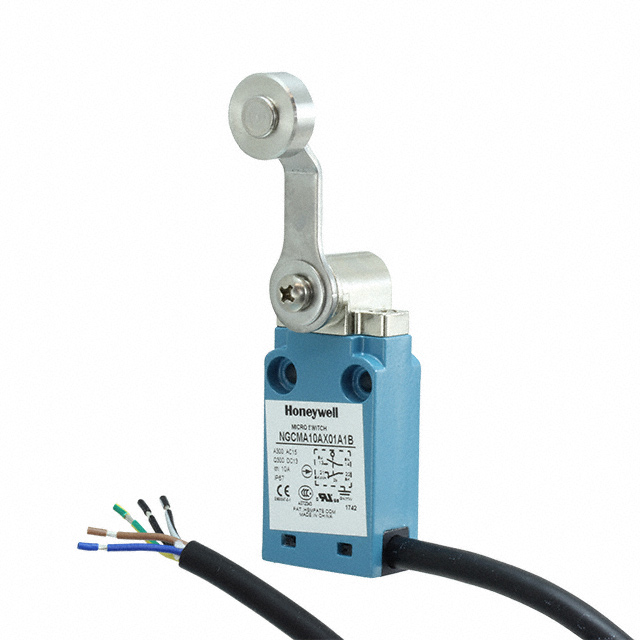

Honeywell Sensing and Productivity Solutions NGCMA10AX01A1B	15 °		Off-Mom On-Mom	65 °			25 °	25 °		120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Cable Leads	-25 °C	75 ░C	Roller Side Rotary	2.534 gfm	18 gfm	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA	Stainless Steel Roller

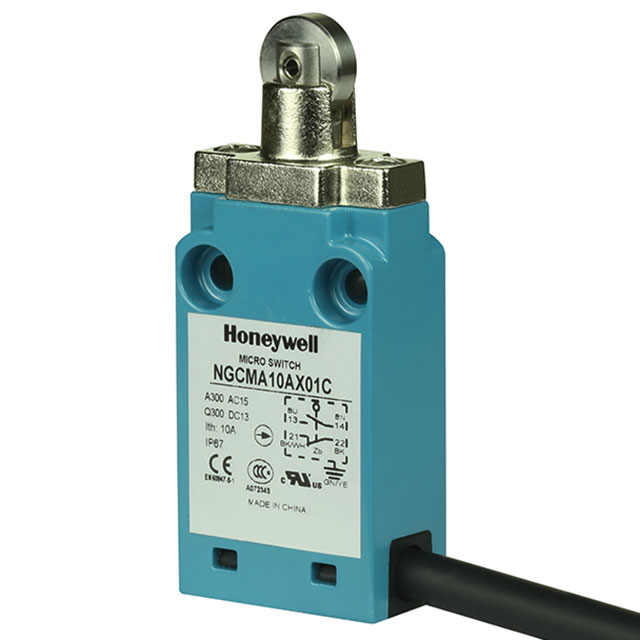

Honeywell Sensing and Productivity Solutions NGCMA10AX01C	0.047 in	1.2 mm	Off-Mom On-Mom	0.193 in	4.9 mm	2.1 mm	0.083 in	0.083 in	2.1 mm	120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Cable Leads	-25 °C	75 ░C	Roller Plunger	306 gf	1122 gf	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA

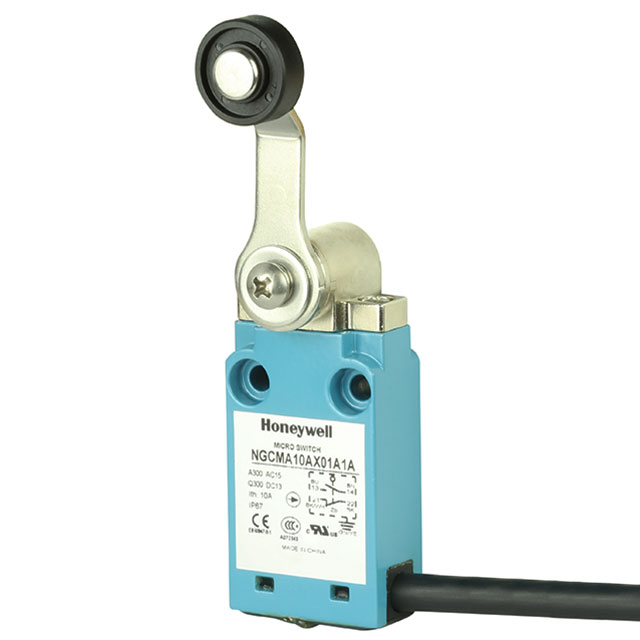

Honeywell Sensing and Productivity Solutions NGCMA10AX01A1A	15 °		Off-Mom On-Mom	65 °			25 °	25 °		120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Cable Leads	-25 °C	75 ░C	Roller Side Rotary	2.534 gfm	18 gfm	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA	Nylon Roller
Honeywell Sensing and Productivity Solutions NGCMA00NX01B	0.047 in	1.2 mm	Off-Mom On-Mom	0.193 in	4.9 mm	2.1 mm	0.083 in	0.083 in	2.1 mm	120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Connector	-25 °C	75 ░C	Round (Pin Plunger)	306 gf	1122 gf	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA
Honeywell Sensing and Productivity Solutions NGCMA50AX01B	0.047 in	1.2 mm	Off-Mom On-Mom	0.193 in	4.9 mm	2.1 mm	0.083 in	0.083 in	2.1 mm	120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Cable Leads	-25 °C	75 ░C	Round (Pin Plunger)	306 gf	1122 gf	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA
Honeywell Sensing and Productivity Solutions NGCMA00PX01A1A	15 °		Off-Mom On-Mom	65 °			25 °	25 °		120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Connector	-25 °C	75 ░C	Roller Side Rotary	2.534 gfm	18 gfm	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA	Nylon Roller

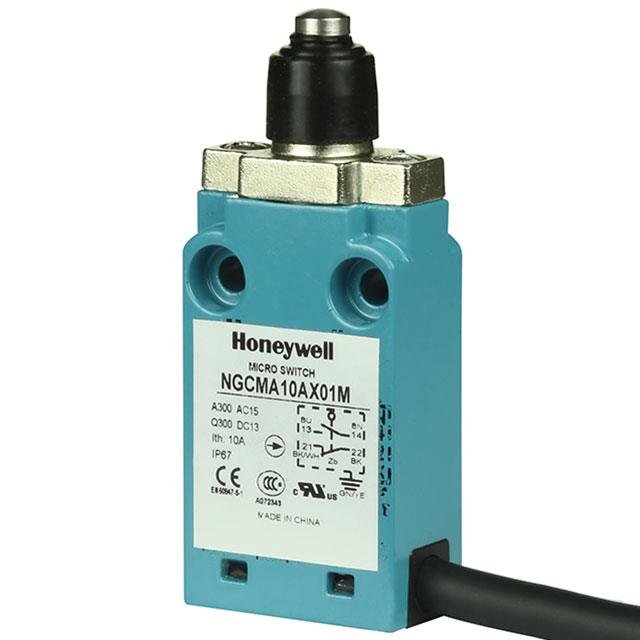

Honeywell Sensing and Productivity Solutions NGCMA10AX01M	0.047 in	1.2 mm	Off-Mom On-Mom	0.193 in	4.9 mm	2.1 mm	0.083 in	0.083 in	2.1 mm	120 V	IP67 - Dust Tight Waterproof	5000000 Cycles	Cable Leads	-25 °C	75 ░C	Round (Pin Plunger)	306 gf	1122 gf	125 VDC	Chassis Mount	500000 Cycles	DPST-NO/NC	6 A 550 mA	Actuator Seal Boot
