H10B Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HOOD SIDE ENTRY SZ10B M25

Part	Lock Location	Housing Material	Thread Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Housing Color	Size	Housing Finish	Ingress Protection	Size / Dimension [z]	Size / Dimension [y]	Features

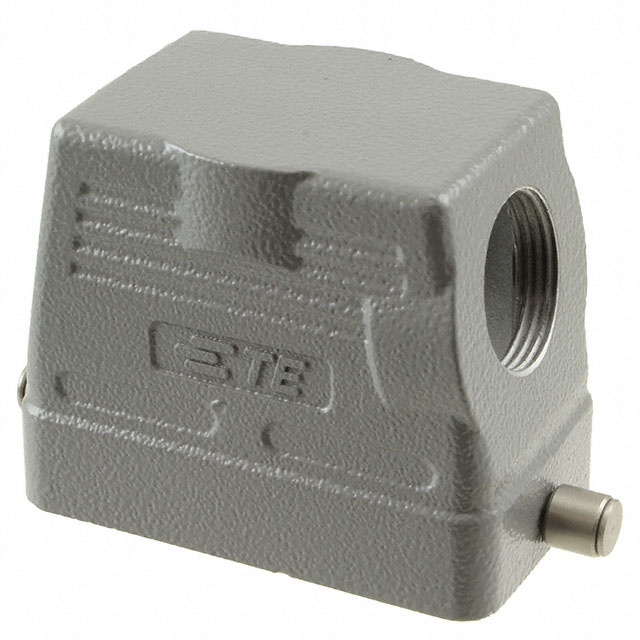

TE Connectivity AMP Connectors H10B-TS-RO-M25	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	M25	60 mm	2.874 "	73 mm	1.693 "	43 mm	2.362 in	125 °C	-40 C	Hood	Side Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant

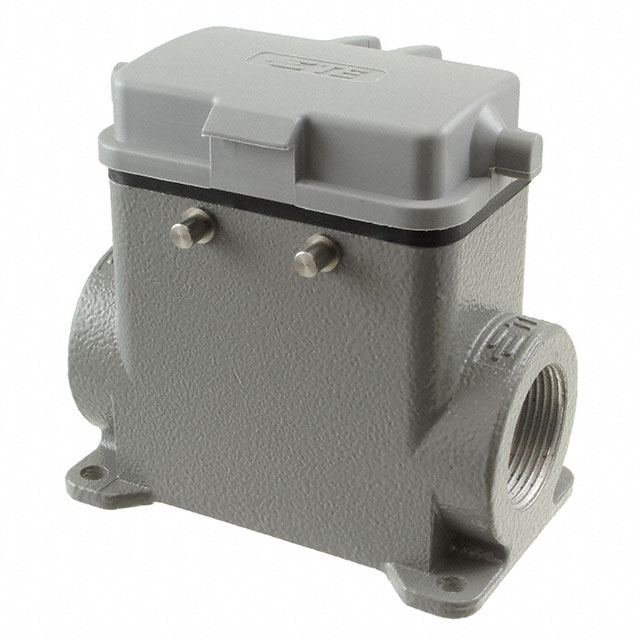

TE Connectivity AMP Connectors H10B-SDRH-BO-2PG21	Locking Clip (2) on Hood	Aluminum Alloy Die Cast	PG21		3.701 in	94 mm	2.244 "		2.976 in	125 °C	-40 C	Base - Box Mount	Side Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant	75.6 mm	57 mm

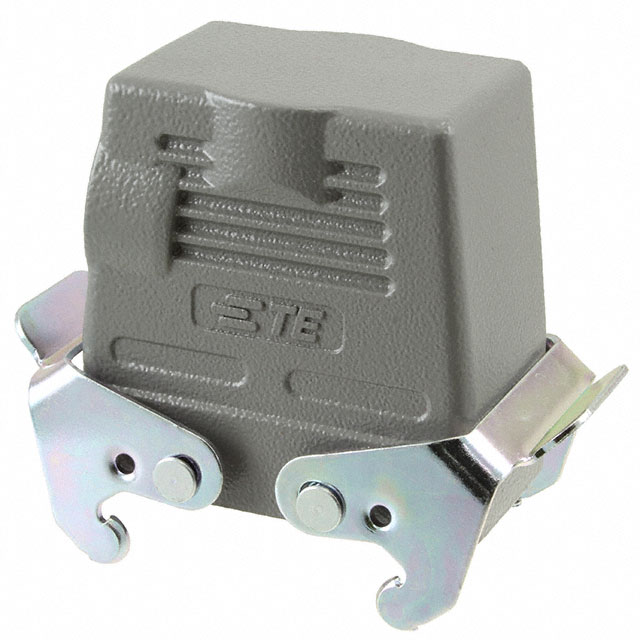

TE Connectivity AMP Connectors H10B-TSBH-PG29	Locking Clip (2) on Hood	Aluminum Alloy Die Cast	PG29	72 mm	2.874 "	73 mm	1.693 "	43 mm	2.835 "	125 °C	-40 C	Hood	Side Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant
TE Connectivity AMP Connectors H10B-AG-LB	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast								125 °C	-40 C	Base - Panel Mount	Bottom Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant

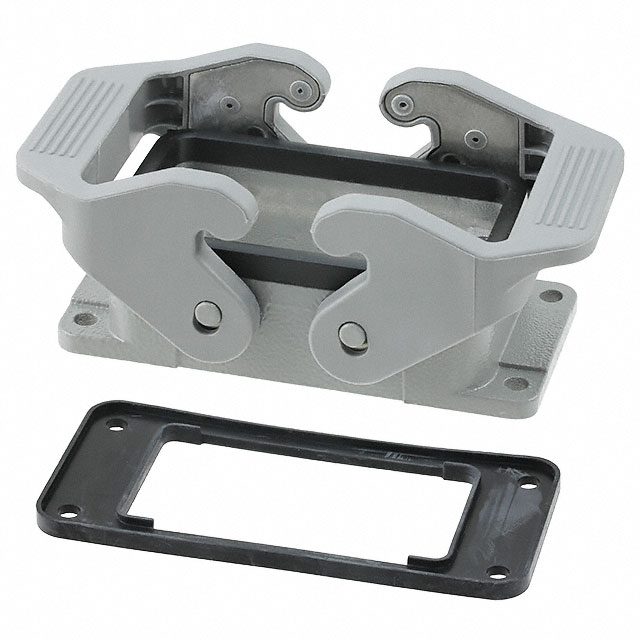

TE Connectivity AMP Connectors H10B-AG-SL	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast		29.8 mm	3.748 "	95.2 mm	1.799 in	45.7 mm	1.173 "	125 °C	-40 C	Base - Panel Mount	Bottom Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant

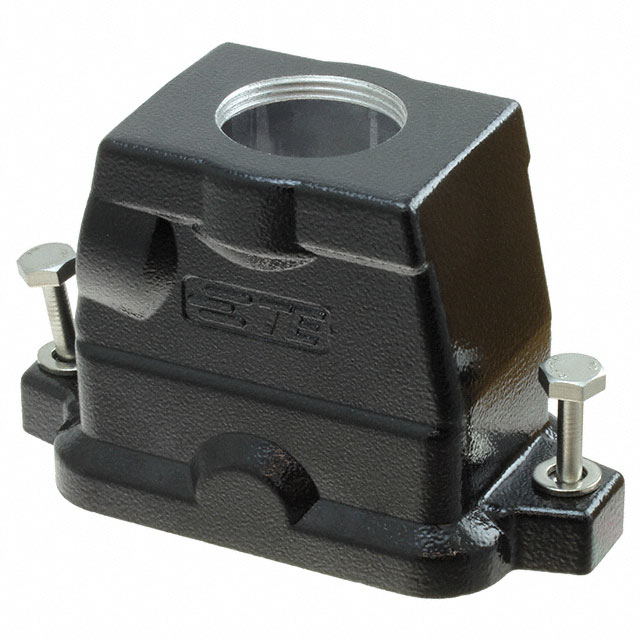

TE Connectivity AMP Connectors H10BPR-TGHC-M32-EMC-C	Screw Locks on Hood	Aluminum Alloy Die Cast	M32	70 mm	4.331 in	110 mm	2.094 "	53.2 mm	2.756 "	125 °C	-40 C	Hood	Top Entry	Black	H10B	Powder Coated	IP68 - Dust Tight Waterproof			Corrosion Resistant EMC Resistant

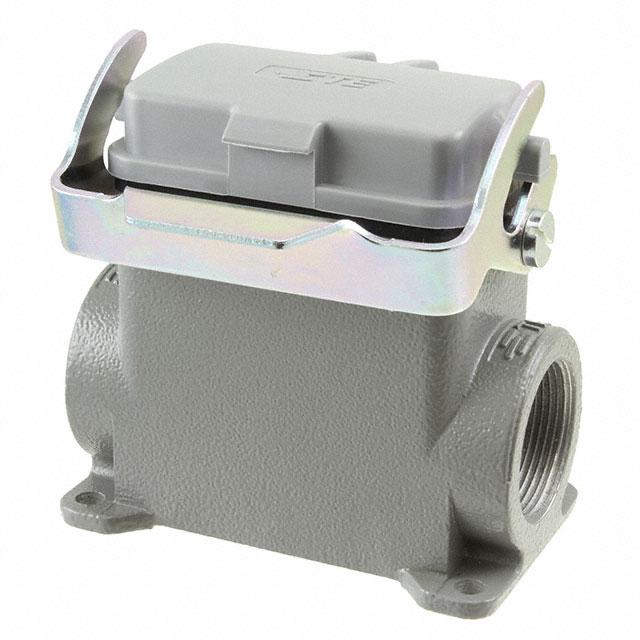

TE Connectivity AMP Connectors H10B-SDRH-LB-2M32	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	M32		3.701 in	94 mm	2.244 "		2.976 in	125 °C	-40 C	Base - Box Mount	Side Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant	75.6 mm	57 mm
TE Connectivity AMP Connectors H10B-TG-RO-M25	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	M25	60 mm	2.874 "	73 mm	1.693 "	43 mm	2.362 in	125 °C	-40 C	Hood	Top Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant

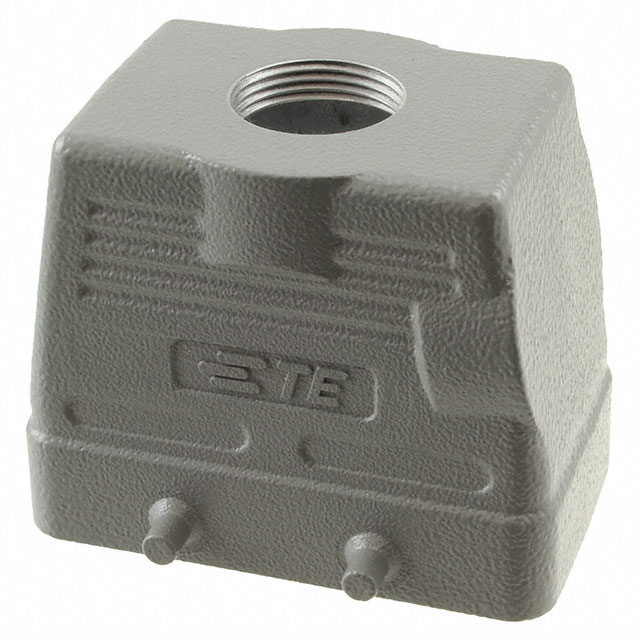

TE Connectivity AMP Connectors H10B-TG-PG16	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	PG16	60 mm	2.874 "	73 mm	1.693 "	43 mm	2.362 in	125 °C	-40 C	Hood	Top Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant
TE Connectivity AMP Connectors H10B-SDR-LB-PG16	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	PG16		3.701 in	94 mm	2.047 in		2.386 in	125 °C	-40 C	Base - Box Mount	Side Entry	Gray	10B	Powder Coated	IP65 - Dust Tight Water Resistant	60.6 mm	52 mm	Cover
