JN1AS04M Series

Catalog

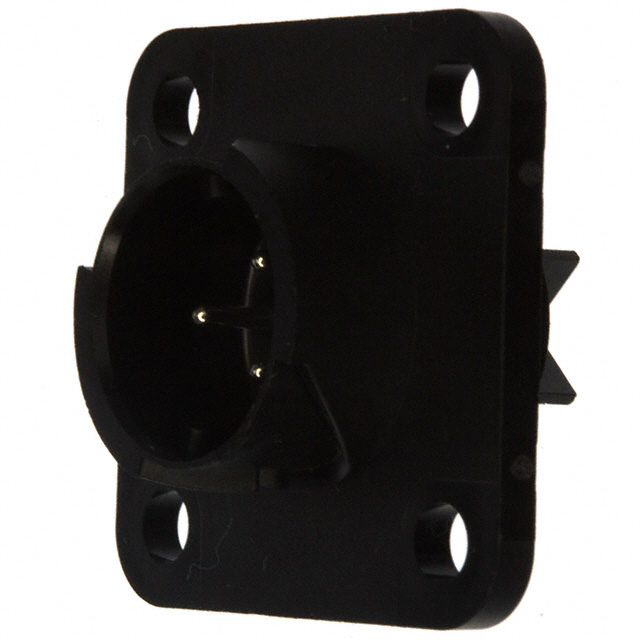

CONN RCPT MALE 4P SILV SLDR CUP

Part	Color	Shell Size - Insert	Orientation	Contact Material	Current Rating (Amps)	Shell Material	Mounting Feature	Mounting Type	Voltage Rating	Ingress Protection	Fastening Type	Contact Finish - Mating	Primary Material	Connector Type	Insert Material	Cable Opening	Cable Opening	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Orientation [x]
JAE Electronics JN1AS04MK2R	Black	S	N (Normal)	Copper Alloy	5 A	Synthetic Resin	Flange	Panel Mount	200 VAC	IP67 - Dust Tight Waterproof	Push-Twist	Silver	Plastic	Receptacle Male Pins	Synthetic Resin	0.63 in	16 mm	4	-20 ░C	125 °C
JAE Electronics JN1AS04MK1X	Black	S		Copper Alloy	5 A	Synthetic Resin	Flange	Panel Mount	200 VAC	IP67 - Dust Tight Waterproof	Push-Twist	Silver	Plastic	Receptacle Male Pins	Synthetic Resin	0.591 in	15 mm	4	-20 ░C	125 °C	X
JAE Electronics JN1AS04MK1	Black	S	N (Normal)	Copper Alloy	5 A	Synthetic Resin	Flange	Panel Mount	200 VAC	IP67 - Dust Tight Waterproof	Push-Twist	Silver	Plastic	Receptacle Male Pins	Synthetic Resin	0.591 in	15 mm	4	-20 ░C	125 °C
JAE Electronics JN1AS04MK2	Black	S	N (Normal)	Copper Alloy	5 A	Synthetic Resin	Flange	Panel Mount	200 VAC	IP67 - Dust Tight Waterproof	Push-Twist	Silver	Plastic	Receptacle Male Pins	Synthetic Resin	0.63 in	16 mm	4	-20 ░C	125 °C
