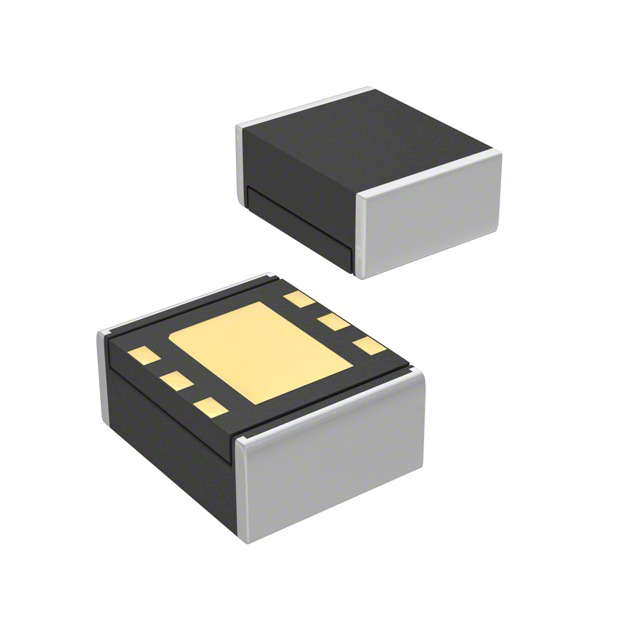

XCL202 Series

Catalog

400MA INDUCTOR BUILT-IN PWM STEP

Part	Supplier Device Package	Package / Case	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Applications	Voltage - Output 1	Voltage - Input (Min) [Min]
Torex Semiconductor Ltd XCL202B091ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount
Torex Semiconductor Ltd XCL202B121ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	400 mA	85 °C	-40 C	Non-Isolated PoL Module	6 V	92 %	1	ITE (Commercial)	1.2 V	2 V
Torex Semiconductor Ltd XCL202B3A1ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount
Torex Semiconductor Ltd XCL202B141ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	400 mA	85 °C	-40 C	Non-Isolated PoL Module	6 V	92 %	1	ITE (Commercial)	1.4 V	2 V
Torex Semiconductor Ltd XCL202B231ER-G	CL-2025-02	6-TDFN Exposed Pad	Surface Mount	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	400 mA	85 °C	-40 C	Non-Isolated PoL Module	6 V	92 %	1	ITE (Commercial)	2.3 V	2 V
Torex Semiconductor Ltd XCL202B1C1ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount
Torex Semiconductor Ltd XCL202B1M1ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount
Torex Semiconductor Ltd XCL202B0L1ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount
Torex Semiconductor Ltd XCL202B3H1ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount
Torex Semiconductor Ltd XCL202B131ER-G	CL-2025-02	8-TDFN Exposed Pad	Surface Mount
