PQDE6W Series

Manufacturer: CUI Inc.

Catalog

Catalog

DC DC CONVERTER 24V 6W

...

Part	Applications	Efficiency	Mounting Type	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Power (Watts)	Approval Agency	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]	Number of Outputs	Current - Output (Max) [Min]	Voltage - Output 2	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Input Type	Standard Number	Current - Output (Max)	Features
CUI Inc. PQDE6W-Q110-S24-D	ITE (Commercial)	86 %	Through Hole	2250 VDC	24 V	160 V	-40 °C	85 °C	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	6 W	CE	40 V	6-DIP Module 4 Leads	250 mA	1
CUI Inc. PQDE6W-Q24-D5-DIN	ITE (Commercial)	83 %		1.5 kV	5 V		-40 °C	85 °C	1.24 in	31.5 mm	2.99 in	0.87 in	22.2 mm	76 mm		6 W	CE cURus			600 mA	2	600 mA	-5 V	10 V	36 V	DC

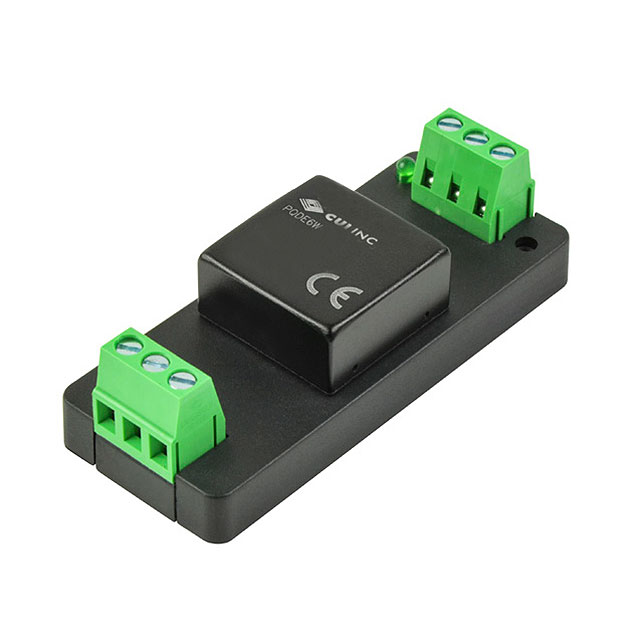

CUI Inc. PQDE6W-Q48-D12-T	ITE (Commercial)	87 %	Chassis Mount	1.5 kV	12 V	75 V	-40 °C	85 °C	1.24 in	31.5 mm	2.99 in	0.84 in	21.2 mm	76 mm	Enclosed	6 W	EN	19 V			2		-12 V				55024 55032	250 mA

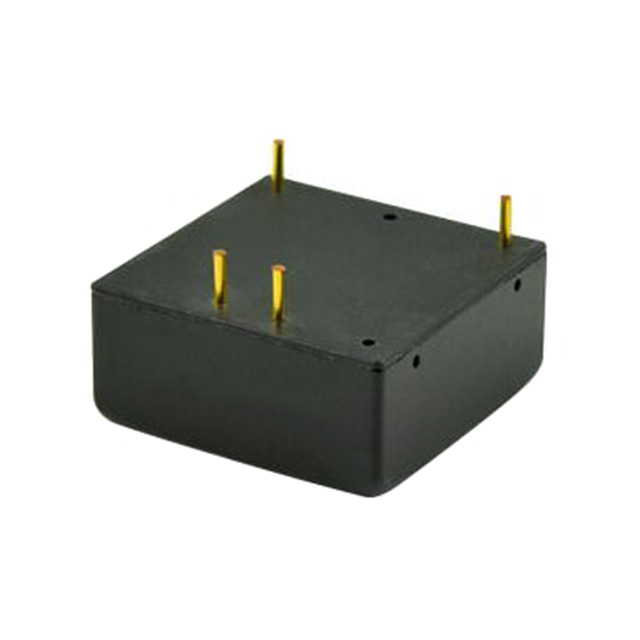

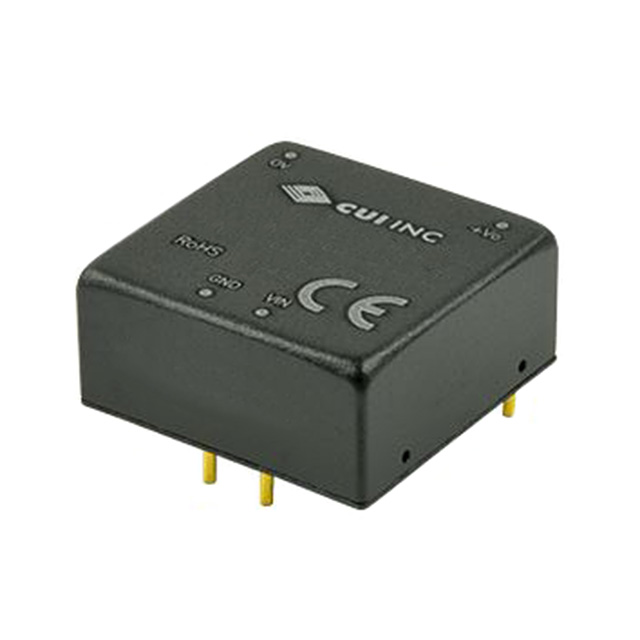

CUI Inc. PQDE6W-Q24-S12-D	ITE (Commercial)	87 %	Through Hole	1.5 kV	12 V	36 V	-40 °C	85 °C	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	6 W	CB Scheme EN IEC UL	9 V	5-DIP Module 4 Leads	500 mA	1						55024 55032 Class A 60950-1		OCP OVP SCP UVLO
CUI Inc. PQDE6W-Q110-S15-H-T	ITE (Commercial)	85 %	Chassis Mount	2250 VDC	15 V	160 V	-40 °C	85 °C	1.24 in	31.5 mm	2.99 in	0.99 "	25.2 mm	76 mm	Enclosed	6 W	CE	40 V		400 mA	1						62368-1

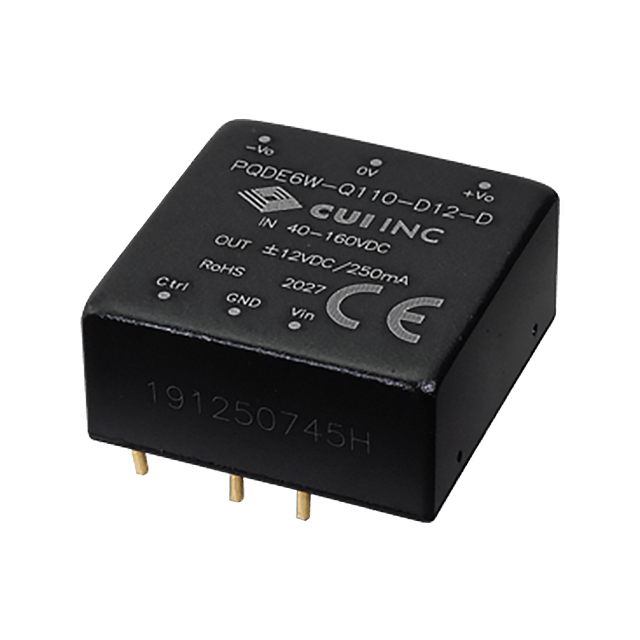

CUI Inc. PQDE6W-Q110-D12-D	ITE (Commercial)	84 %	Through Hole	2250 VDC	12 V	160 V	-40 °C	85 °C	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	6 W	CE	40 V	6-DIP Module		2		-12 V					250 mA
CUI Inc. PQDE6W-Q110-D5-T	ITE (Commercial)	80 %	Chassis Mount	2250 VDC	5 V	160 V	-40 °C	85 °C	1.24 in	31.5 mm	2.99 in	0.84 in	21.2 mm	76 mm	Enclosed	6 W	CE	40 V		600 mA	2	600 mA	-5 V				62368-1

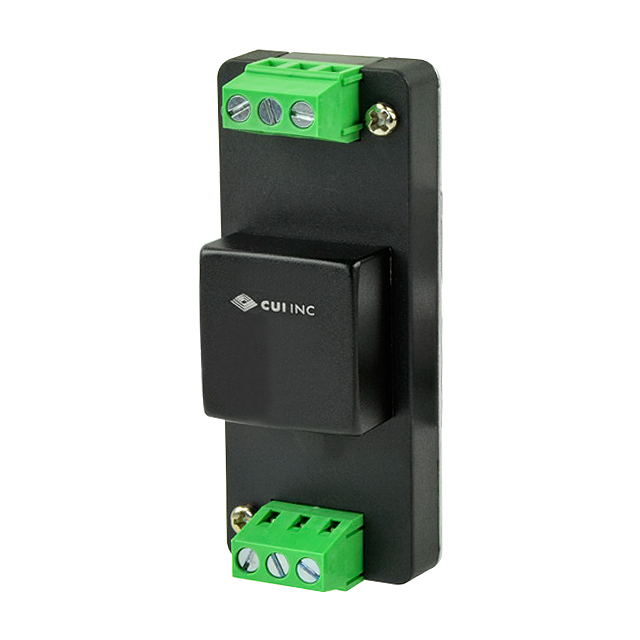

CUI Inc. PQDE6W-Q24-D15-DIN	ITE (Commercial)	88 %		1.5 kV	15 V		-40 °C	85 °C	1.24 in	31.5 mm	2.99 in	0.87 in	22.2 mm	76 mm		6 W	CE cURus				2		-15 V	10 V	36 V	DC
CUI Inc. PQDE6W-Q110-S5-H-T	ITE (Commercial)	80 %	Chassis Mount	2250 VDC	5 V	160 V	-40 °C	85 °C	1.24 in	31.5 mm	2.99 in	0.99 "	25.2 mm	76 mm	Enclosed	6 W	CE	40 V		1.2 A	1						62368-1
CUI Inc. PQDE6W-Q110-D12-DIN	ITE (Commercial)	84 %		2250 VDC	12 V		-40 °C	85 °C	31.5 mm	1.24 in	76 mm	25.8 mm	1.02 in	2.99 in		6 W	CE				2		-12 V	40 V	160 V	DC	62368-1	250 mA
