03KR105 Series

Catalog

PRECISION 3.5 TESTPORT ADAPTER

Part	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Insertion Loss	Center Contact Material	Body Material	Convert From (Adapter End)	Style	Frequency - Max [Max]	Adapter Series	Conversion Type	Convert To (Adapter End)	Adapter Type	Center Contact Plating	Center Gender	Impedance	Mounting Type

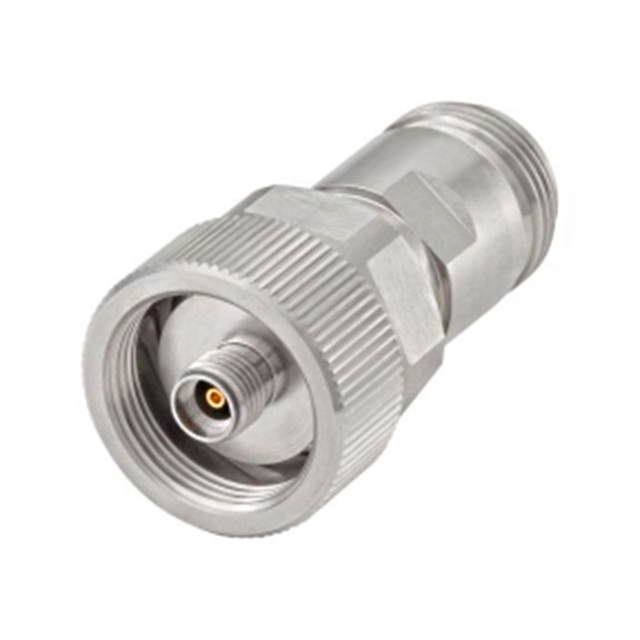

Rosenberger 03KR105-K0AS3	500	85 °C	-40 C	Polyphenylene Ether (PPE)	0.21 dB	Beryllium Copper	Stainless Steel	3.5mm Jack Female Socket	Straight	18 GHz	RPC-3.50 to RPC-N	Between Series	N Jack Female Socket	Jack to Jack	Gold	Female to Female	50 Ohms	Free Hanging (In-Line)

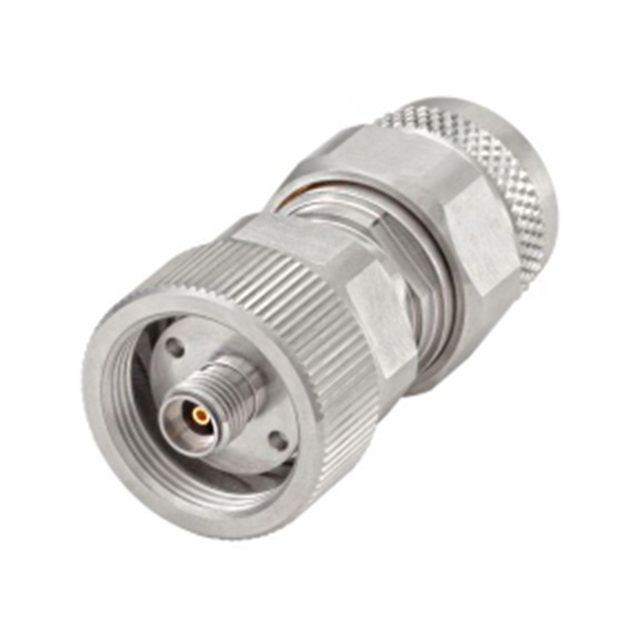

Rosenberger 03KR105-S0AS3	500	85 °C	-40 C	Polyphenylene Ether (PPE)	0.21 dB	Beryllium Copper	Stainless Steel	3.5mm Jack Female Socket	Straight	18 GHz	RPC-3.50 to RPC-N	Between Series	N Plug Male Pin	Plug to Jack	Gold		50 Ohms	Free Hanging (In-Line)
