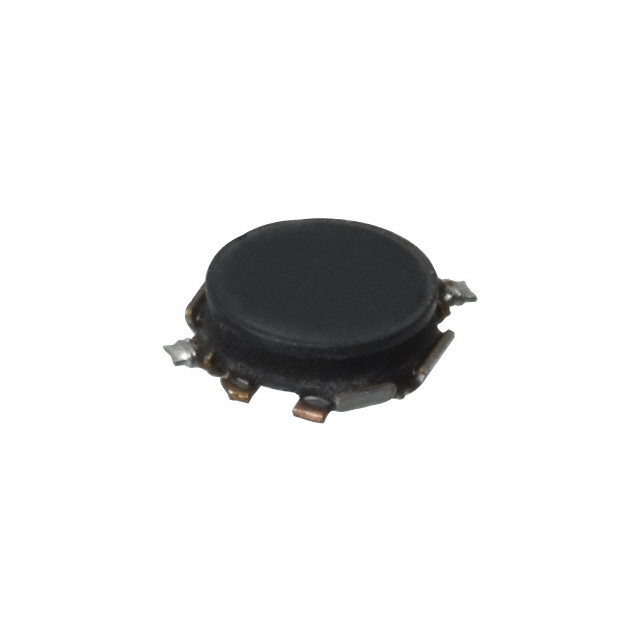

ELC-3FN Series

Catalog

FIXED IND 10UH 530MA 430MOHM SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Inductance Frequency - Test	Shielding	Current Rating (Amps)	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	DC Resistance (DCR)	Mounting Type
Panasonic Industrial Automation Sales ELC-3FN100M	1.2 mm	0.047 in	Nonstandard	100 kHz	Unshielded	0.53 A	10 µH	0.126 in	3.2 mm	0.126 "	3.2 mm	20 %	430 mOhm	Surface Mount
Panasonic Industrial Automation Sales ELC-3FN470M	1.2 mm	0.047 in	Nonstandard	100 kHz	Unshielded	0.23 A	47 µH	0.126 in	3.2 mm	0.126 "	3.2 mm	20 %	2.45 Ohm	Surface Mount
Panasonic Industrial Automation Sales ELC-3FN2R2N	1.2 mm	0.047 in	Nonstandard	100 kHz	Unshielded	1 A	2.2 µH	0.126 in	3.2 mm	0.126 "	3.2 mm	30 %	120 mOhm	Surface Mount
