TPS65130 Series

Catalog

SPLIT-RAIL CONVERTER WITH DUAL, POSITIVE AND NEGATIVE OUTPUTS (300MA TYP)

Part	Output Configuration	Package / Case	Voltage - Output (Min/Fixed)	Supplier Device Package	Mounting Type	Frequency - Switching	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output (Max) [Max]	Topology	Function	Voltage - Input (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Output	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Regulator Topology	Contents	Utilized IC / Part
Texas Instruments TPS65130RGET	Positive and Negative (Dual Rail)	24-VFQFN Exposed Pad	-2 V 3.2 V	24-VQFN (4x4)	Surface Mount	1.38 MHz	2.7 V	2	-15 V 15 V	Boost Buck-Boost	Step-Up Step-Up/Step-Down	5.5 V	Adjustable	85 C	-40 ¯C
Texas Instruments TPS65130RGER	Positive and Negative (Dual Rail)	24-VFQFN Exposed Pad	-2 V 3.2 V	24-VQFN (4x4)	Surface Mount	1.38 MHz	2.7 V	2	-15 V 15 V	Boost Buck-Boost	Step-Up Step-Up/Step-Down	5.5 V	Adjustable	85 C	-40 ¯C

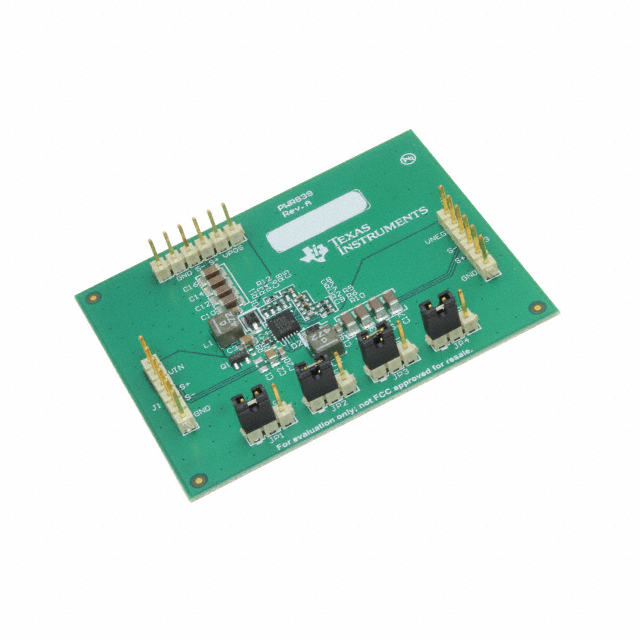

Texas Instruments TPS65130EVM-839						1.38 MHz										Fully Populated	2	2 Non-Isolated Outputs Non-Isolated	Board(s)	-5 V 8 V	DC/DC Positive and Negative	5.5 V	2.7 V	0.2 A 250 mA	Boost	Board(s)	TPS65130
Texas Instruments TPS65130RGETG4	Positive and Negative (Dual Rail)	24-VFQFN Exposed Pad	-2 V 3.2 V	24-VQFN (4x4)	Surface Mount	1.38 MHz	2.7 V	2	-15 V 15 V	Boost Buck-Boost	Step-Up Step-Up/Step-Down	5.5 V	Adjustable	85 C	-40 ¯C
