ACB62 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

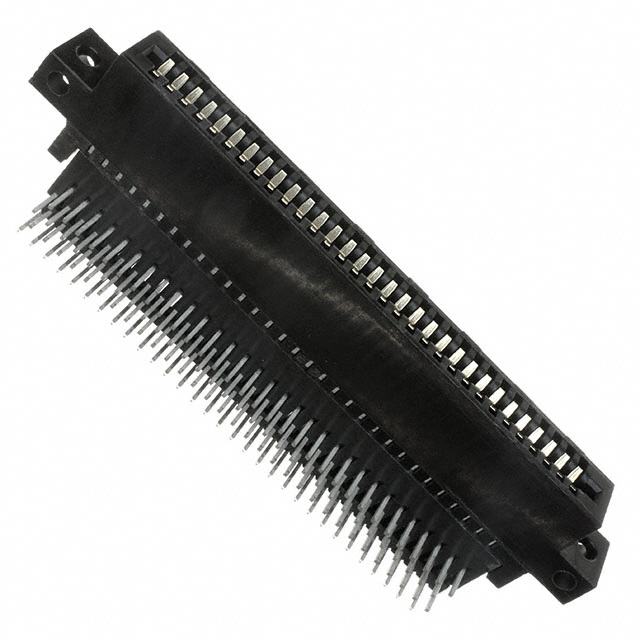

CONN EDGE DUAL FML 124POS 0.100
| Part | Contact Type | Card Type | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Features | Card Thickness | Card Thickness | Color | Material - Insulation | Contact Material | Number of Rows [custom] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch | Pitch | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Cantilever | Non Specified - Dual Edge Bi-Level | 62 | 150 °C | -65 ░C | Bi-Level - High Density | 1.57 mm | 0.062 in | Black | Polyphenylene Sulfide (PPS) | Beryllium Copper | 2 | 124 | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | Dual | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm | Female | Solder | Right Angle Through Hole |
