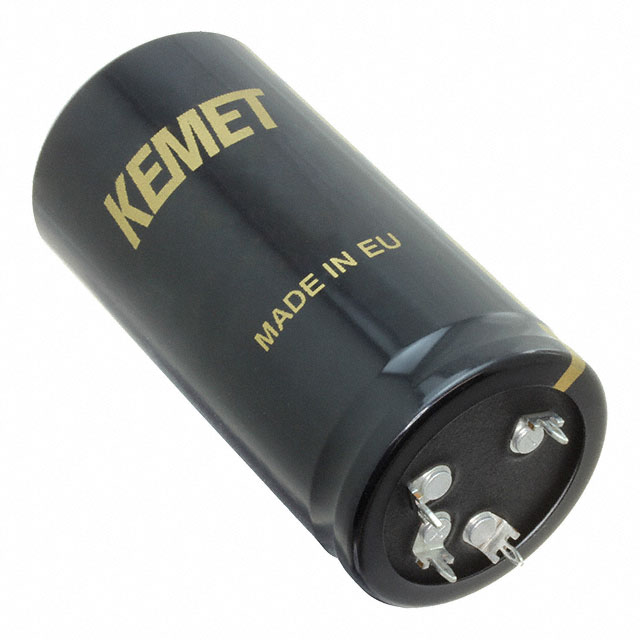

ALF20C Series

Manufacturer: KEMET

Catalog

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN PRESSFIT 250V 1KUF 15K HRS LIFE 4PIN

...

Part	Polarization	Ripple Current @ High Frequency	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Package / Case	Lead Spacing	Lead Spacing	Tolerance	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Voltage - Rated	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]
KEMET ALF20C102DF250	Polar	4.75 A	General Purpose	2.047 in	52 mm	1000 µF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	15000 Hrs	1.378 "	35 mm	Press-Fit Through Hole	163 mOhm	3.26 A	250 V	106 mOhms	85 °C	-40 C
KEMET ALF20C151EB600	Polar	3.74 A	General Purpose			150 µF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	18000 Hrs	1.575 in	40 mm	Press-Fit Through Hole	868.8 mOhm	1.67 A	600 V	600.4 mOhms	85 °C	-40 C	1.26 in	32 mm
KEMET ALF20C272DC100	Polar	4.37 A	General Purpose			2700 µF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	15000 Hrs	1.378 "	35 mm	Press-Fit Through Hole	92 mOhm	3.57 A	100 V	69 mOhms	85 °C	-40 C	1.457 in		37 mm
KEMET ALF20C562EF100	Polar	6.68 A	General Purpose	2.047 in	52 mm	5.6 mF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	18000 Hrs	1.575 in	40 mm	Press-Fit Through Hole	59 mOhm	6.41 A	100 V	51 mOhms	85 °C	-40 C
KEMET ALF20C332EL200	Polar	9.17 A	General Purpose		3.228 in	3.3 mF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	18000 Hrs	1.575 in	40 mm	Press-Fit Through Hole	46 mOhm	7.83 A	200 VDC	37 mOhms	85 °C	-40 C				82 mm
KEMET ALF20C391DH500	Polar	4.67 A	General Purpose	2.441 in		390 µF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	15000 Hrs	1.378 "	35 mm	Press-Fit Through Hole	355 mOhm	2.87 A	500 V	258 mOhms	85 °C	-40 C			62 mm
KEMET ALF20C392EP250	Polar	11.71 A	General Purpose	4.213 in	107 mm	3900 µF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	18000 Hrs	1.575 in	40 mm	Press-Fit Through Hole	46 mOhm	7.78 A	250 V	32 mOhms	85 °C	-40 C
KEMET ALF20C222KP450	Polar	11.12 A	General Purpose	4.213 in	107 mm	2200 µF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	18000 Hrs	1.969 in	50 mm	Press-Fit Through Hole	70 mOhm	6.81 A	450 V	47 mOhms	85 °C	-40 C
KEMET ALF20C821DL400	Polar	6.09 A	General Purpose		3.228 in	820 µF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	15000 Hrs	1.378 "	35 mm	Press-Fit Through Hole	181 mOhm	3.7 A	400 V	127 mOhms	85 °C	-40 C				82 mm
KEMET ALF20C391EE450	Polar	5.53 A	General Purpose	1.85 in	47 mm	390 µF	Radial Can - Press-Fit - 4 Lead	0.886 in	22.5 mm	20 %	18000 Hrs	1.575 in	40 mm	Press-Fit Through Hole	293 mOhm	2.7 A	450 V	177 mOhms	85 °C	-40 C
