325-047 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 47POS 0.100

Part	Termination Rows	Material - Insulation	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Termination	Read Out	Number of Rows	Card Type	Mounting Type	Gender	Pitch	Pitch	Contact Type	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-047-540-101	1	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	0.25 Ám	10 Áin	47	Wire Wrap	Single	1	Non Specified - Single Edge	Through Hole	Female	0.1 "	2.54 mm	Cantilever	Copper Alloy	47	-65 ░C	125 °C	Gold	Green

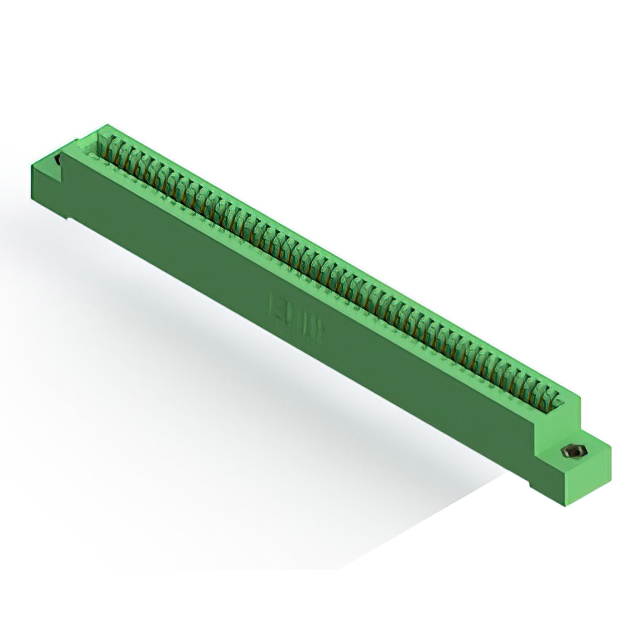

EDAC Inc. 325-047-500-108	1	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	0.25 Ám	10 Áin	47	Solder Eyelet(s)	Single	1	Non Specified - Single Edge	Through Hole	Female	0.1 "	2.54 mm	Cantilever	Copper Alloy	47	-65 ░C	125 °C	Gold	Green	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-047-540-109	1	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	0.25 Ám	10 Áin	47	Wire Wrap	Single	1	Non Specified - Single Edge	Through Hole	Female	0.1 "	2.54 mm	Cantilever	Copper Alloy	47	-65 ░C	125 °C	Gold	Green	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm
EDAC Inc. 325-047-500-107	1	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	0.25 Ám	10 Áin	47	Solder Eyelet(s)	Single	1	Non Specified - Single Edge	Through Hole	Female	0.1 "	2.54 mm	Cantilever	Copper Alloy	47	-65 ░C	125 °C	Gold	Green	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-047-520-101	1	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	0.25 Ám	10 Áin	47	Solder	Single	1	Non Specified - Single Edge	Through Hole	Female	0.1 "	2.54 mm	Cantilever	Copper Alloy	47	-65 ░C	125 °C	Gold	Green

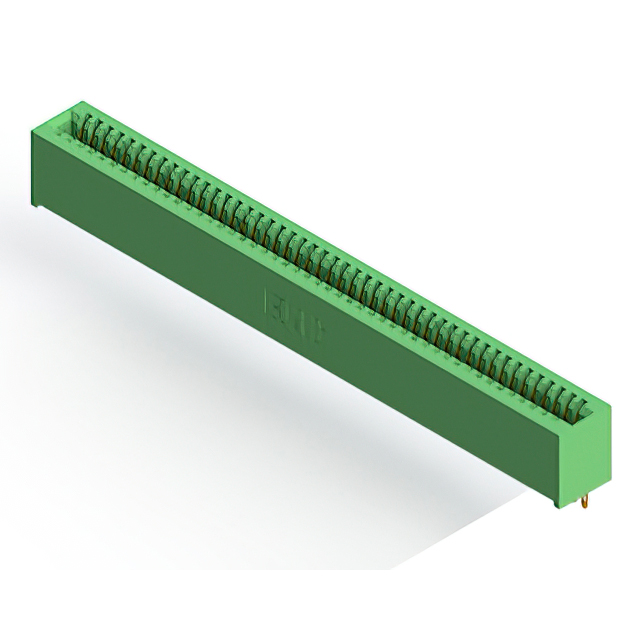

EDAC Inc. 325-047-500-101	1	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	0.25 Ám	10 Áin	47	Solder Eyelet(s)	Single	1	Non Specified - Single Edge	Through Hole	Female	0.1 "	2.54 mm	Cantilever	Copper Alloy	47	-65 ░C	125 °C	Gold	Green
