DKMW06 Series

Catalog

DC DC CONVERTER +/-12V 6W

Part	Voltage - Isolation	Approval Agency	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output 2	Voltage - Output 1	Efficiency	Package / Case	Type	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Current - Output (Max) [Min]

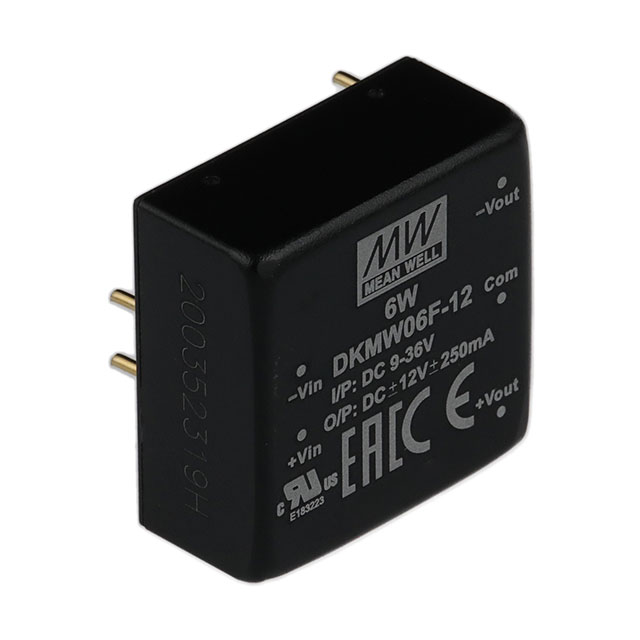

MEAN WELL USA Inc. DKMW06F-12	1.5 kV	CE cURus EAC	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	9 V	36 V	Through Hole	-12 V	12 V	85 %	5-DIP Module	Isolated Module	250 mA	-40 °C	85 °C	2	6 W
MEAN WELL USA Inc. DKMW06F-24	1.5 kV	CE cURus EAC	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	9 V	36 V	Through Hole	-24 V	24 V	85 %	5-DIP Module	Isolated Module	125 mA	-40 °C	85 °C	2	6 W
MEAN WELL USA Inc. DKMW06G-05	1.5 kV	CE cURus EAC	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	18 V	75 V	Through Hole	-5 V	5 V	81 %	5-DIP Module	Isolated Module		-40 °C	85 °C	2	6 W	600 mA	600 mA

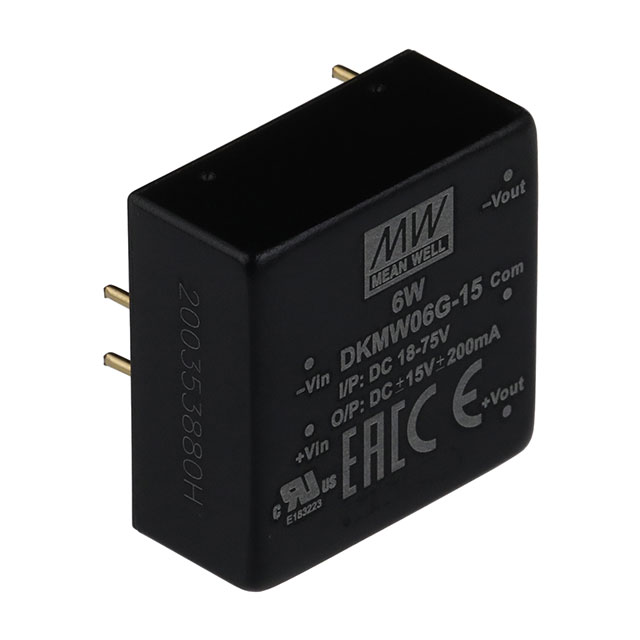

MEAN WELL USA Inc. DKMW06G-15	1.5 kV	CE cURus EAC	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	18 V	75 V	Through Hole	-15 V	15 V	86 %	5-DIP Module	Isolated Module		-40 °C	85 °C	2	6 W

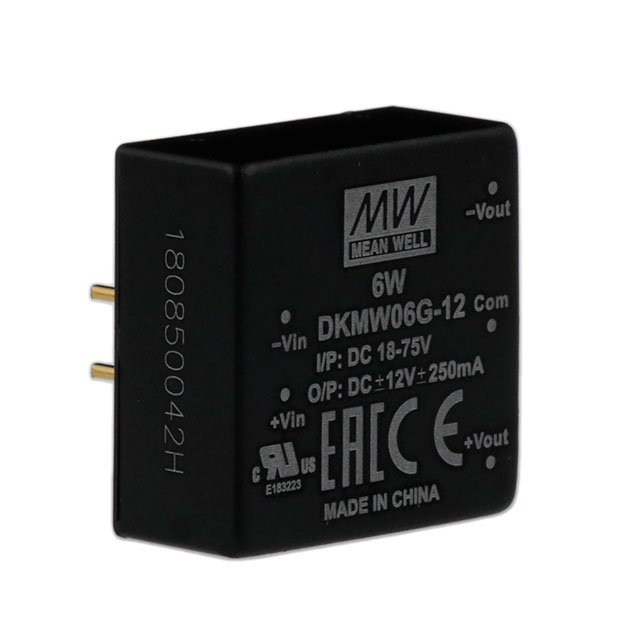

MEAN WELL USA Inc. DKMW06G-12	1.5 kV	CE cURus EAC	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	18 V	75 V	Through Hole	-12 V	12 V	85 %	5-DIP Module	Isolated Module	250 mA	-40 °C	85 °C	2	6 W

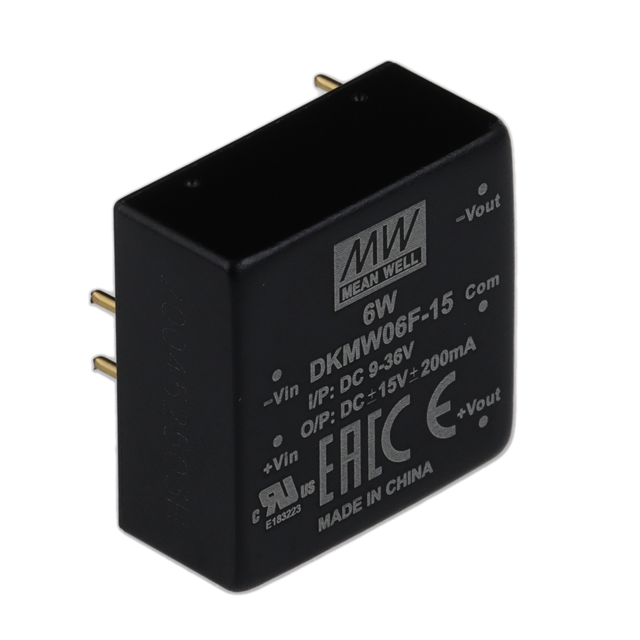

MEAN WELL USA Inc. DKMW06F-15	1.5 kV	CE cURus EAC	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	9 V	36 V	Through Hole	-15 V	15 V	85 %	5-DIP Module	Isolated Module		-40 °C	85 °C	2	6 W

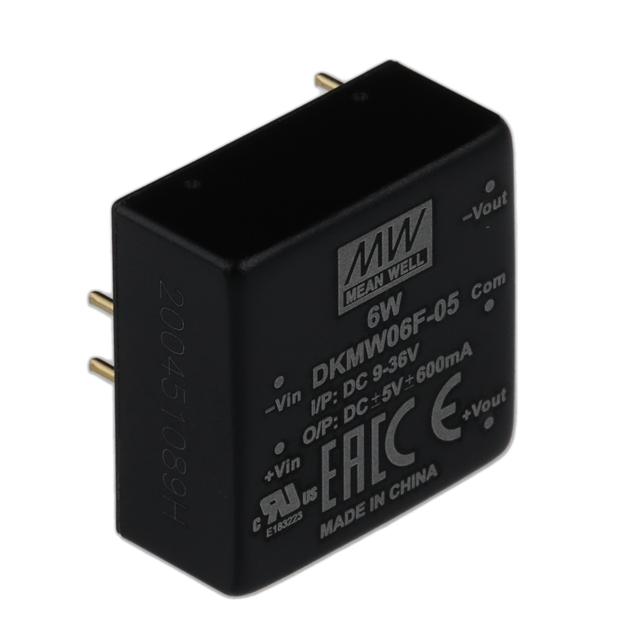

MEAN WELL USA Inc. DKMW06F-05	1.5 kV	CE cURus EAC	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	9 V	36 V	Through Hole	-5 V	5 V	81 %	5-DIP Module	Isolated Module		-40 °C	85 °C	2	6 W	600 mA	600 mA
