1064 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

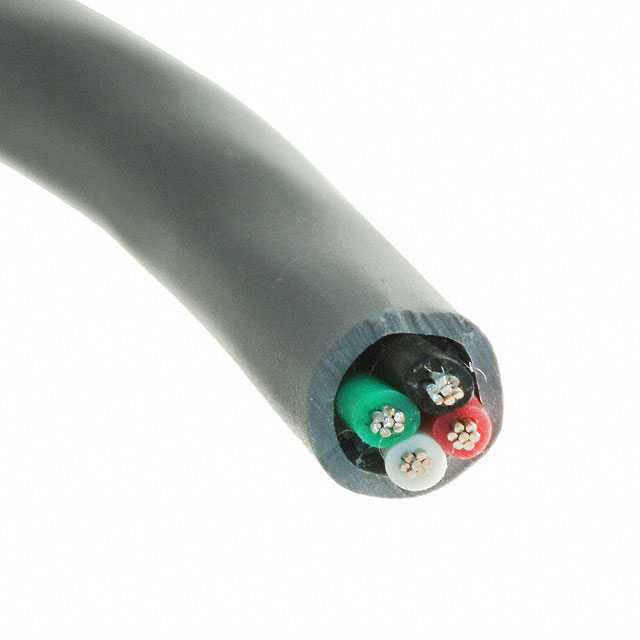

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 4 CONDUCTOR, 16 AWG, 1.31 MM², 500 FT, 152.4 M
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Number of Conductors | Jacket Color | Conductor Material | Jacket (Insulation) Material | Voltage | Wire Gauge | Usage | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.395 in | 10.03 mm | Poly-Vinyl Chloride (PVC) | 4 | Slate | Copper Tinned | Poly-Vinyl Chloride (PVC) | 600 V | 16 AWG | Communication Control | 152.4 m | 500 ft | 80 °C | -20 ░C | 19 | 0.0117 in | 1.194 mm | 0.047 in | Multi-Conductor |
 ALPHA WIRE | 0.395 in | 10.03 mm | Poly-Vinyl Chloride (PVC) | 4 | Slate | Copper Tinned | Poly-Vinyl Chloride (PVC) | 600 V | 16 AWG | Communication Control | 304.8 m | 1000 ft | 80 °C | -20 ░C | 19 | 0.0117 in | 1.194 mm | 0.047 in | Multi-Conductor |
