VLD1A60B Series

Catalog

ROCKER SWITCHES VLD1A60B-CMC00-000

Part	Mechanical Life	Electrical Life	Mounting Type	Actuator Type	Ingress Protection	Approval Agency	Actuator Marking	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Illumination Voltage (Nominal)	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Illumination Type, Color
Carling Technologies VLD1A60B-CMC00-000	100000 Cycles	100000 Cycles	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	IP66 IP68	CSA UL VDE	No Marking	12 V	20 A	Quick Connect - 0.250" (6.3mm)	12 VAC/DC	Black	DPDT	36.83 mm	21.08 mm	85 °C	-40 C	Mom-Off-Mom	Incandescent Red
Carling Technologies VLD1A60B-GPC87-100	100000 Cycles	100000 Cycles	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	IP66 IP68	CSA UL VDE	High Beam - Low Beam Vertical	12 V	20 A	Quick Connect - 0.250" (6.3mm)	12 VAC/DC	Black	DPDT	36.83 mm	21.08 mm	85 °C	-40 C	Mom-Off-Mom	Incandescent Red
Carling Technologies VLD1A60B-A9B00-000	100000 Cycles	100000 Cycles	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	IP66 IP68	CSA UL VDE	No Marking	12 V	20 A	Quick Connect - 0.250" (6.3mm)	12 VAC/DC	Black	DPDT	36.83 mm	21.08 mm	85 °C	-40 C	Mom-Off-Mom	Incandescent White

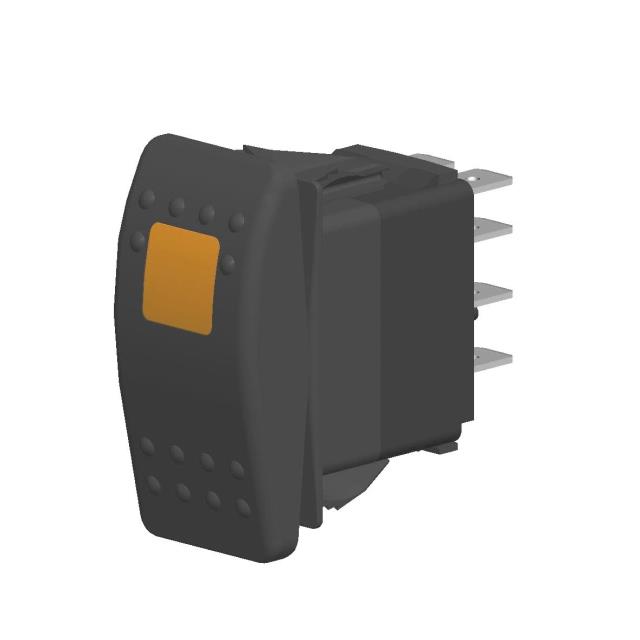

Carling Technologies VLD1A60B-AEC00-000	100000 Cycles	100000 Cycles	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	IP66 IP68	CSA UL VDE	No Marking	12 V	20 A	Quick Connect - 0.250" (6.3mm)	12 VAC/DC	Black	DPDT	36.83 mm	21.08 mm	85 °C	-40 C	Mom-Off-Mom	Amber Incandescent
Carling Technologies VLD1A60B-AKC00-000	100000 Cycles	100000 Cycles	Panel Mount Snap-In	Convex (Reverse V) - Illuminated	IP66 IP68	CSA UL VDE	No Marking	12 V	20 A	Quick Connect - 0.250" (6.3mm)	12 VAC/DC	Black	DPDT	36.83 mm	21.08 mm	85 °C	-40 C	Mom-Off-Mom	Green Incandescent
