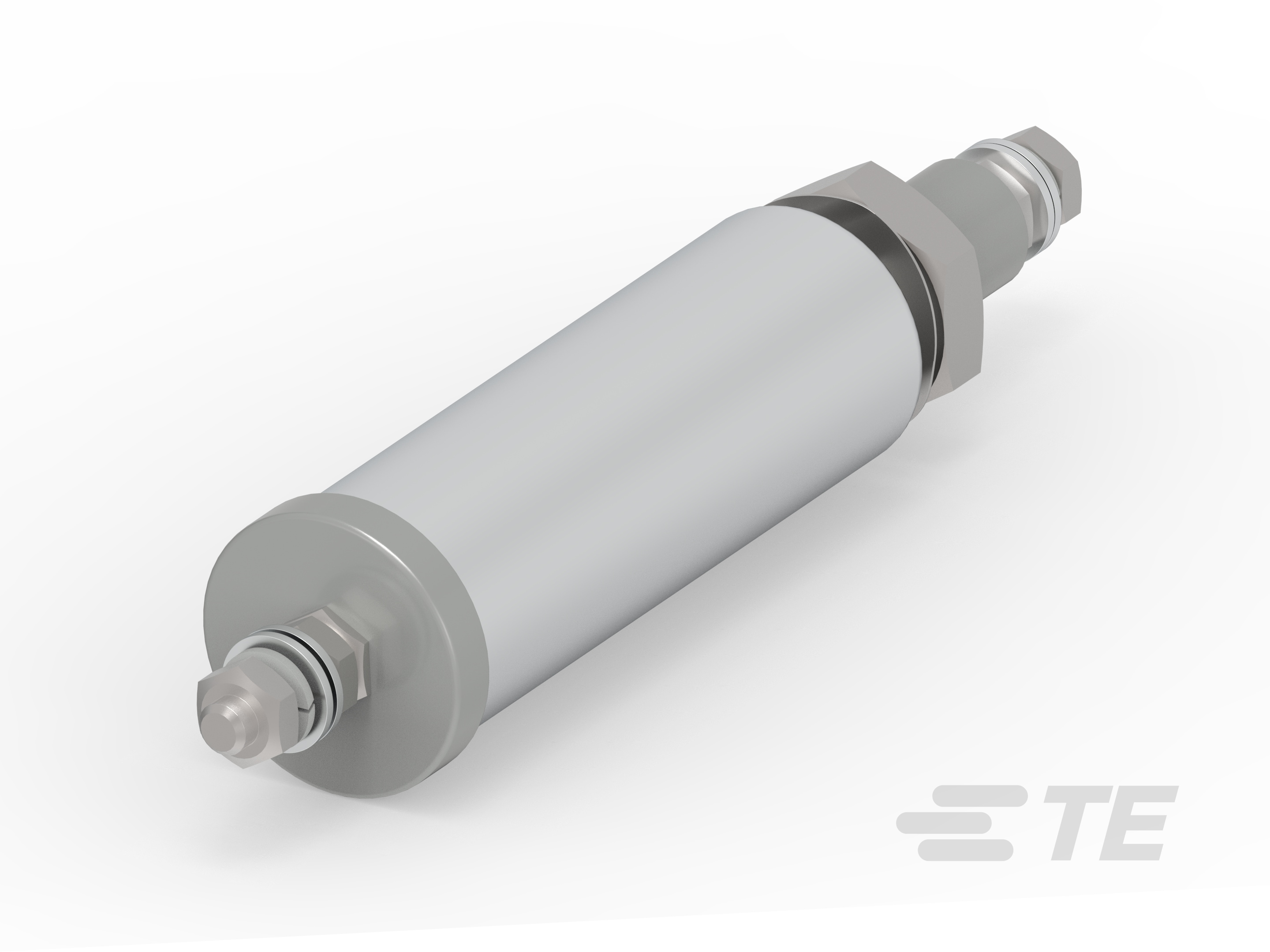

Schaffner FN766X Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

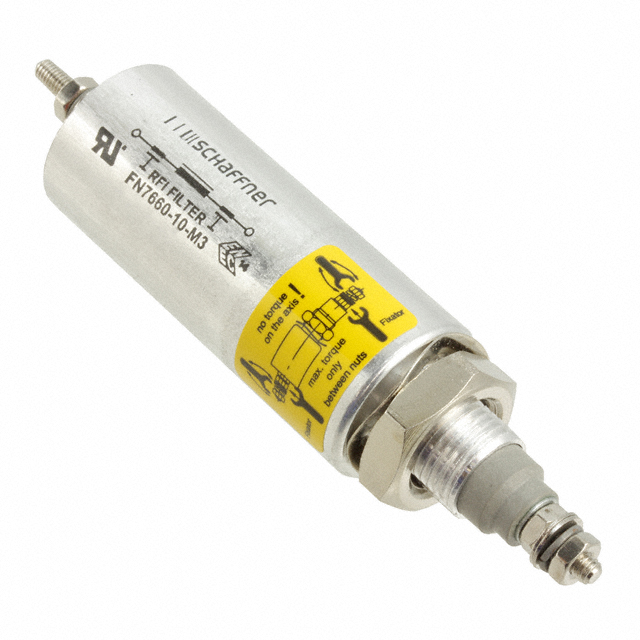

FILTER LC(PI) 58NH/10000PF BOLT

Part	Resistance - Channel (Ohms)	Mounting Type	Current	Applications	Voltage - Rated	Technology	Type	Filter Order	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case	Values [custom]	Values [custom]	Number of Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [diameter]	Values	Size / Dimension [z]	Size / Dimension [z]
TE Connectivity AMP Connectors FN7660-10-M3	0.00106 Ohms	Bolt Mount	10 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	0.787 " 20 mm	2.402 " 61 mm	Axial - Threaded Terminals	58 nH	10000 pF	1	-40 C	100 °C
TE Connectivity AMP Connectors FN7661-10-M3	0.0012 Ohms	Bolt Mount	10 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	20 mm	78 mm	Axial - Threaded Terminals			1	-40 C	100 °C	3.071 in	0.787 "	0.1 µF 70 nH
TE Connectivity AMP Connectors FN7660-200-M10	0.00024 Ohms	Bolt Mount	200 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	38 mm	150 mm	Axial - Threaded Terminals	124 nH	0.47 µF	1	-40 C	100 °C	5.906 in	1.496 in
TE Connectivity AMP Connectors FN7660-32-M4	0.00065 Ohms	Bolt Mount	32 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	20 mm	73 mm	Axial - Threaded Terminals			1	-40 C	100 °C	2.874 "	0.787 "	70 nH 10000 pF
TE Connectivity AMP Connectors FN7661-100-M8	0.00028 Ohms	Bolt Mount	100 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	32 mm	136 mm	Axial - Threaded Terminals			1	-40 C	100 °C	5.354 in	1.26 in	1 µF 186 nH
TE Connectivity AMP Connectors FN7661-100-M8	0.00028 Ohms	Bolt Mount	100 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	32 mm	136 mm	Axial - Threaded Terminals			1	-40 C	100 °C	5.354 in	1.26 in	1 µF 186 nH
TE Connectivity AMP Connectors FN7661-32-M4	0.0007 Ohms	Bolt Mount	32 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	20 mm	73 mm	Axial - Threaded Terminals			1	-40 C	100 °C	2.874 "	0.787 "	0.1 µF 70 nH
TE Connectivity AMP Connectors FN7660-100-M8	0.00025 Ohms	Bolt Mount	100 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	32 mm		Axial - Threaded Terminals	124 nH	0.47 µF	1	-40 C	100 °C		1.26 in		4.724 in	120 mm
TE Connectivity AMP Connectors FN7660-63-M6	0.00042 Ohms	Bolt Mount	63 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	25 mm	108 mm	Axial - Threaded Terminals			1	-40 C	100 °C	4.252 "	0.984 "	0.1 µF 70 nH
TE Connectivity AMP Connectors FN7660-10-M3	0.00106 Ohms	Bolt Mount	10 A	Data Lines for Mobile Devices	130 V	LC	Low Pass	3rd	0.787 " 20 mm	2.402 " 61 mm	Axial - Threaded Terminals	58 nH	10000 pF	1	-40 C	100 °C
