1092A Series

Manufacturer: Visual Communications Company - VCC

Catalog

PMI RND .5" LED CLR HI-DOME 28V

Part	Termination Style	Termination Style	Termination Style	Millicandela Rating	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Voltage	Current	Type	Lens Transparency	Lens Style	Panel Cutout Shape	Lens Size	Lens Size	Wavelength - Peak	Lens Color

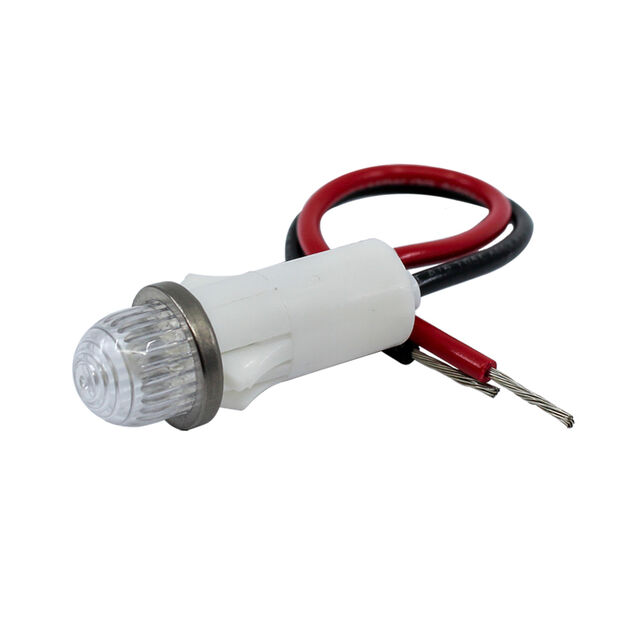

Visual Communications Company - VCC 1092A2-28V	121.92 mm	Wire Leads	4.8 in	7000 mcd	AC/DC	0.5 in	12.7 mm	Clear	28 V	25 mA	LED	Clear	Round with Domed Top	Round	5 mm	T-1 3/4	468 nm	Colorless

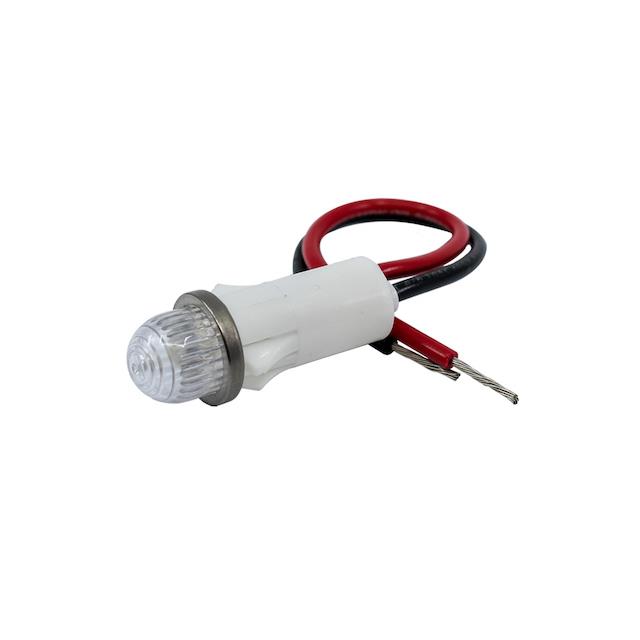

Visual Communications Company - VCC 1092A2-125VAC	121.92 mm	Wire Leads	4.8 in	7000 mcd	AC	0.5 in	12.7 mm	Clear	125 V	25 mA	LED	Diffused	Round with Domed Top	Round

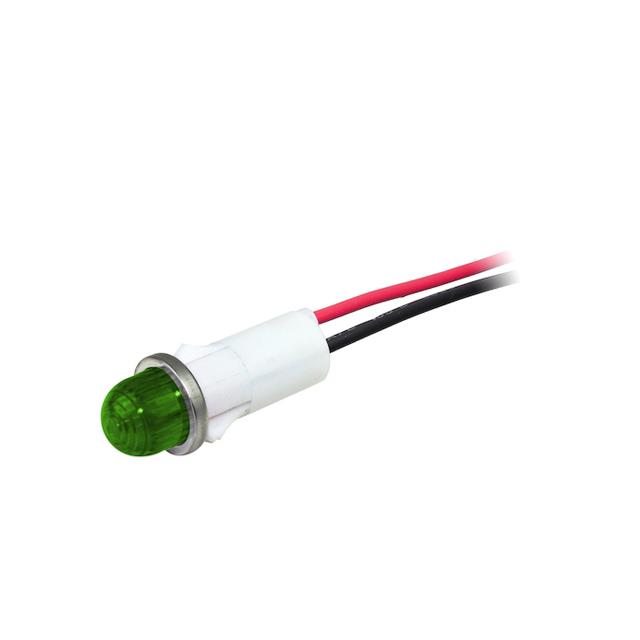

Visual Communications Company - VCC 1092A5-250VAC	121.92 mm	Wire Leads	4.8 in	12000 mcd	AC	0.5 in	12.7 mm	Green	250 VDC	25 mA	LED	Diffused	Round with Domed Top	Round				Green
Visual Communications Company - VCC 1092A3-28V		Wire Leads - 4.6" (116.84mm)		13000 mcd	DC	0.5 in	12.7 mm	Amber	28 V	25 mA	LED	Diffused	Round with Domed Top	Round				Amber
Visual Communications Company - VCC 1092A2-12V	121.92 mm	Wire Leads	4.8 in	7000 mcd	AC/DC	0.5 in	12.7 mm	Clear	12 V	25 mA	LED	Clear	Round with Domed Top	Round	5 mm	T-1 3/4	468 nm	Colorless
Visual Communications Company - VCC 1092A1-28V		Wire Leads - 4.6" (116.84mm)		13000 mcd	DC	0.5 in	12.7 mm	Red	28 V	25 mA	LED	Diffused	Round with Domed Top	Round				Red
Visual Communications Company - VCC 1092A3-12V		Wire Leads - 4.6" (116.84mm)		13000 mcd	DC	0.5 in	12.7 mm	Amber	12 V	25 mA	LED	Diffused	Round with Domed Top	Round				Amber

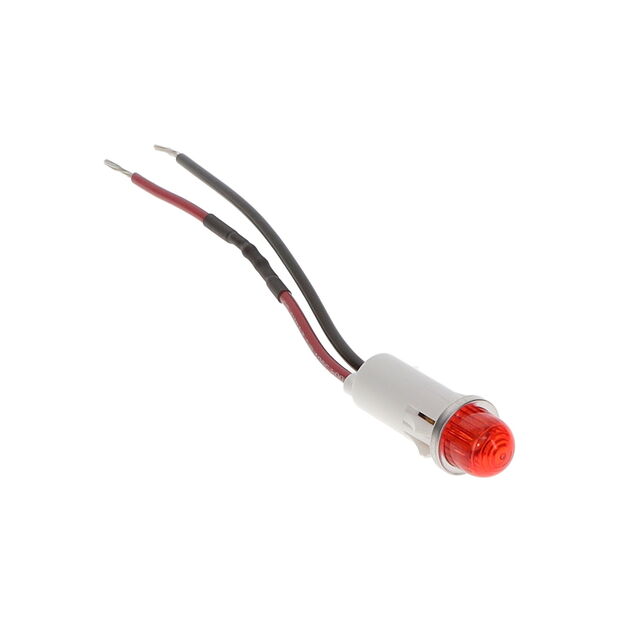

Visual Communications Company - VCC 1092A1-250VAC	121.92 mm	Wire Leads	4.8 in	13000 mcd	AC	0.5 in	12.7 mm	Red	250 VDC	25 mA	LED	Diffused	Round with Domed Top	Round				Red
Visual Communications Company - VCC 1092A2-250VAC	121.92 mm	Wire Leads	4.8 in	7000 mcd	AC	0.5 in	12.7 mm	Clear	250 VDC	25 mA	LED	Diffused	Round with Domed Top	Round
