9LRS3165 Series

64-Pin CK505 Compatible Clock with Fully Integrated Voltage Regulator + Integrated Series Resistor

Manufacturer: Renesas Electronics Corporation

Catalog

64-Pin CK505 Compatible Clock with Fully Integrated Voltage Regulator + Integrated Series Resistor

Part	Main Purpose	Package / Case [x]	Package / Case	Package / Case	Output	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Circuits	Differential - Input:Output	Supplier Device Package	Ratio - Input:Output	Input	Voltage - Supply [Max]	Voltage - Supply [Min]	PLL	Frequency - Max [Max]

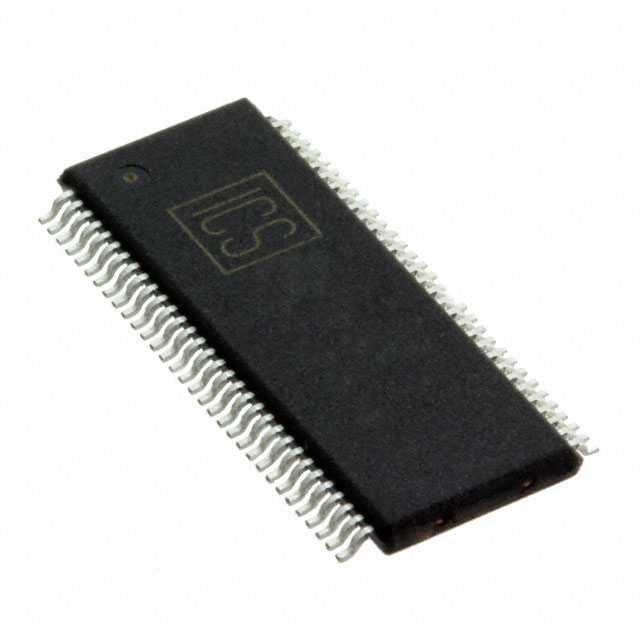

Renesas Electronics Corporation 9LRS3165BGLFT	Intel CPU Servers	0.24 in	6.1 mm	64-TFSOP	Clock	70 °C	0 °C	Surface Mount	1	No/Yes	64-TSSOP	1:21	Crystal	3.465 V	3.135 V		400 MHz

Catalog

64-Pin CK505 Compatible Clock with Fully Integrated Voltage Regulator + Integrated Series Resistor

Description

The 9LRS3165 is a CK505-compatible clock with fully integrated voltage regulator and internal series resistor on differential outputs. Output Features:
