DL64H Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

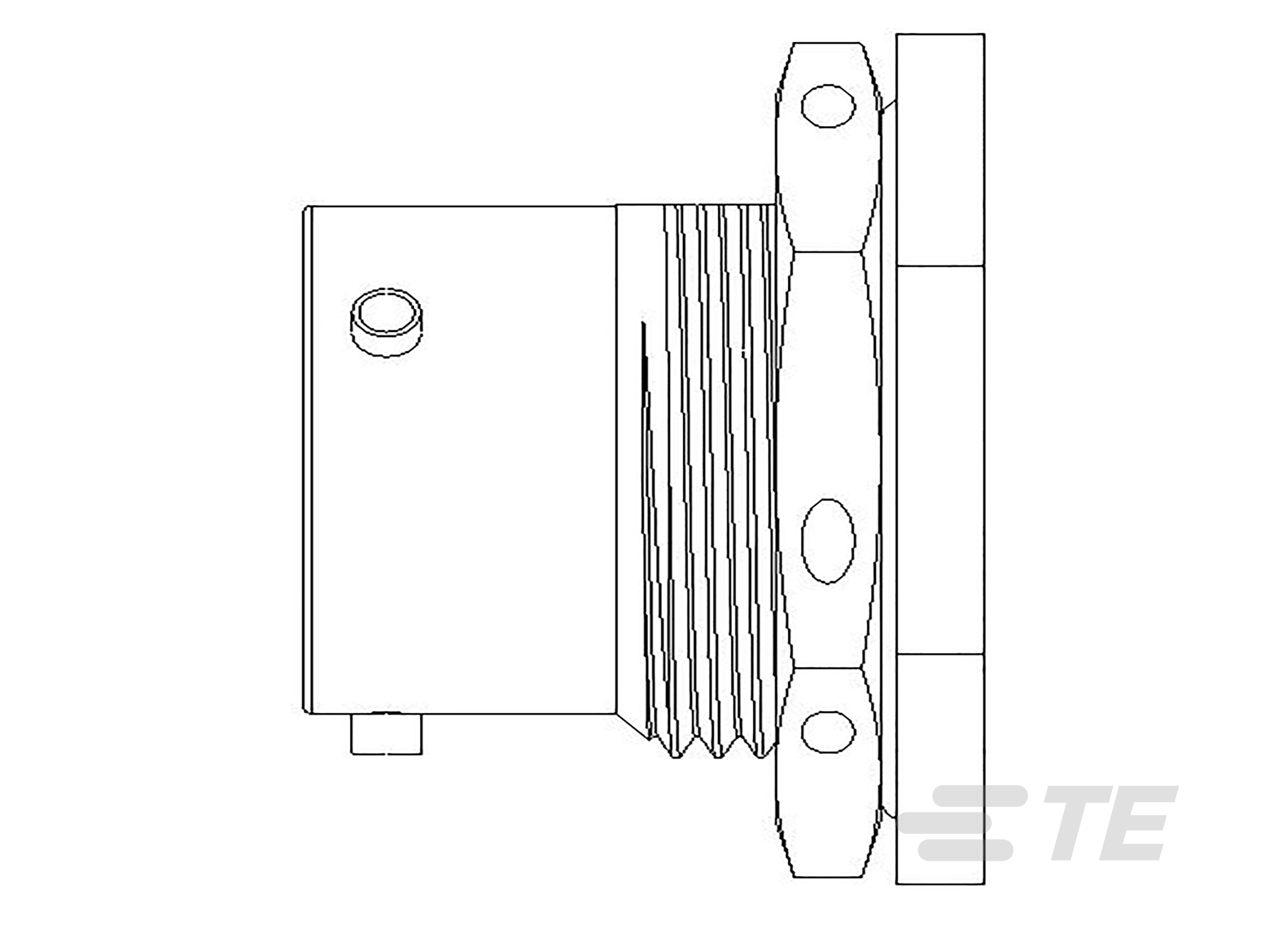

HERM RECP
| Part | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature | Mounting Type | Primary Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Shell Finish | Number of Positions | Termination | Qualification | Orientation | Contact Material | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Insert Material | Shell Material | Contact Finish - Mating | Connector Type | Applications | Fastening Type | Color | Number of Positions [custom] | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | 7.5 A | 50 µin | 1.27 µm | Bulkhead - Front Side Nut | Panel Mount | Metal | 12 | 12 | Tin | 12 | Crimp | MIL-DTL-83723 Series III | N (Normal) | Copper Alloy | Environment Resistant | -65 ░C | 200 °C | Unshielded | Plastic | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | |||
TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Panel Mount | Metal | 24 | 61 | Tin | 61 | MIL-DTL-83723 Series III | N (Normal) | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | |||||||
 TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Panel Mount | Metal | 12 | 12 | Tin | 12 | MIL-DTL-83723 Series III | N (Normal) | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | |||||||
TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Panel Mount | Metal | 18 | 31 | Tin | MIL-DTL-83723 Series III | N (Normal) | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | 31 | |||||||
TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Panel Mount | Metal | 22 | 55 | Tin | 55 | MIL-DTL-83723 Series III | N (Normal) | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | |||||||
TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Panel Mount | Metal | 22 | 55 | Tin | 55 | MIL-DTL-83723 Series III | N (Normal) | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | |||||||
 TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Panel Mount | Metal | 20 | 41 | Tin | 41 | MIL-DTL-83723 Series III | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | 8 | |||||||
TE Connectivity AMP Connectors | Panel Mount | Metal | 18 | 31 | Tin | MIL-DTL-83723 Series III | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | 31 | 6 | ||||||||
TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Panel Mount | Metal | 20 | 41 | Tin | 41 | MIL-DTL-83723 Series III | N (Normal) | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | |||||||
TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Panel Mount | Metal | 14 | 15 | Tin | 15 | MIL-DTL-83723 Series III | Nickel Iron Alloy | -65 ░C | 200 °C | Unshielded | Glass | Steel | Gold | Receptacle Male Pins | Aerospace | Bayonet Lock | Silver | 8 |
