86827 Series

Catalog

CONN HEADER VERT 8POS 2.54MM

Part	Contact Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Mounting Type	Overall Contact Length	Overall Contact Length	Termination	Contact Finish - Post	Insulation Height	Insulation Height	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Contact Finish - Mating

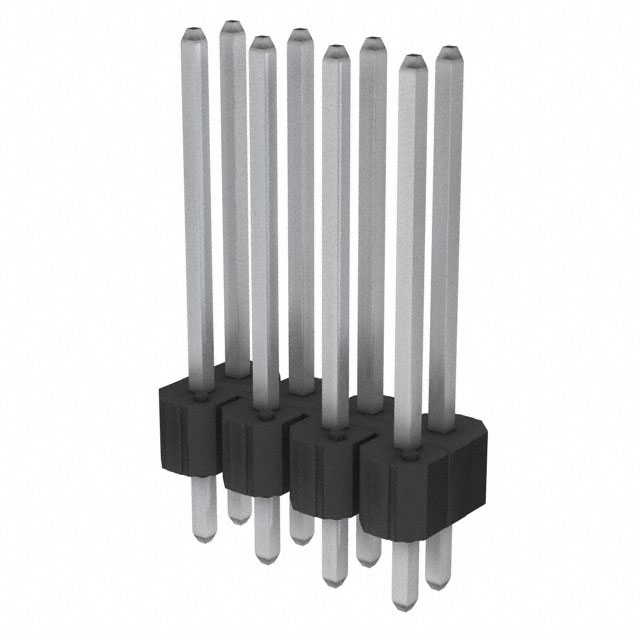

Amphenol ICC (FCI) 86827-408HLF	Male Pin	Black	2.54 mm	0.1 in	8	Through Hole	17.78 mm	0.7 in	Solder	Tin	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	UL94 V-0	2	All	Push-Pull	0.1 in	2.54 mm	Square	Phosphor Bronze	2.54 çm	100 çin	0.48 in	12.19 mm	Header

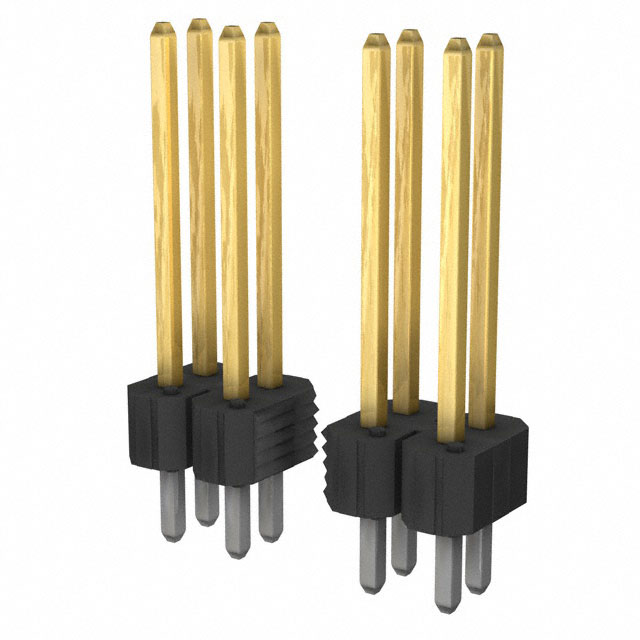

Amphenol ICC (FCI) 86827-272HLF	Male Pin	Black	2.54 mm	0.1 in	72	Through Hole	17.78 mm	0.7 in	Solder		0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	UL94 V-0	2	All	Push-Pull	0.1 in	2.54 mm	Square	Phosphor Bronze	0.38 µm	15 µin	0.48 in	12.19 mm	Header	Gold or Gold GXT™
Amphenol ICC (FCI) 86827-272H	Male Pin	Black	2.54 mm	0.1 in	72	Through Hole	17.78 mm	0.7 in	Solder		0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	UL94 V-0	2	All	Push-Pull	0.1 in	2.54 mm	Square	Phosphor Bronze	0.38 µm	15 µin	0.48 in	12.19 mm	Header	Gold or Gold GXT™
