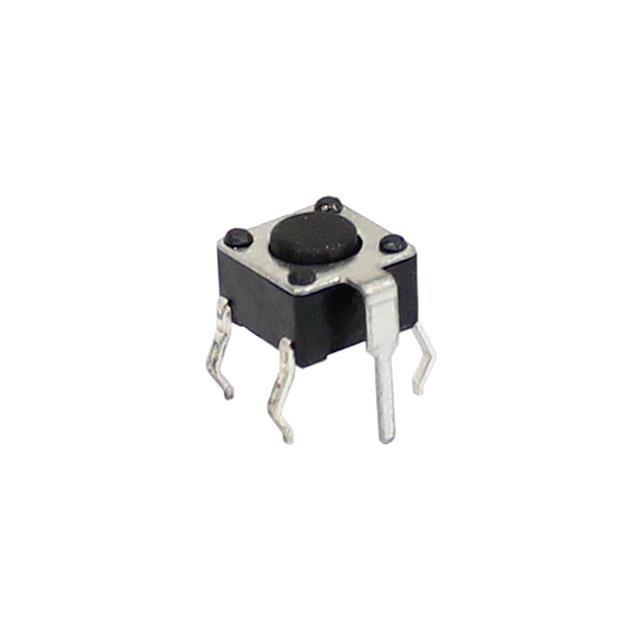

CT1102P4 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Outline [x]	Outline [y]	Mounting Type	Actuator Orientation	Termination Style	Actuator Height off PCB, Vertical [z]	Actuator Type	Illumination	Operating Force	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Contact Rating @ Voltage
CIT Relay and Switch CT1102P4.3F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6 mm	6 mm	Through Hole	Top Actuated	PC Pin	4.3 mm	Plunger for Cap	Non-Illuminated	100 gf	Off-Mom	85 °C	-40 C	SPST-NO	0.05 A 50 VDC
CIT Relay and Switch CT1102P4.3F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	6 mm	6 mm	Through Hole	Top Actuated	PC Pin	4.3 mm	Plunger for Cap	Non-Illuminated	160 gf	Off-Mom	85 °C	-40 C	SPST-NO	0.05 A 50 VDC
CIT Relay and Switch CT1102P4.3F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	6 mm	6 mm	Through Hole	Top Actuated	PC Pin	4.3 mm	Plunger for Cap	Non-Illuminated	260 gf	Off-Mom	85 °C	-40 C	SPST-NO	0.05 A 50 VDC
