TPS54060-EP Series

TPS54060-EP- 0.5-A, 60V Step Down DC/DC Converter with Eco-Mode

Catalog

TPS54060-EP- 0.5-A, 60V Step Down DC/DC Converter with Eco-Mode

Part	Voltage - Output (Min/Fixed)	Number of Outputs	Output Configuration	Package / Case	Topology	Output Type	Voltage - Input (Max) [Max]	Function	Voltage - Input (Min) [Min]	Frequency - Switching [Max]	Frequency - Switching [Min]	Mounting Type	Current - Output	Voltage - Output (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Output	Main Purpose	Utilized IC / Part	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Regulator Topology	Frequency - Switching	Qualification	Grade	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments TPS54060DRCR	0.8 V	1	Positive	10-VFDFN Exposed Pad	Buck Split Rail	Adjustable	60 V	Step-Down	3.5 V	2.5 MHz	100 kHz	Surface Mount	500 mA	58 V	10-VSON (3x3)	150 °C	-40 °C
Texas Instruments TPS54060ADGQR	0.8 V	1	Positive	10-MSOP 10-PowerTFSOP	Buck Split Rail	Adjustable	60 V	Step-Down	3.5 V	2.5 MHz	100 kHz	Surface Mount	500 mA	58 V	10-HVSSOP	150 °C	-40 °C	0.118 in 3 mm

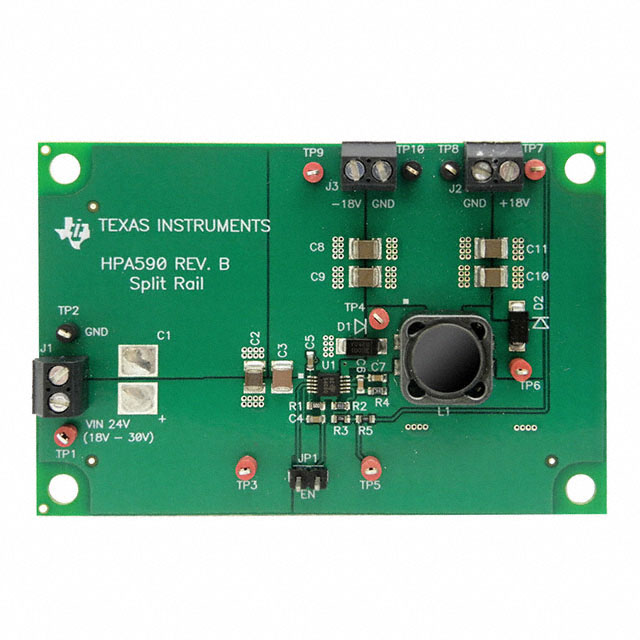

Texas Instruments TPS54060EVM-590													100 mA						18 V	DC/DC Positive and Negative	TPS54060	Board(s)	18 V	30 V	2	Non-Isolated	Fully Populated	Buck	300 kHz
Texas Instruments TPS54060ADGQ	0.8 V	1	Positive	10-MSOP 10-PowerTFSOP	Buck Split Rail	Adjustable	60 V	Step-Down	3.5 V	2.5 MHz	100 kHz	Surface Mount	500 mA	58 V	10-HVSSOP	150 °C	-40 °C	0.118 in 3 mm
Texas Instruments TPS54060ADRCR	0.8 V	1	Positive	10-VFDFN Exposed Pad	Buck Split Rail	Adjustable	60 V	Step-Down	3.5 V	2.5 MHz	100 kHz	Surface Mount	500 mA	58 V	10-VSON (3x3)	150 °C	-40 °C

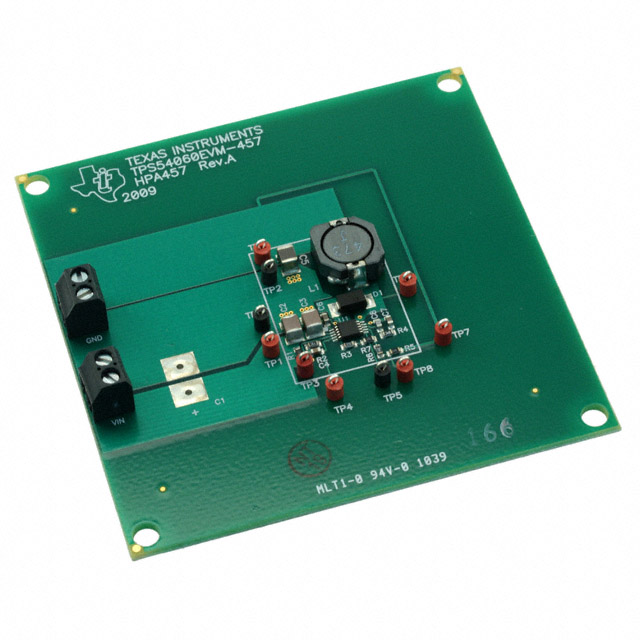

Texas Instruments TPS54060EVM-457													500 mA						3.3 V	DC/DC Step Down	TPS54060	Board(s)	12 V	48 V	1	Non-Isolated	Fully Populated	Buck	500 kHz
Texas Instruments TPS54060DRCT	0.8 V	1	Positive	10-VFDFN Exposed Pad	Buck Split Rail	Adjustable	60 V	Step-Down	3.5 V	2.5 MHz	100 kHz	Surface Mount	500 mA	58 V	10-VSON (3x3)	150 °C	-40 °C
Texas Instruments TPS54060QDRCRQ1	0.8 V	1	Positive	10-VFDFN Exposed Pad	Buck Split Rail	Adjustable	60 V	Step-Down	3.5 V	2.5 MHz	100 kHz	Surface Mount	500 mA	58 V	10-VSON (3x3)	150 °C	-40 °C													AEC-Q100	Automotive
Texas Instruments TPS54060DGQ	0.8 V	1	Positive	10-MSOP 10-PowerTFSOP	Buck Split Rail	Adjustable	60 V	Step-Down	3.5 V	2.5 MHz	100 kHz	Surface Mount	500 mA	58 V	10-HVSSOP	150 °C	-40 °C	0.118 in 3 mm
Texas Instruments TPS54060MDGQTEP	0.8 V	1	Positive	10-MSOP 10-PowerTFSOP	Buck Split Rail	Adjustable	60 V	Step-Down	3.5 V	2.5 MHz	100 kHz	Surface Mount	500 mA	58 V	10-HVSSOP			0.118 in 3 mm														125 °C	-55 °C

Catalog

TPS54060-EP- 0.5-A, 60V Step Down DC/DC Converter with Eco-Mode

Key Features

• 3.5- to 60-V Input Voltage Range200-mΩ High-Side MOSFETHigh Efficiency at Light Loads With a PulseSkipping Eco-Mode™116-µA Operating Quiescent Current1.3-µA Shutdown Current100-kHz to 2.5-MHz Switching FrequencySynchronizes to External ClockAdjustable Slow Start/SequencingUV and OV Power Good OutputAdjustable UVLO Voltage and Hysteresis0.8-V Internal Voltage ReferenceMSOP10 Package With PowerPADSupported by SwitcherPro™ Software Tool(http://focus.ti.com/docs/toolsw/folders/print/switcherpro.html)Supports Defense, Aerospace, and Medical ApplicationsControlled BaselineOne Assembly and Test SiteOne Fabrication SiteAvailable in Military (–55°C to 125°C)Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct Traceability3.5- to 60-V Input Voltage Range200-mΩ High-Side MOSFETHigh Efficiency at Light Loads With a PulseSkipping Eco-Mode™116-µA Operating Quiescent Current1.3-µA Shutdown Current100-kHz to 2.5-MHz Switching FrequencySynchronizes to External ClockAdjustable Slow Start/SequencingUV and OV Power Good OutputAdjustable UVLO Voltage and Hysteresis0.8-V Internal Voltage ReferenceMSOP10 Package With PowerPADSupported by SwitcherPro™ Software Tool(http://focus.ti.com/docs/toolsw/folders/print/switcherpro.html)Supports Defense, Aerospace, and Medical ApplicationsControlled BaselineOne Assembly and Test SiteOne Fabrication SiteAvailable in Military (–55°C to 125°C)Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct Traceability

Description

The TPS54060 device is a 60-V, 0.5-A, step-down regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116 µA. Using the enable pin, shutdown supply current is reduced to 1.3 µA, when the enable pin is low. VIN undervoltage lockout is internally set at 2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow start pin that can also be configured for sequencing/tracking. An open-drain power good signal indicates the output is within 94% to 107% of its nominal voltage. A wide switching frequency range allows efficiency and external component size to be optimized. Frequency fold back and thermal shutdown protects the part during an overload condition. The TPS54060 is available in 10-pin thermally enhanced HVSSOP PowerPAD™ package and 10-pin 3-mm × 3-mm VSON package. The TPS54060 device is a 60-V, 0.5-A, step-down regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116 µA. Using the enable pin, shutdown supply current is reduced to 1.3 µA, when the enable pin is low. VIN undervoltage lockout is internally set at 2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow start pin that can also be configured for sequencing/tracking. An open-drain power good signal indicates the output is within 94% to 107% of its nominal voltage. A wide switching frequency range allows efficiency and external component size to be optimized. Frequency fold back and thermal shutdown protects the part during an overload condition. The TPS54060 is available in 10-pin thermally enhanced HVSSOP PowerPAD™ package and 10-pin 3-mm × 3-mm VSON package.
