G3VM-10 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SSR RELAY SPST-NO 100MA 0-100V

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Package / Case [custom]	Package / Case	Output Type	Voltage - Load [Max]	Mounting Type	Load Current	On-State Resistance (Max) [Max]	Package / Case	Voltage - Input	Package / Case	Package / Case
Omron Electronics Inc-EMC Div G3VM-101UR(TR05)	4-VSON	85 °C	-40 °C	SMD (SMT) Tab	0.096 in 2.45 mm	4-SMD	AC DC	100 V	Surface Mount	100 mA	14 Ohm
Omron Electronics Inc-EMC Div G3VM-101HR2	6-SOP	85 °C	-40 °C	Gull Wing		6-SOP	AC DC	100 V	Surface Mount	3 A	65 mOhms	0.173 in 4.4 mm	1.65 VDC
Omron Electronics Inc-EMC Div G3VM-101HR1(TR05)	6-SOP	85 °C	-40 °C	Gull Wing		6-SOP	AC DC	100 V	Surface Mount	2 A	70 mOhm	0.173 in 4.4 mm	1.33 VDC

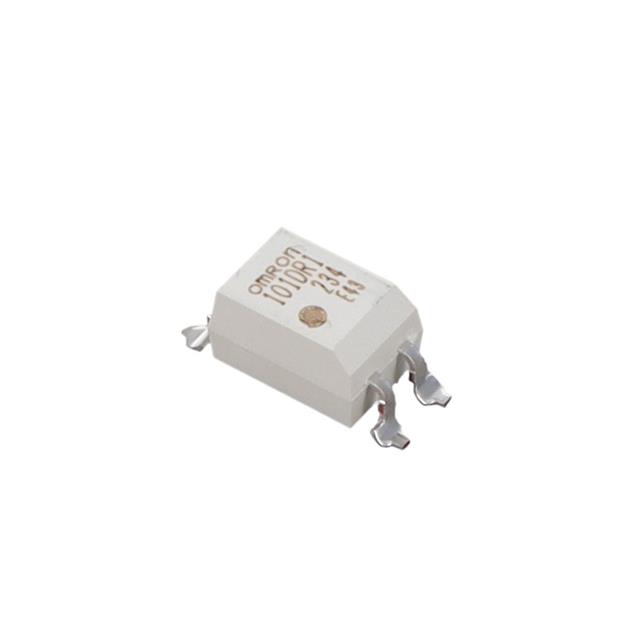

Omron Electronics Inc-EMC Div G3VM-101DR1	4-SMD	85 °C	-40 °C	Gull Wing		4-SMD	AC DC	100 V	Surface Mount	2 A	200 mOhms	0.3 in 7.62 mm	1.64 VDC
Omron Electronics Inc-EMC Div G3VM-101HR1	6-SOP	85 °C	-40 °C	Gull Wing		6-SOP	AC DC	100 V	Surface Mount	2 A	70 mOhm	0.173 in 4.4 mm	1.33 VDC
Omron Electronics Inc-EMC Div G3VM-101FR	8-SMD	85 °C 110 °C	-40 °C	Gull Wing		8-SMD	AC DC	100 V	Surface Mount	3 A	150 mOhms		1.64 VDC	7.62 mm	0.3 in
Omron Electronics Inc-EMC Div G3VM-101HR(TR)	6-SOP	85 °C	-40 °C	Gull Wing		6-SOP	AC DC	100 V	Surface Mount	1.4 A	200 mOhms	0.173 in 4.4 mm	1.33 VDC

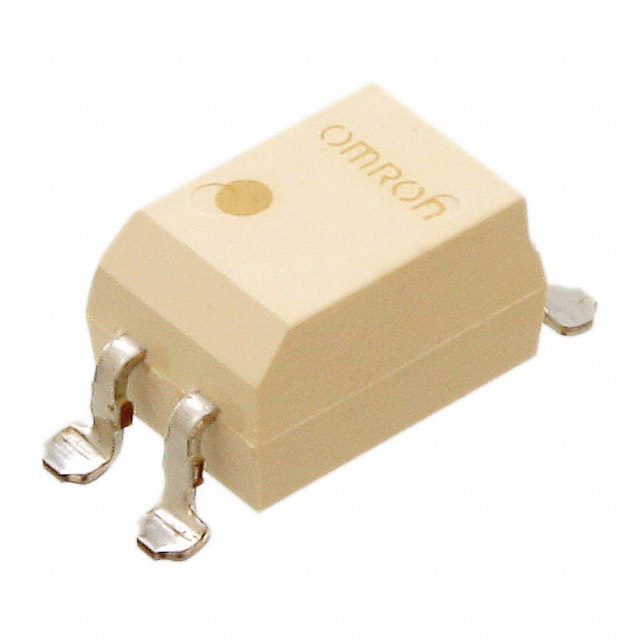

Omron Electronics Inc-EMC Div G3VM-101DR	4-SMD	110 °C	-40 °C	Gull Wing		4-SMD	AC DC	100 V	Surface Mount	1 A	700 mOhms	0.3 in 7.62 mm	1.33 VDC
Omron Electronics Inc-EMC Div G3VM-101AR1	4-DIP	85 °C	-40 °C	PC Pin		4-DIP (0.300" 7.62mm)	AC DC	100 V	Through Hole	2 A	200 mOhms		1.64 VDC
Omron Electronics Inc-EMC Div G3VM-101AR	4-DIP	85 °C	-40 °C	PC Pin		4-DIP (0.300" 7.62mm)	AC DC	100 V	Through Hole	1 A	700 mOhms		1.33 VDC
