833-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

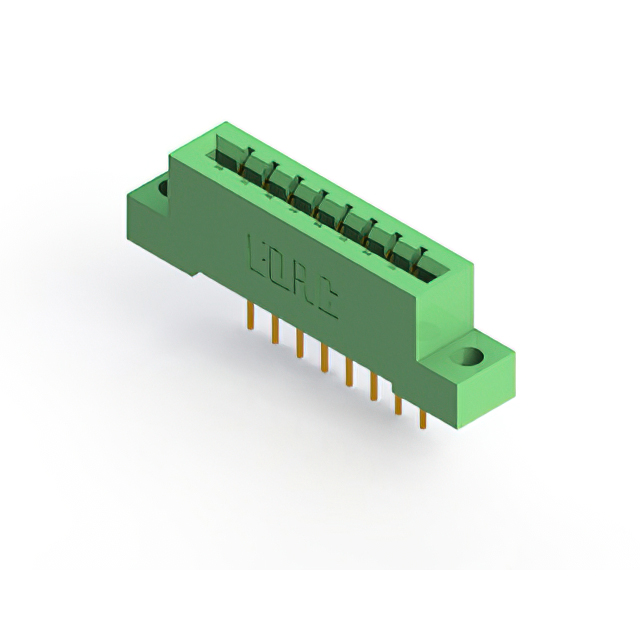

CONN EDGE SGL FMALE 8POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Type | Mounting Type | Number of Positions | Color | Number of Positions/Bay/Row | Number of Rows | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Read Out | Flange Feature | Card Type | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Termination | Gender | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Female | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | 0.156 " | 3.96 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | 0.128 " | 3.25 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | 0.156 " | 3.96 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Female | 0.116 " | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | 0.128 " | 3.25 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Cantilever | Through Hole | 8 | Green | 8 | 1 | 3.96 mm | 0.156 in | 125 °C | -40 C | 0.25 Ám | 10 Áin | Copper Alloy | Single | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | 0.156 " | 3.96 mm |
