PPPC181 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 18POS 0.1 GOLD PCB
| Part | Insulation Material | Contact Shape | Contact Material | Contact Finish Thickness - Post | Termination | Number of Rows | Number of Positions Loaded | Contact Finish - Post | Insulation Height | Insulation Height | Mounting Type | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Type | Voltage Rating | Contact Finish Thickness - Mating | Connector Type | Current Rating (Amps) | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

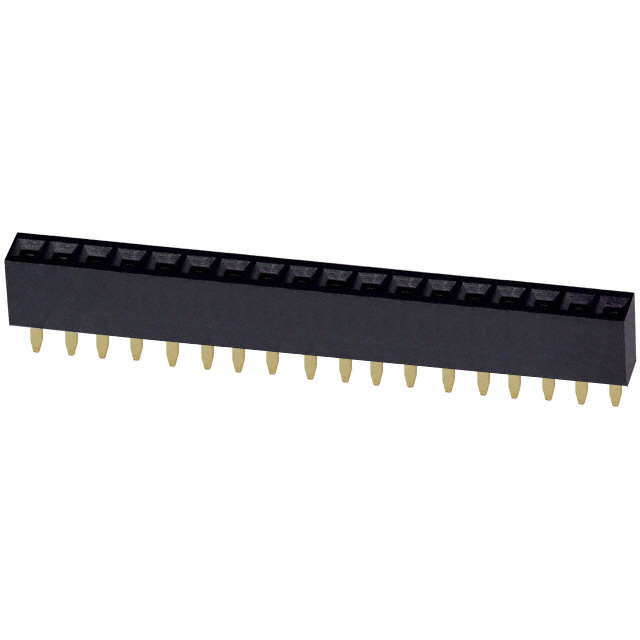

 Sullins Connector Solutions | Polyester | Square | Phosphor Bronze | Flash | Solder | 1 | All | Gold | 0.335 " | 8.51 mm | Through Hole | Push-Pull | 0.126 " | 3.2 mm | Black | 0.1 " | 2.54 mm | UL94 V-0 | 18 | -40 C | 105 ░C | Gold | Female Socket | 250 V | Flash | Header | 3 A | ||

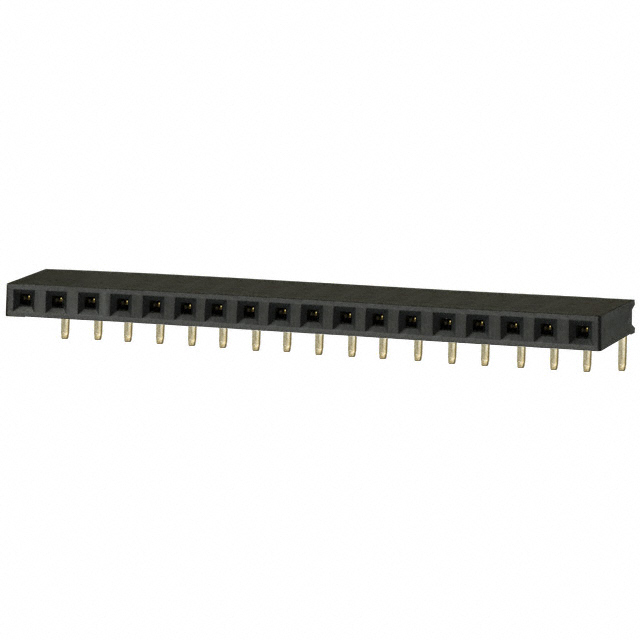

 Sullins Connector Solutions | Polyester | Square | Phosphor Bronze | Flash | Solder | 1 | All | Gold | 0.1 in | 2.54 mm | Right Angle Through Hole | Push-Pull | Black | 0.1 " | 2.54 mm | UL94 V-0 | 18 | -40 C | 105 ░C | Gold | Female Socket | 250 V | Flash | Header | 3 A | 0.124 in | 3.15 mm |
